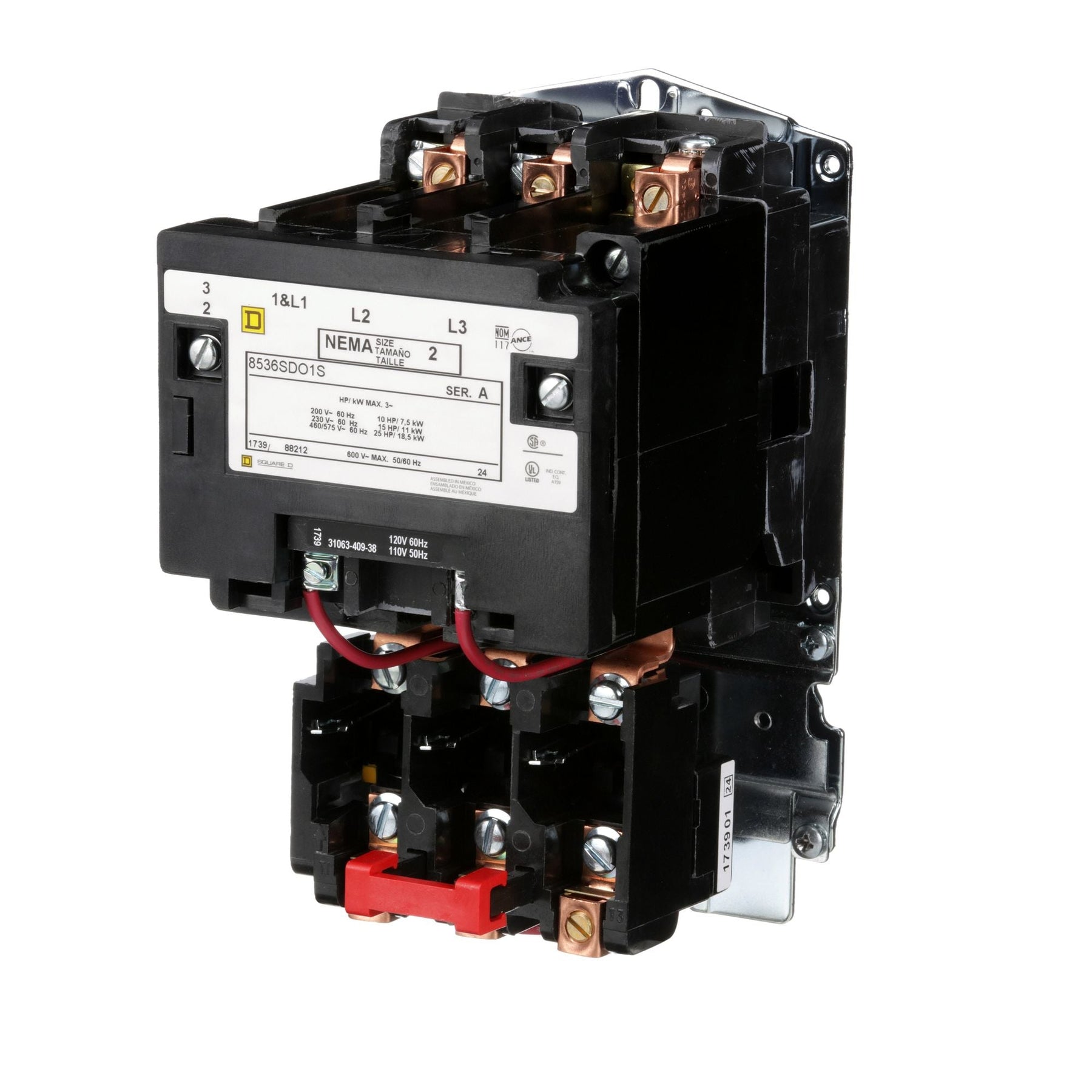

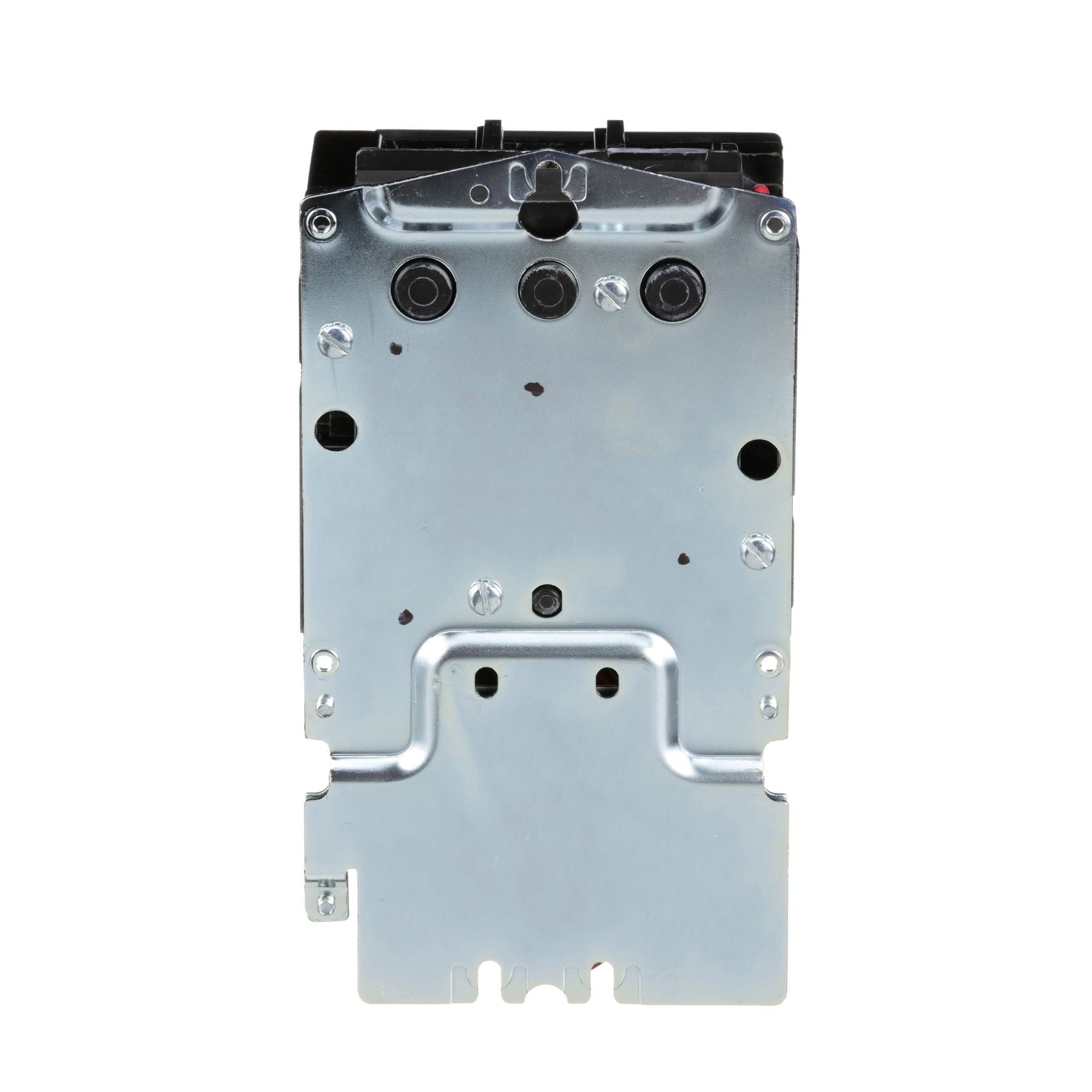

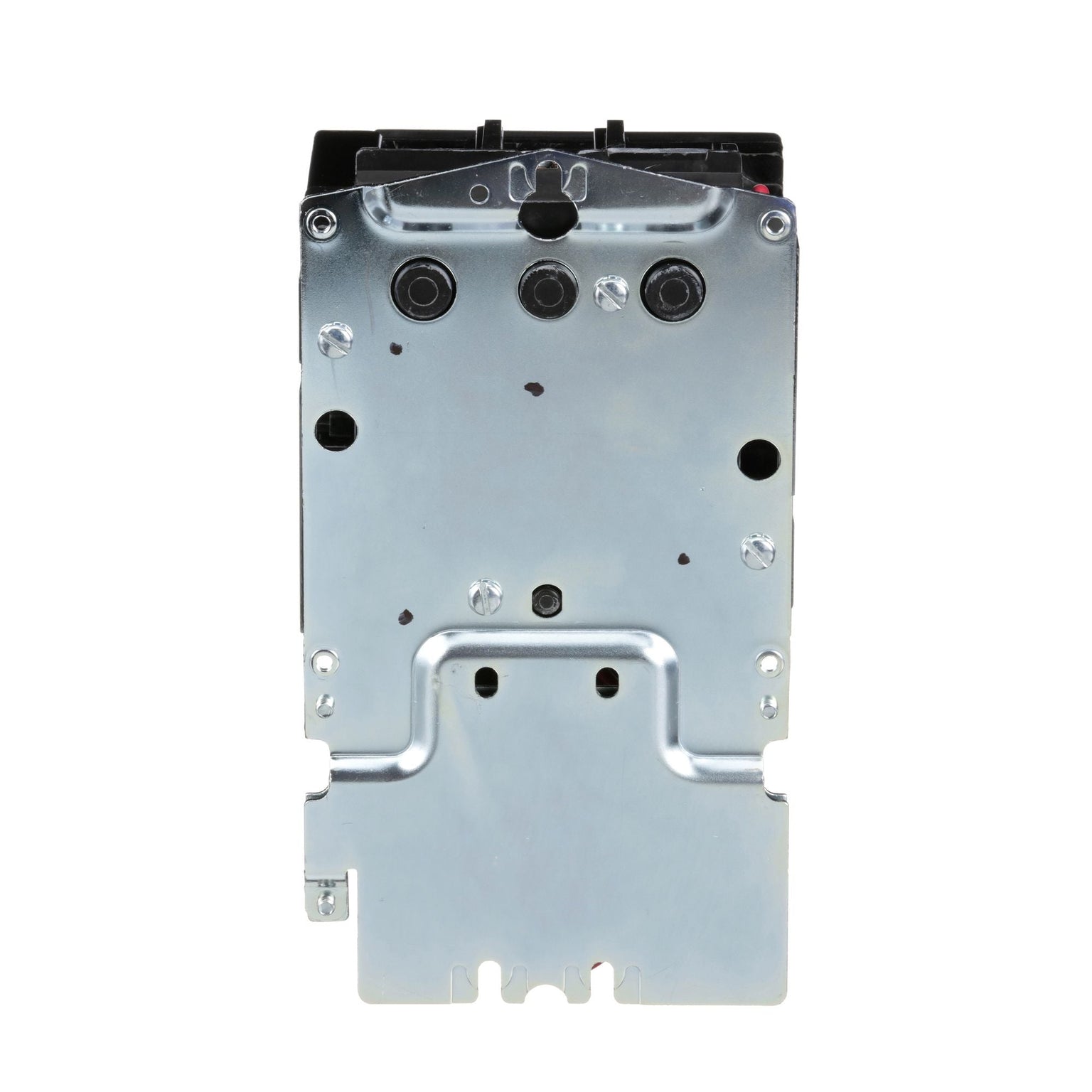

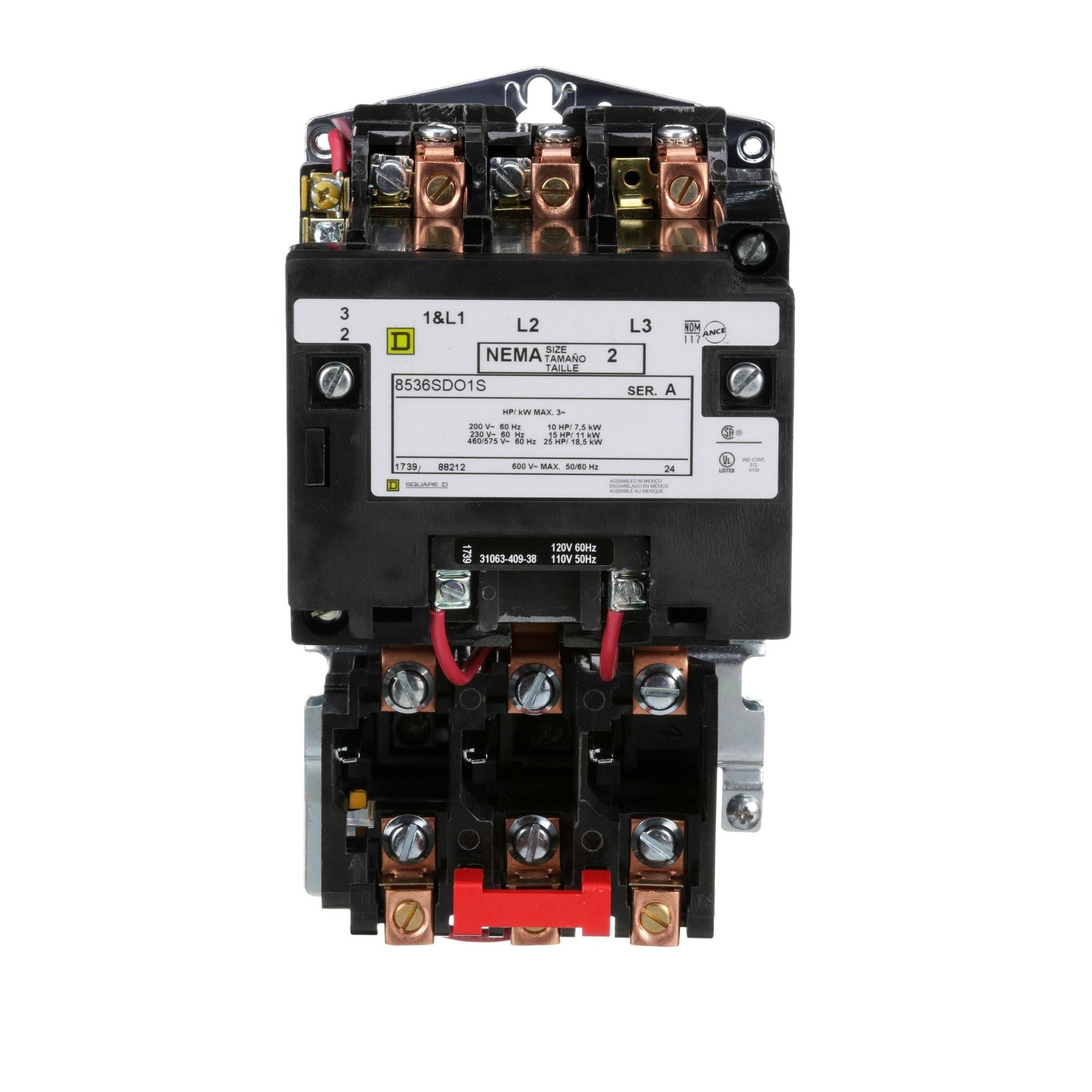

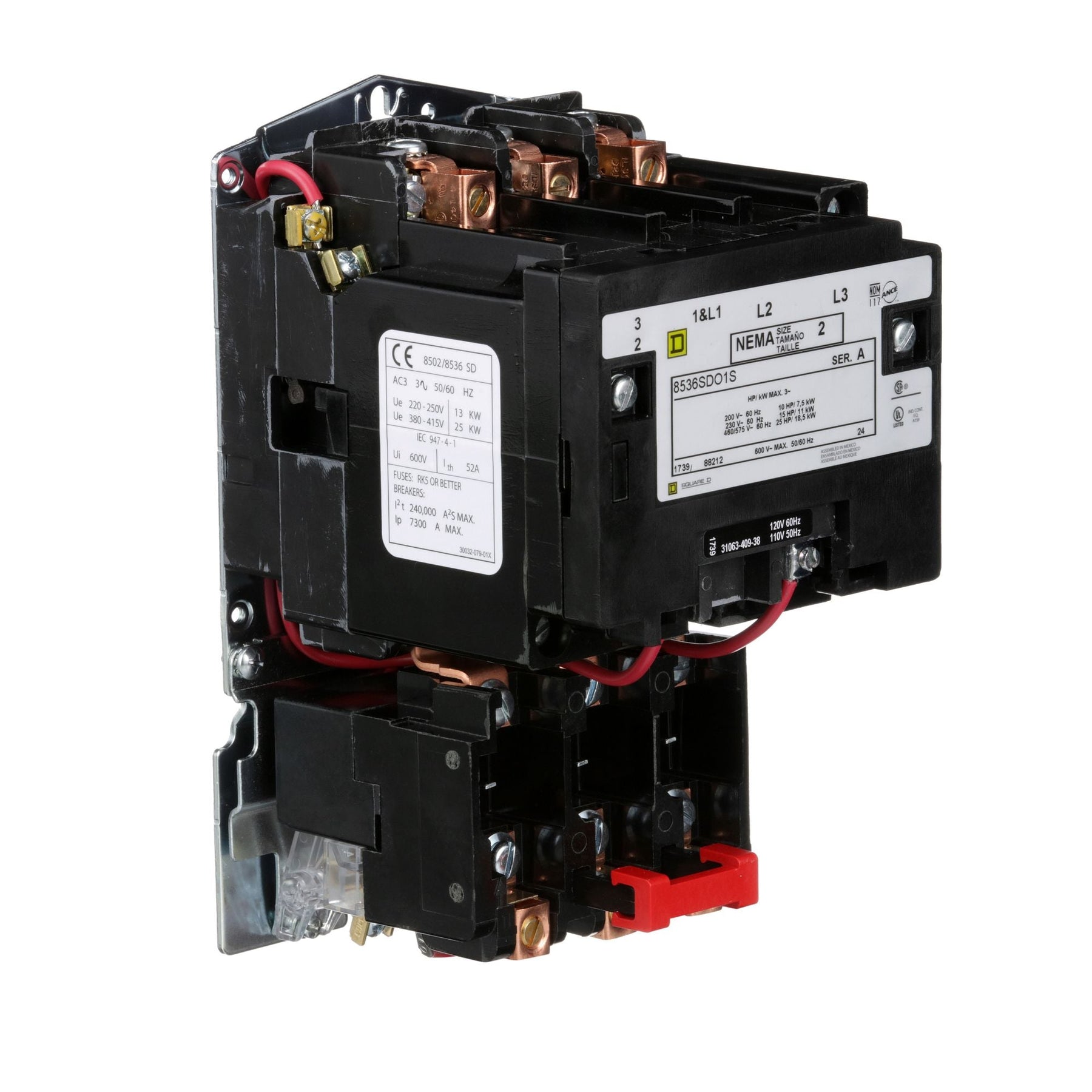

8536SDO1V06 - Square D Motor Starter
Schneider Electric / Square D Nema Starter features a three pole three phase 45 ampere Nema full voltage non reversing starter screw clamp connection and nema magnetic motor starters with standard overload relays full-voltage starters start and stop AC squirrel cage motors with overloads melting alloy.
Specifications:
- Product or component type: Starter
- Control Circuit Voltage: 440 V AC 50 Hz, 480 V AC 60 Hz
- Motor starter type: Non reversing
- Line Rated Current: 45 A
- Number of Poles: 3P
- Phase: 3 phases
- Horsepower Rating: 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC
- System Voltage: 600 V AC
- Control Units: No control units
- Thermal overload type: Melting alloy 3 Thermal Units
- Electrical connection: Screw clamp terminals
- NEMA size: 2

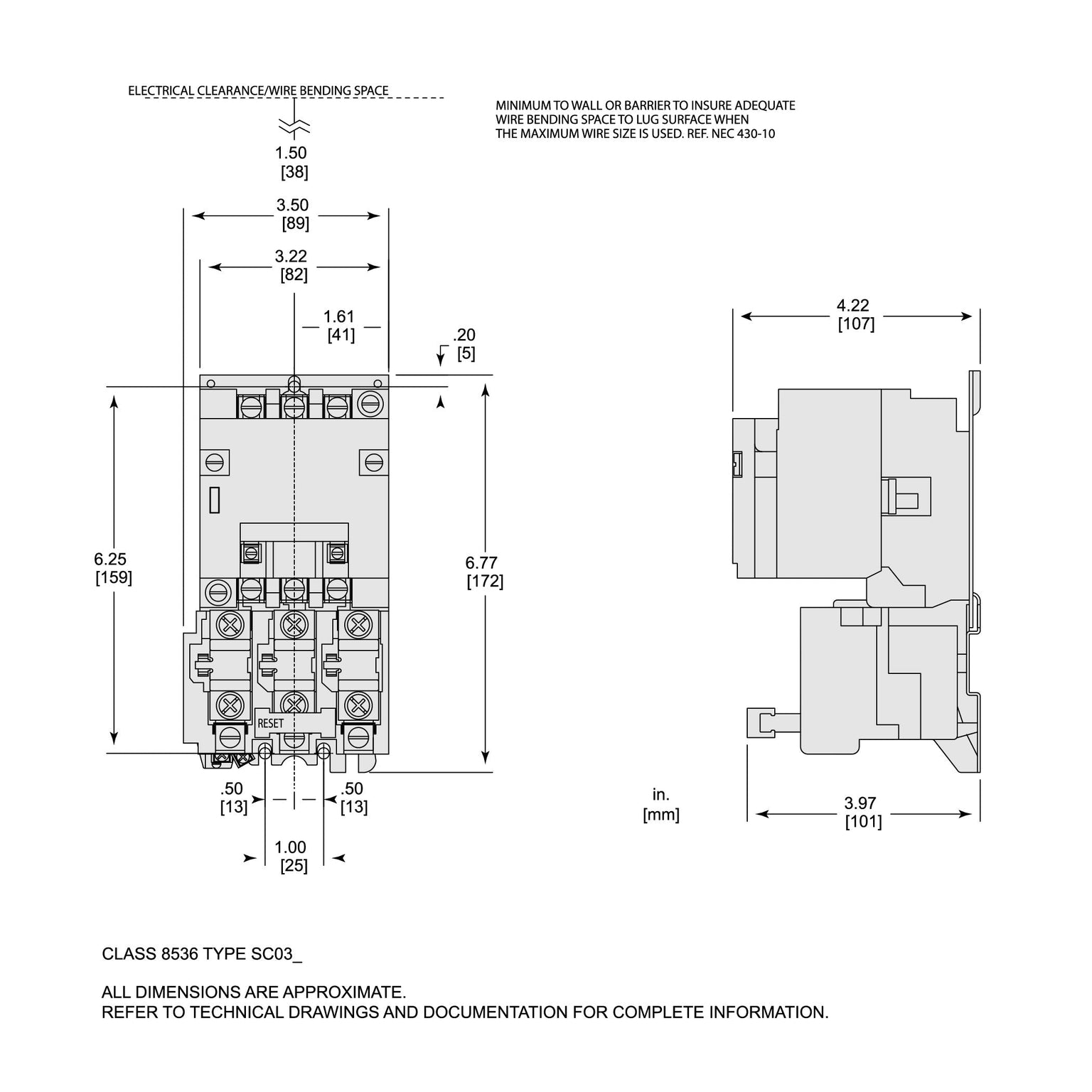

- Height: 7.8 in (198 mm)
- Depth: 4.92 in (125 mm)
- Width: 4.29 in (109 mm)
- Enclosure Type: Not rated (open device)
- Product certifications: CSA, NEMA, UL listed
- Authentic Square D Product
- Dimensions (H x W x L): 7.8" x 4.29" x 4.92"
