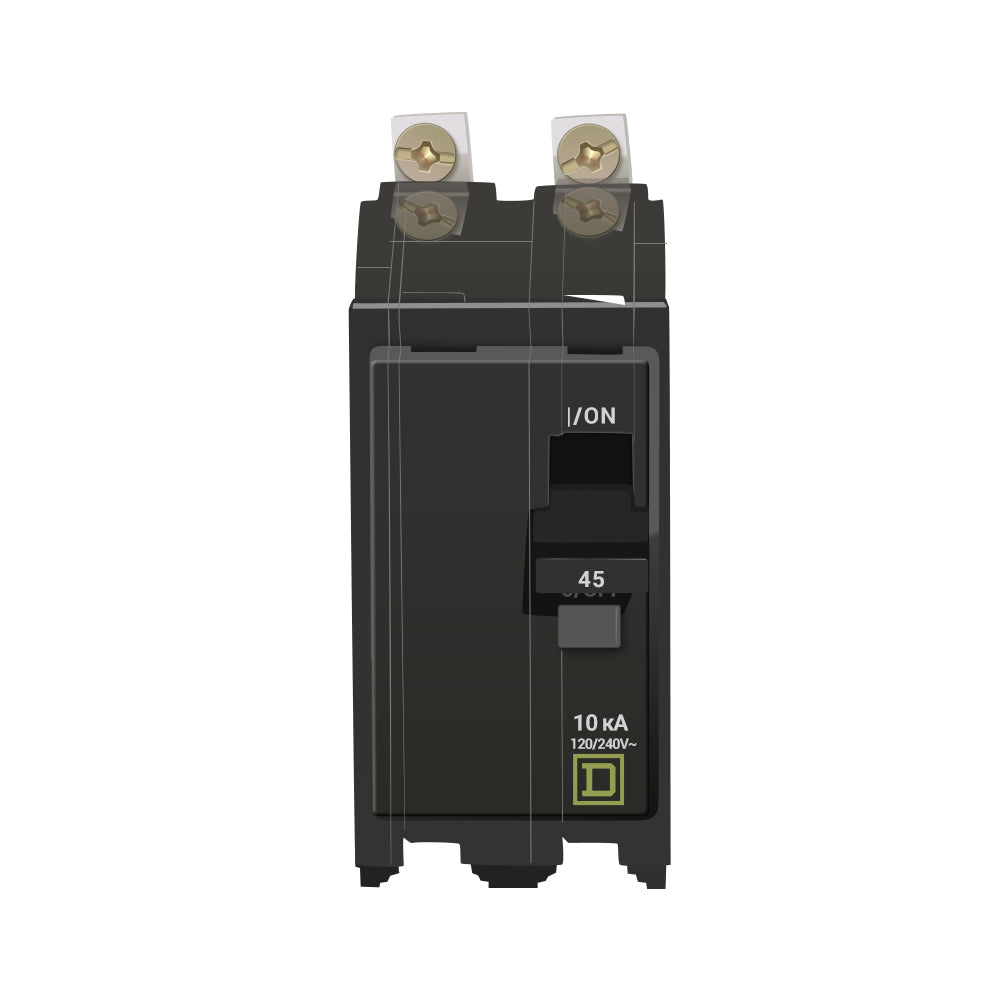

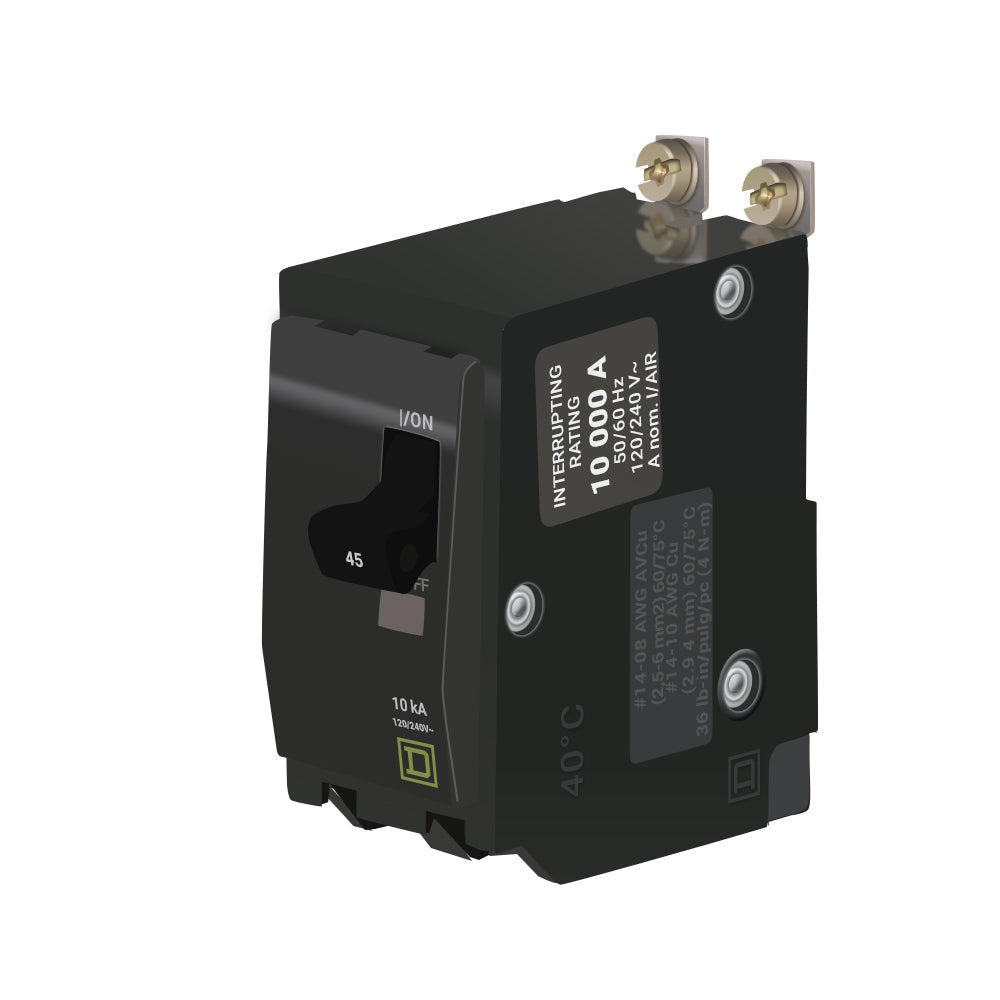

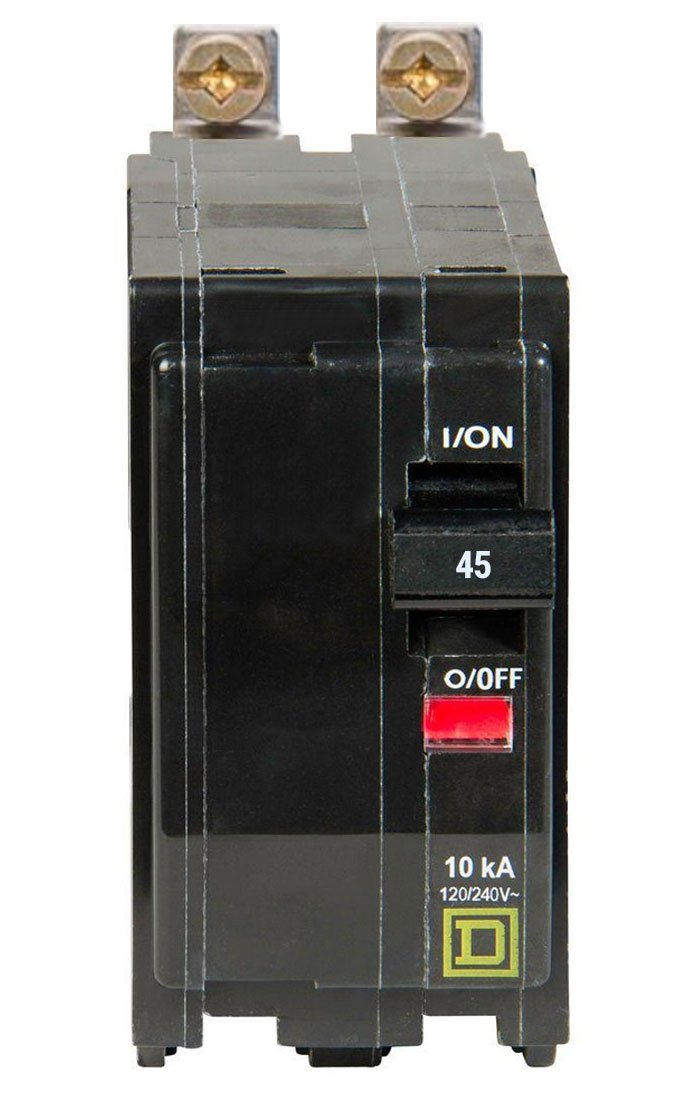

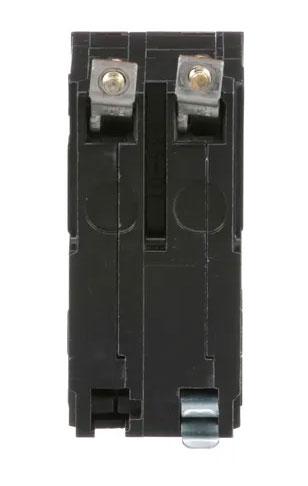

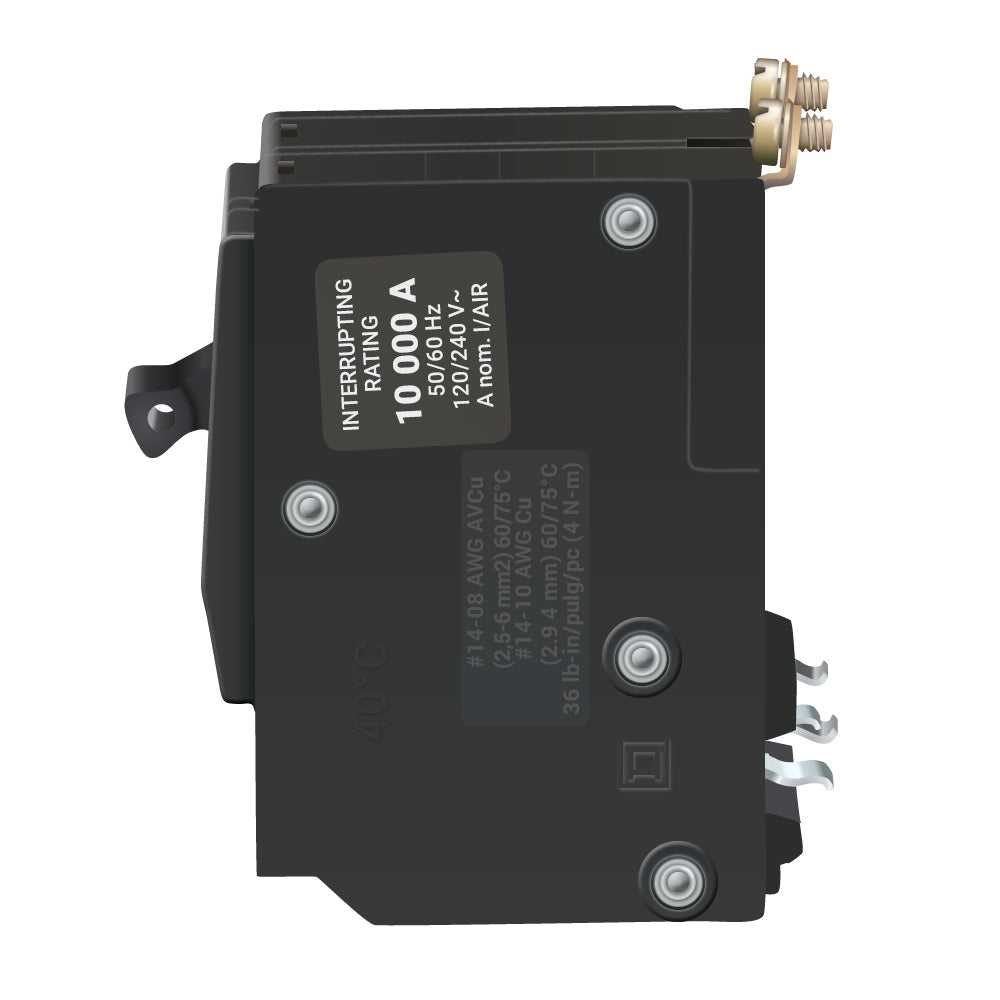

QOB245 - Square D - 45 Amp Circuit Breaker

Bolt-On - 45 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: qob245
QOB245 - Square D 45 Amp Double Pole Bolt-On Circuit Breaker
QOB245 - Square D - 45 Amp Circuit Breaker
QOB245 - Square D - 45 Amp Circuit Breaker
QOB245 - Square D 45 Amp Double Pole Bolt-On Circuit Breaker
QOB245 - Square D - 45 Amp Circuit Breaker
QOB245 - Square D 45 Amp Double Pole Bolt-On Circuit Breaker
QOB245 - Square D 45 Amp Double Pole Bolt-On Circuit Breaker

Images are for reference only

QOB245 - Square D - 45 Amp Circuit Breaker

Bolt-On - 45 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: qob245
Save $49.55
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

QOB245 - Square D Bolt-On 45 Amp Breaker

Schneider Electrric QOB series double pole single phase 45 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 45 A
  • System Voltage: 120 V AC, 120/240 V AC, 48 V DC
  • Mounting Type: Bolt-on
  • Number of Poles: 2P
  • Circuit Breaker Type: Standard
  • Ratings: HACR rated
  • Electrical Connection: Box lugs
  • Number of Panel Spaces: 2
  • Wire Size: AWG 8...AWG 2 (copper or aluminium)
  • Height: 3.12 in
  • Depth: 2.91 in
  • Width: 1.5 in
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Schneider Electric / Square D Product
  • Dimensions (H x W x L): 3.12" x 1.5" x 2.91"

Alt model: q0b245
