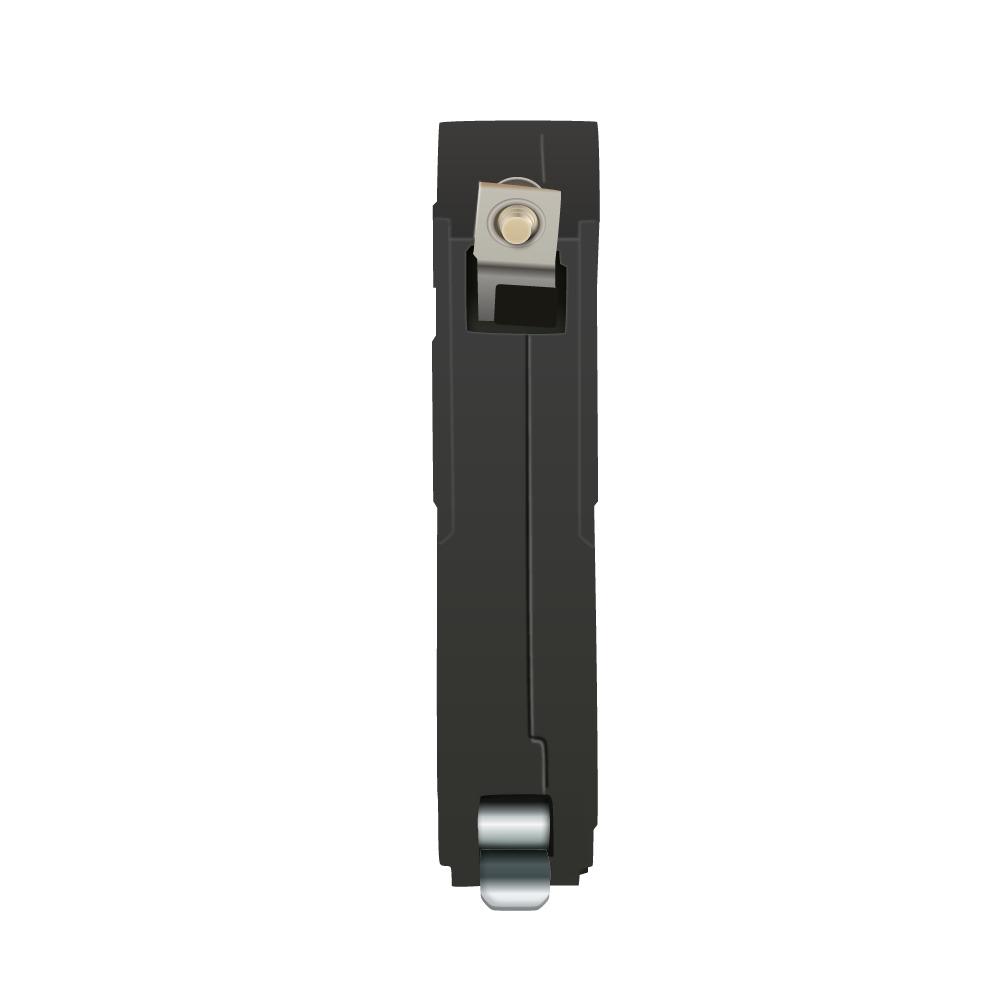

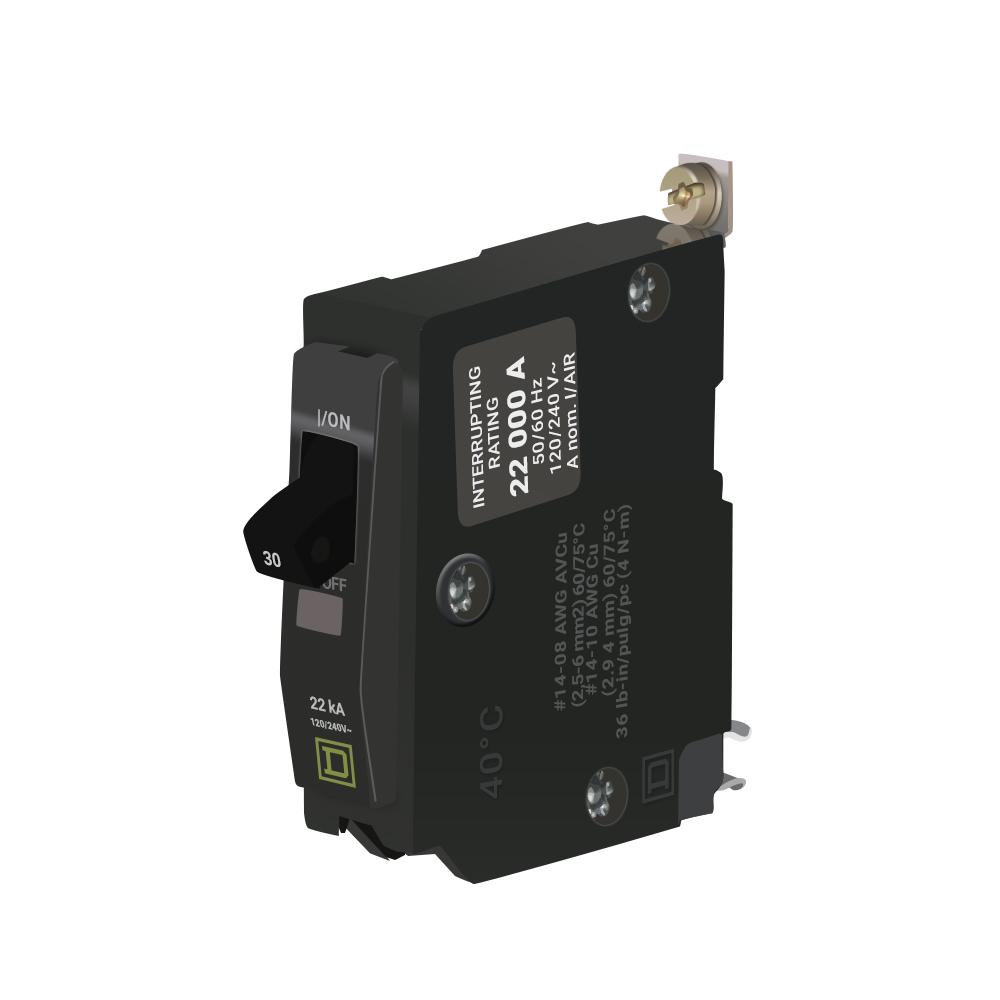

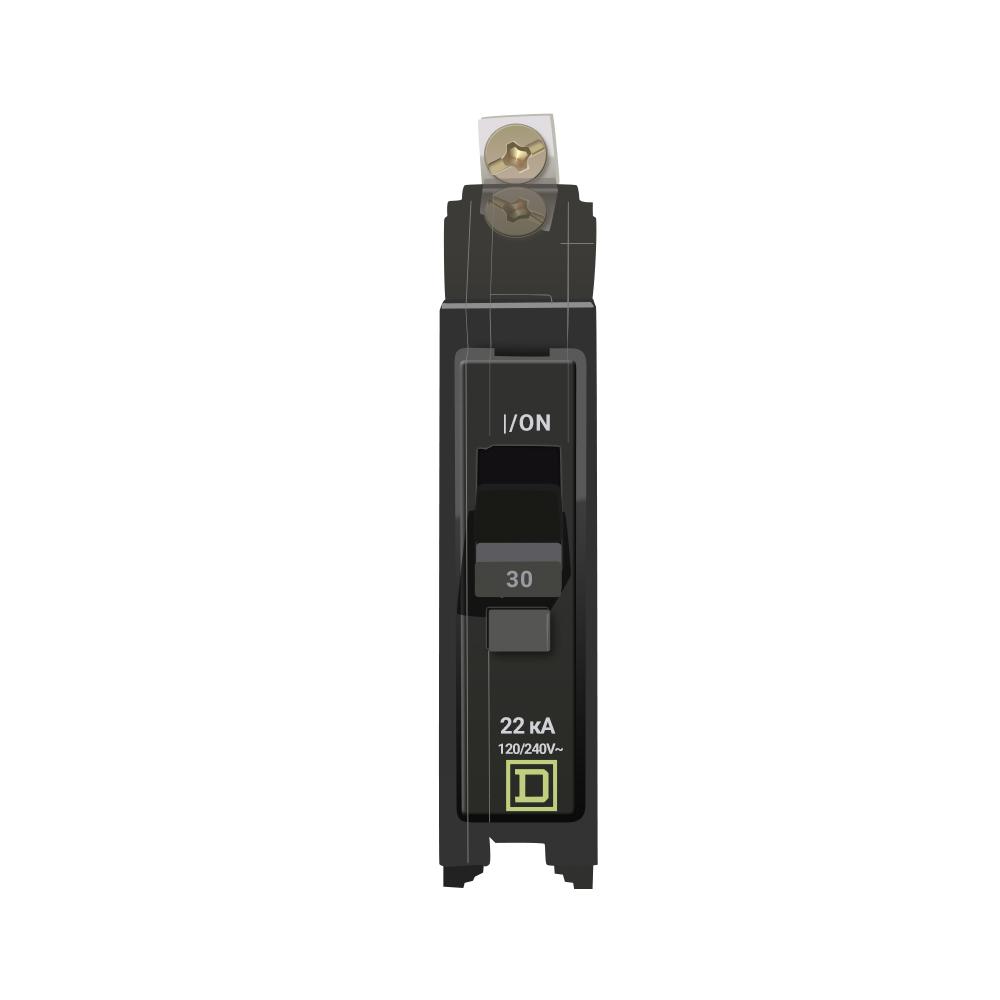

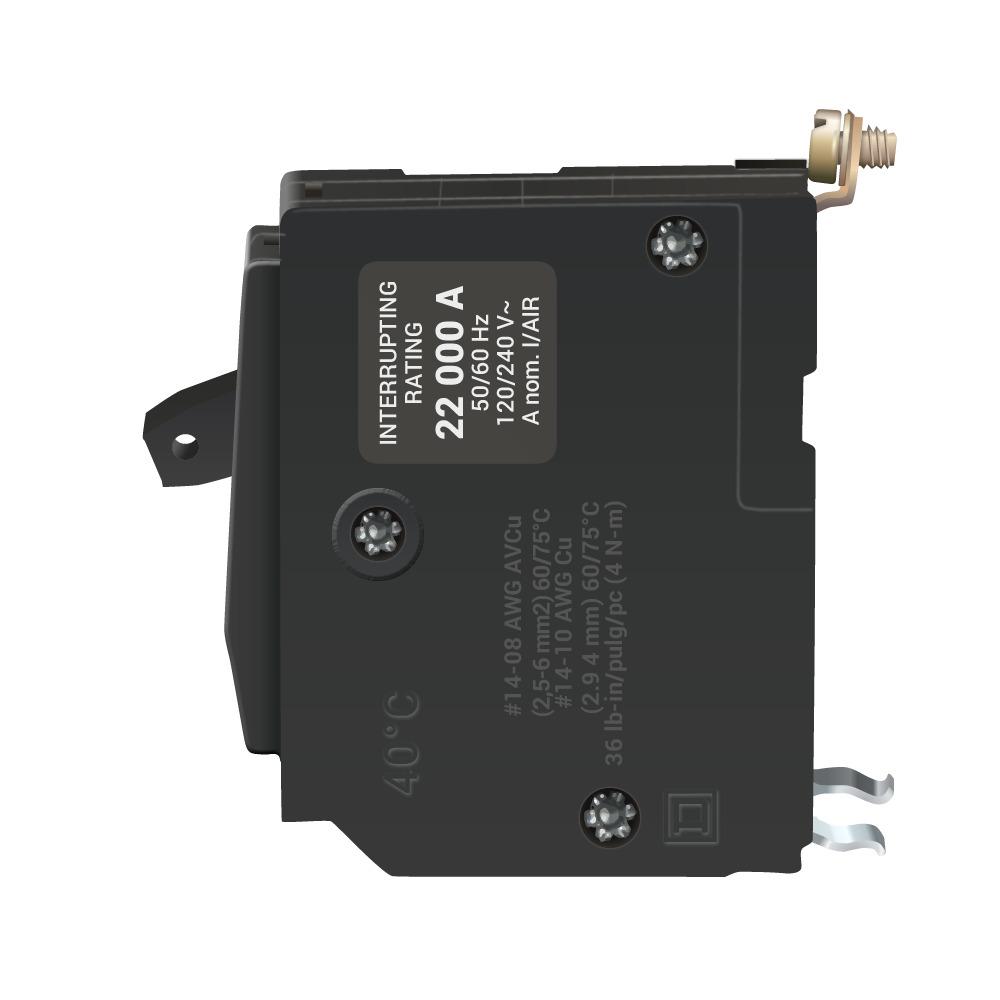

QOB130VH - Square D - 30 Amp 22kA Circuit Breaker

Bolt-On - 30 Amp - 1 Pole - 120 Volt

Schneider Electric SKU: QOB130VH
QOB130VH - Square D - 30 Amp 22kA Circuit Breaker
QOB130VH - Square D - 30 Amp 22kA Circuit Breaker
QOB130VH - Square D - 30 Amp 22kA Circuit Breaker
QOB130VH - Square D - 30 Amp 22kA Circuit Breaker

Images are for reference only

QOB130VH - Square D - 30 Amp 22kA Circuit Breaker

Bolt-On - 30 Amp - 1 Pole - 120 Volt

Schneider Electric SKU: QOB130VH
Regular price $32.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

QOB130VH - Square D Bolt-On Circuit Breaker

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 30 Amps and interrupting rating of 22 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 - 2 AWG.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 30 A
  • System Voltage: 120 V AC, 120/240 V AC
  • Mounting Type: Bolt-on
  • Number of Poles: 1P
  • Circuit Breaker Type: Standard
  • Ratings: HACR rated
  • Electrical Connection: Pressure plate
  • Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
  • Number of Panel Spaces: 1
  • Wire Size: AWG 14...AWG 8 (copper or aluminium)
  • Height: 3 in
  • Depth: 2.91 in
  • Width: 0.75 in
  • Certifications: CSA, UL listed
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Square D Product
  • Dimensions (H x W x L): 3" x 0.75" x 2.91"
