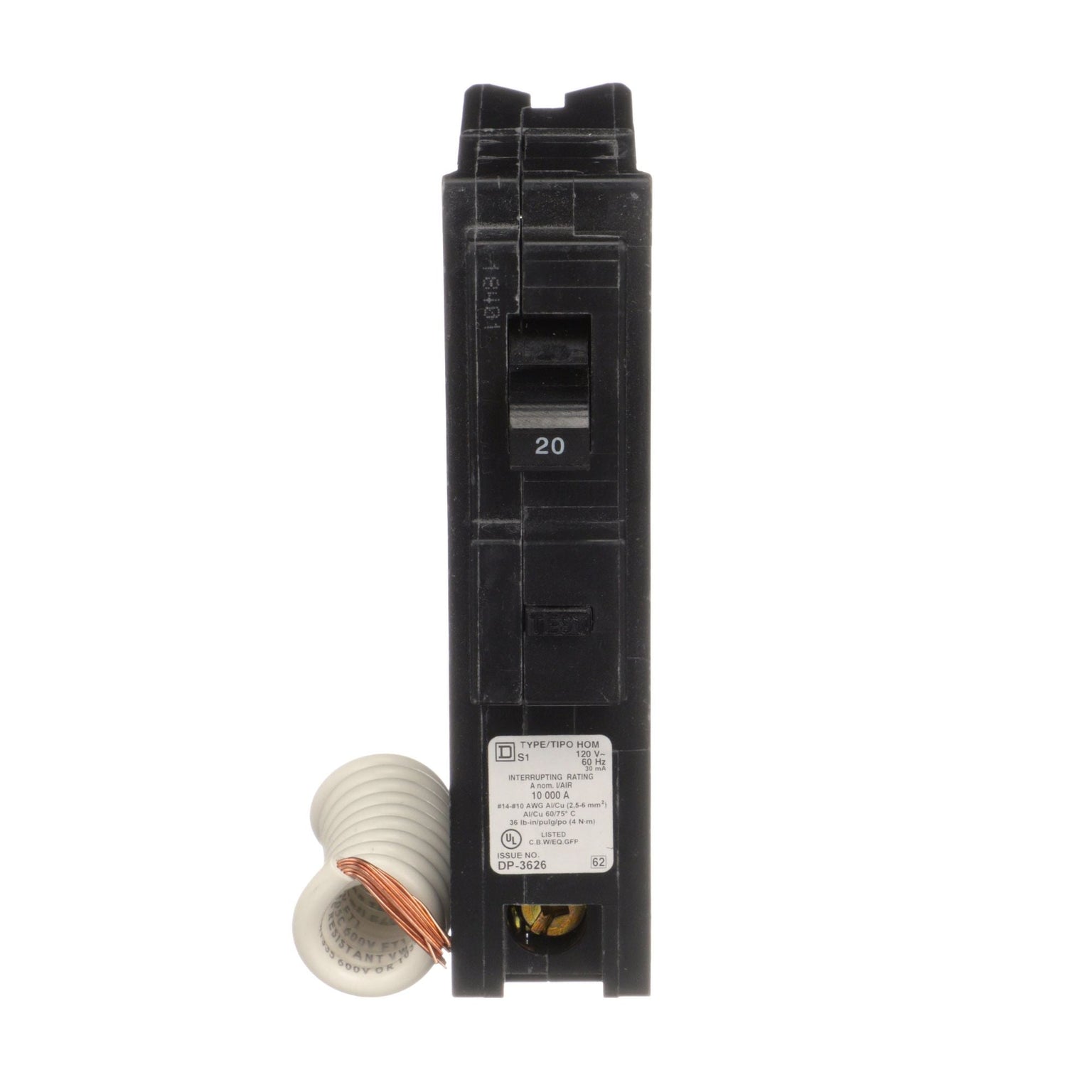

Name: HOM120EPDCP - Square D - 20 Amp Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: HOM120EPDCP
Price: 211.99 USD
Availability: InStock

HOM120EPDCP - Square D - 20 Amp Molded Case Circuit Breaker

Images are for reference only

Save $162.01

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":40488335212624,"title":"New","option1":"New","option2":null,"option3":null,"sku":"HOM120EPDCP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HOM120EPDCP - Square D - 20 Amp Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":21199,"weight":454,"compare_at_price":37400,"inventory_management":"shopify","barcode":"785901636502","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41193334734928,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"HOM120EPDCP_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HOM120EPDCP - Square D - 20 Amp Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":14899,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901636502","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.

Overview

Product Specifications - HOM120EPDCP - Square D - 20 Amp Molded Case Circuit Breaker

Part Number:

HOM120EPDCP
Manufacturer:
Schneider Electric / Homeline
Family:

Homeline
Pole:

1
Amp

20
Volt:

120
Phase:

1

Category:

Molded Case Circuit Breakers / 1-Pole
Connection:

Plug-In
Type:

HOM
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

10kA@120V

Dimensions

Dimensions (HxWxD):

3.7 x 2 x 2.6
Weight:

1.1 lbs

Standards

Product Description - HOM120EPDCP - Square D - 20 Amp Molded Case Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
