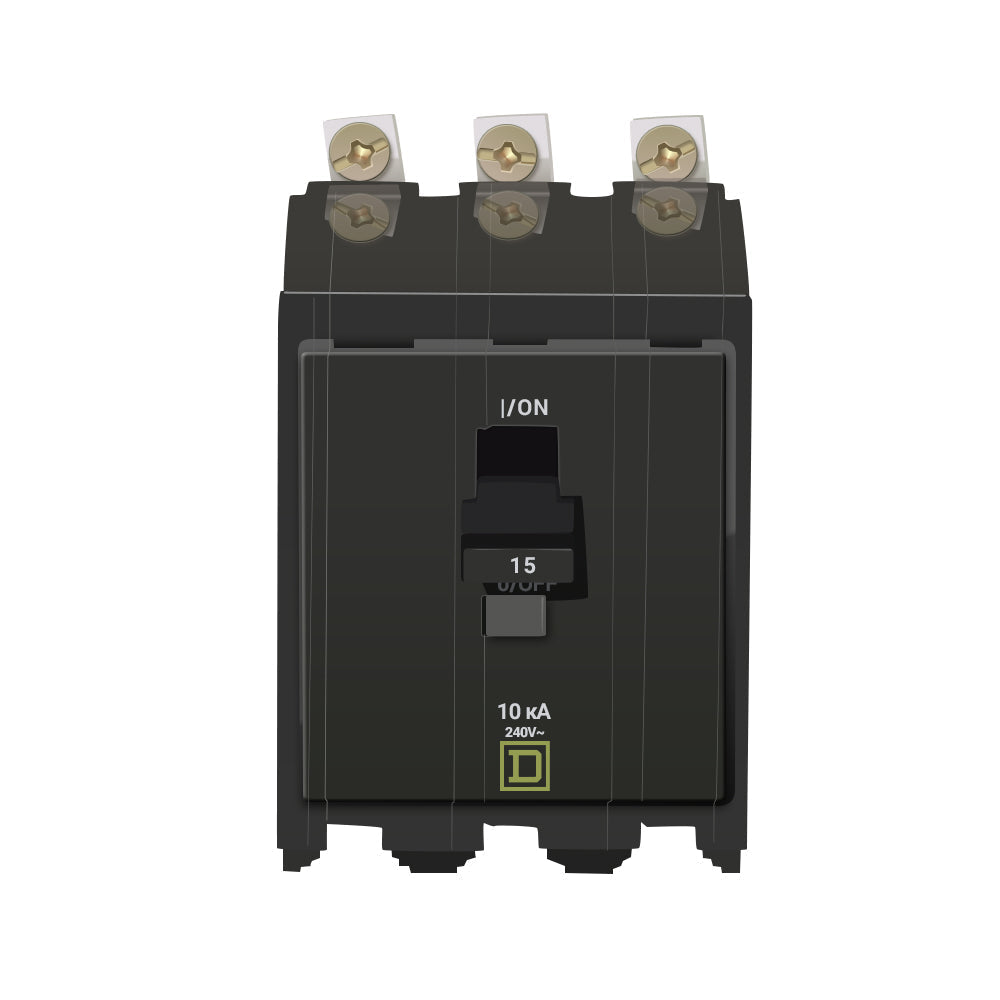

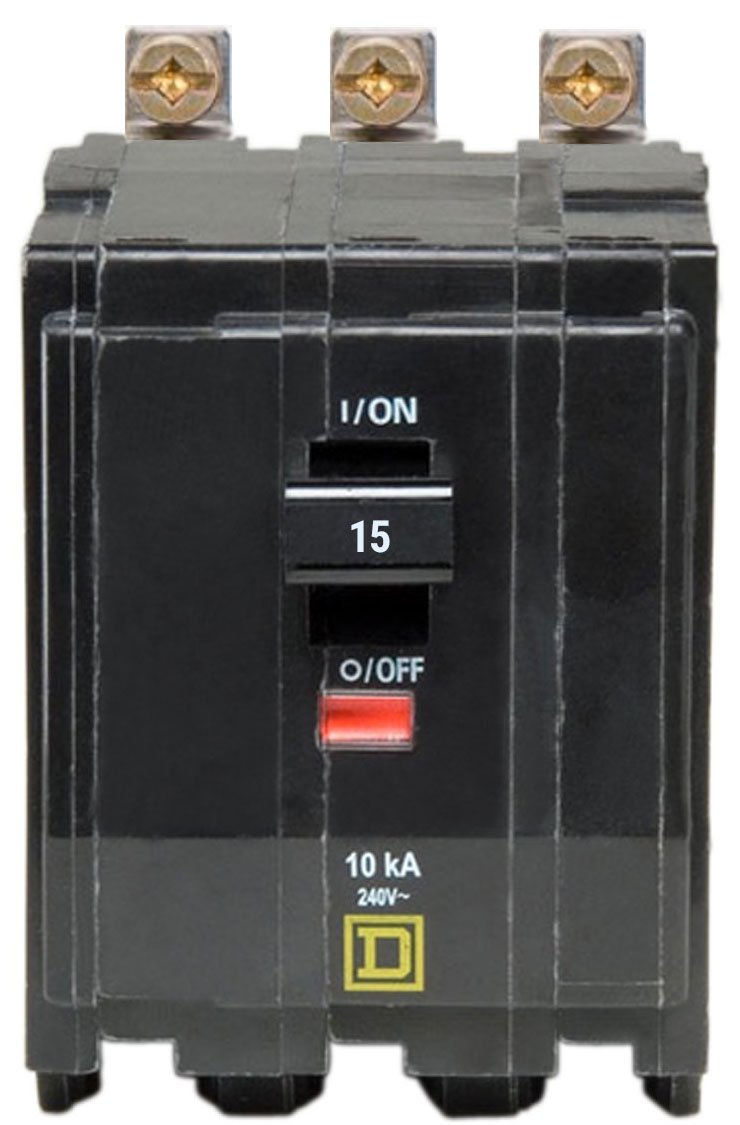

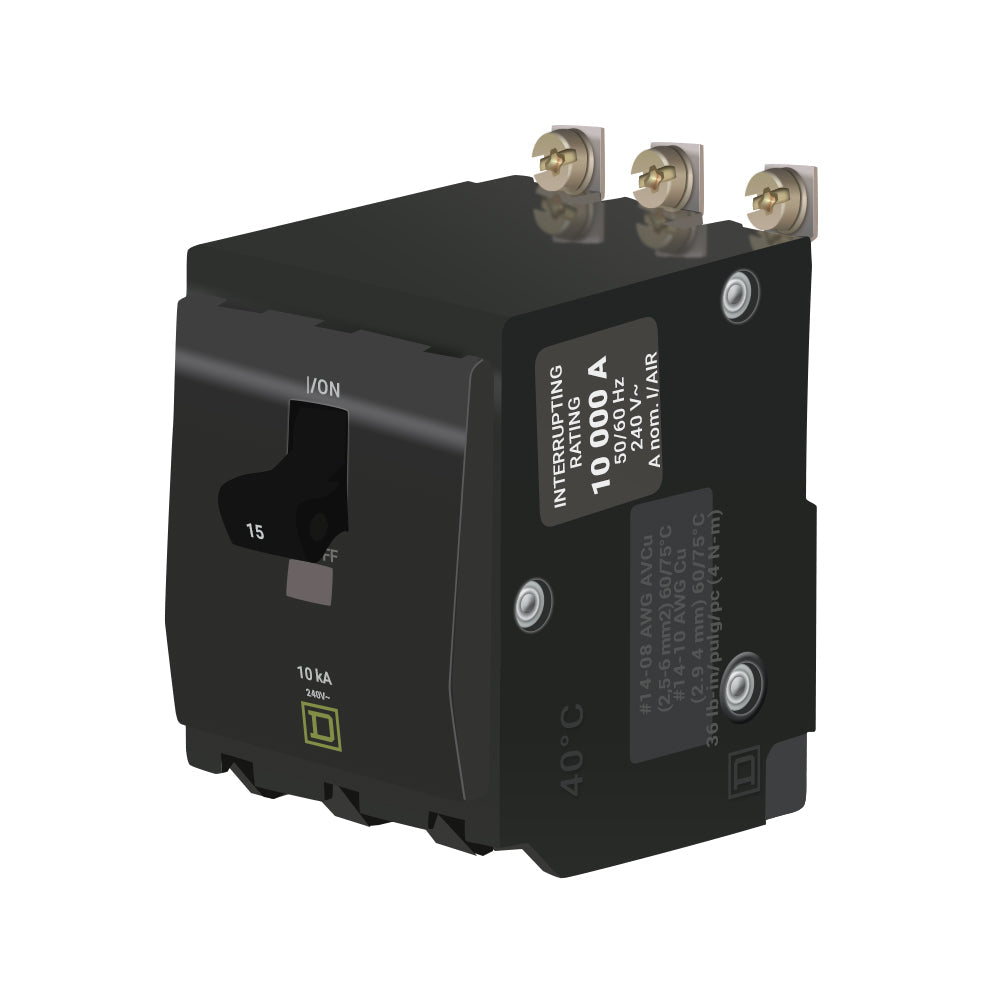

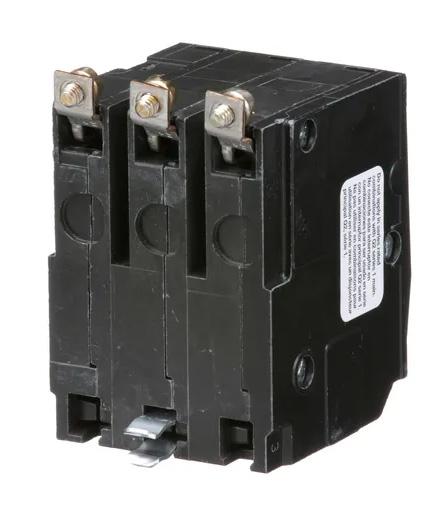

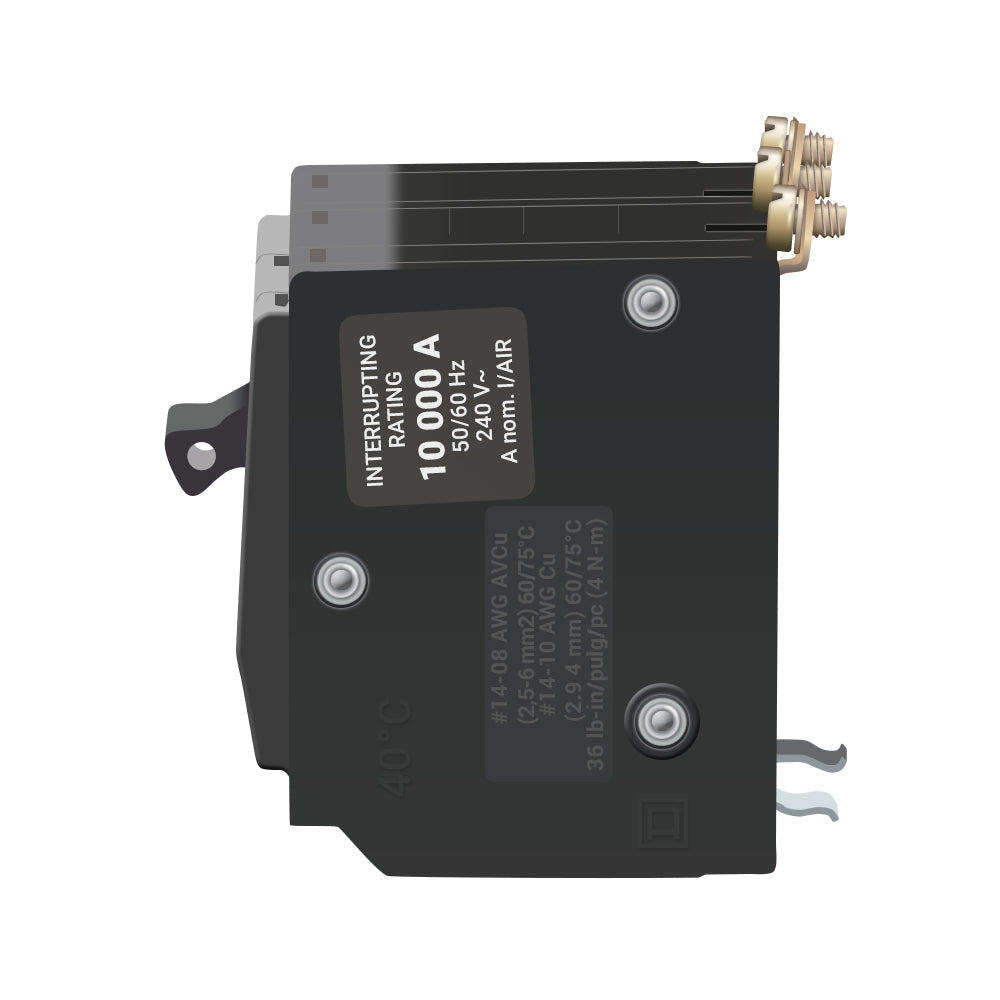

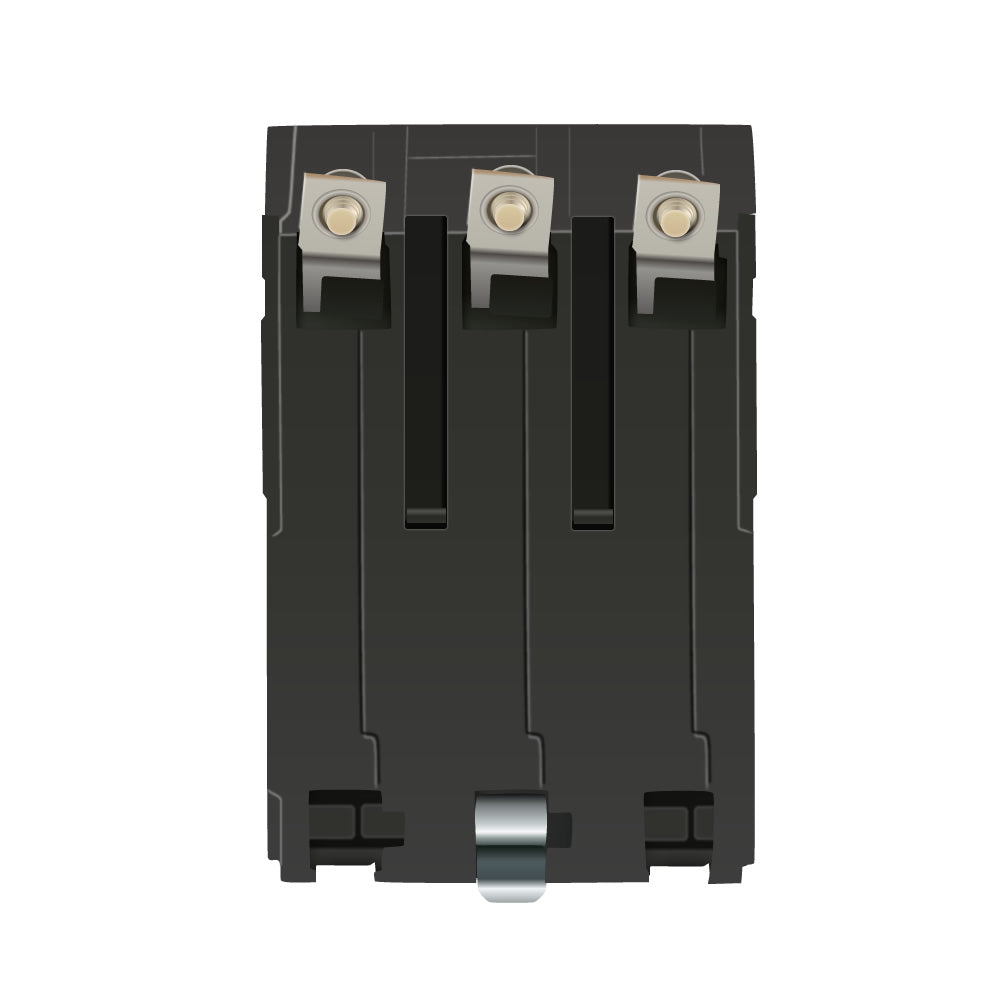

QOB315 - Square D Bolt-On 15 Amp Breaker
Schneider Electric/Square D Miniature circuit breaker with visi-trip indicator has an integrated pressure plate to offer protection against damage to flexible lines. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 15 Amps and short-circuit current rating of 10 kilo-Amps.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 15 A
- System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
- Mounting Type: Bolt-on
- Number of Poles: 3P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Pressure plate
- Number of Panel Spaces: 3
- Wire Size: AWG 14...AWG 8 (copper or aluminium)
- Height: 3 in
- Depth: 2.91 in
- Width: 2.25 in
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Schneider Electric / Square D Product
- Dimensions (H x W x L): 3" x 2.25" x 2.91"
- 3 phase
Alt model: q0b315
