Overview
Product Specifications - GV3P13 - Square D Motor Starter
-
Part Number:
GV3P13 -
Manufacturer:
-
Family:
TeSys GV3 -
Pole:
3 -
Amp:
13 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
GV3
Dimensions
-
Dimensions (HxWxD):
2.17 x 5.20 x 5.35 -
Weight:
2.12 lbs
Standards

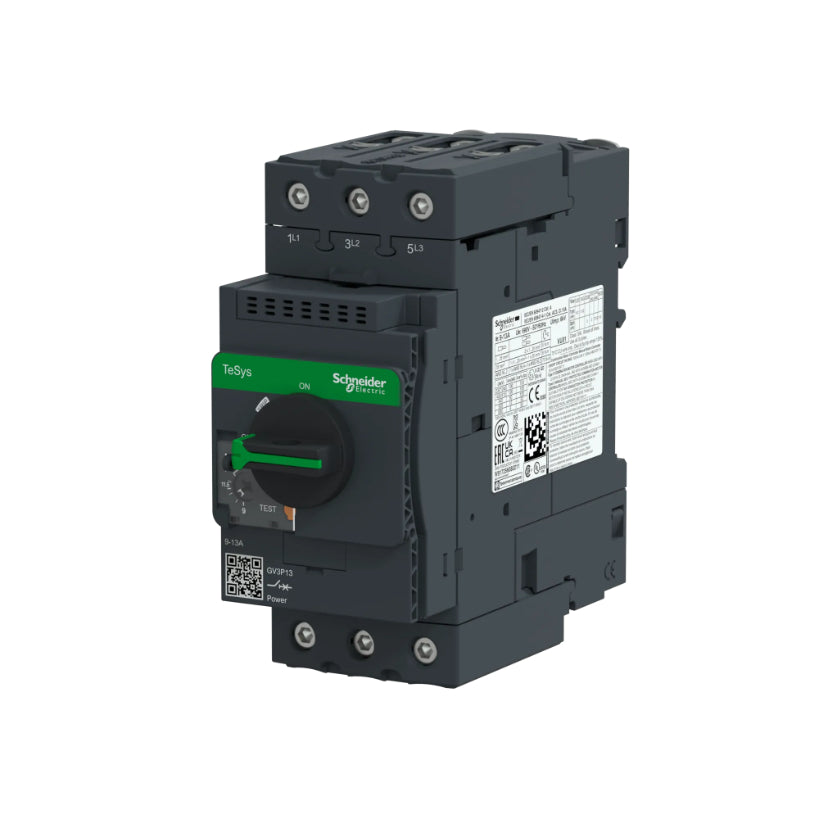

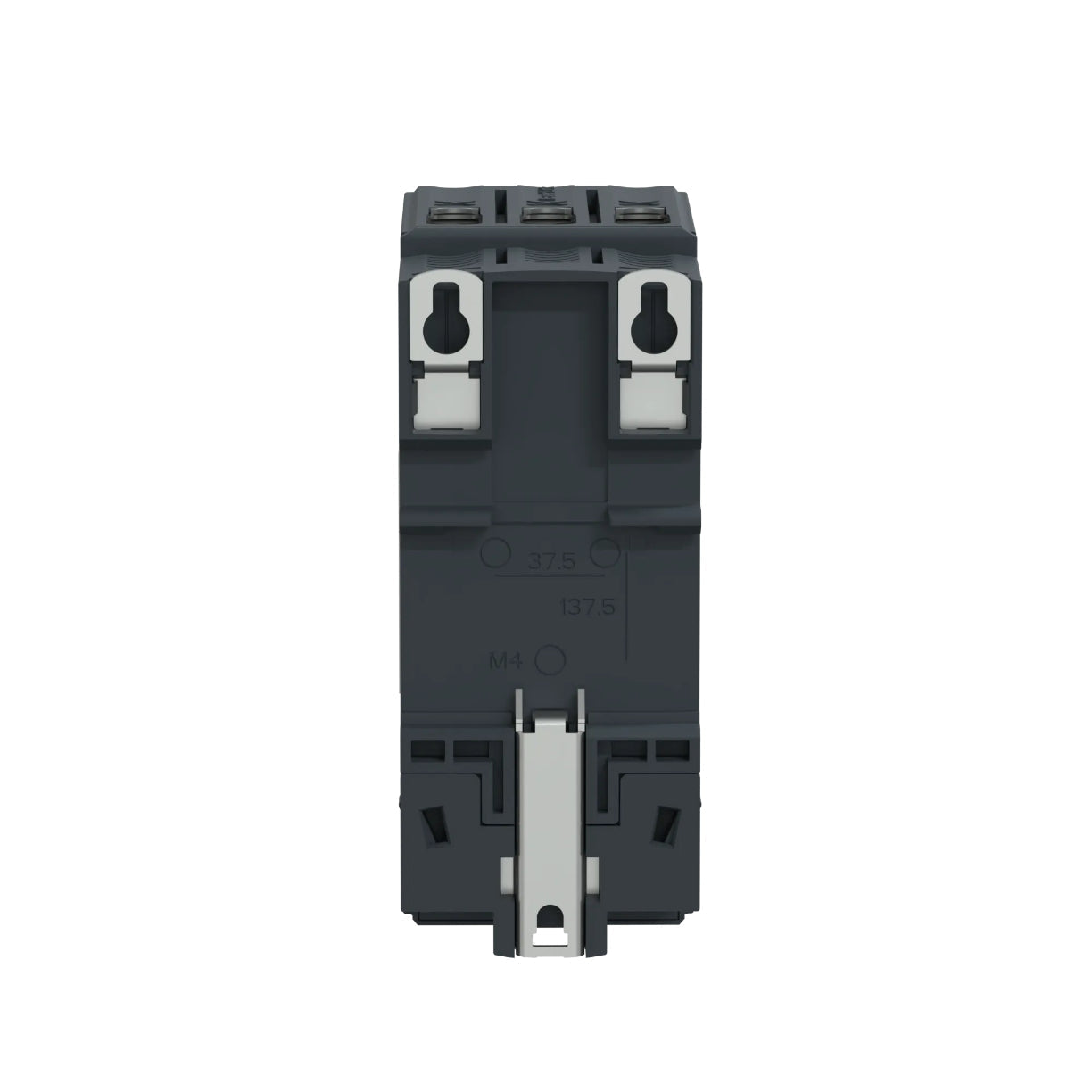

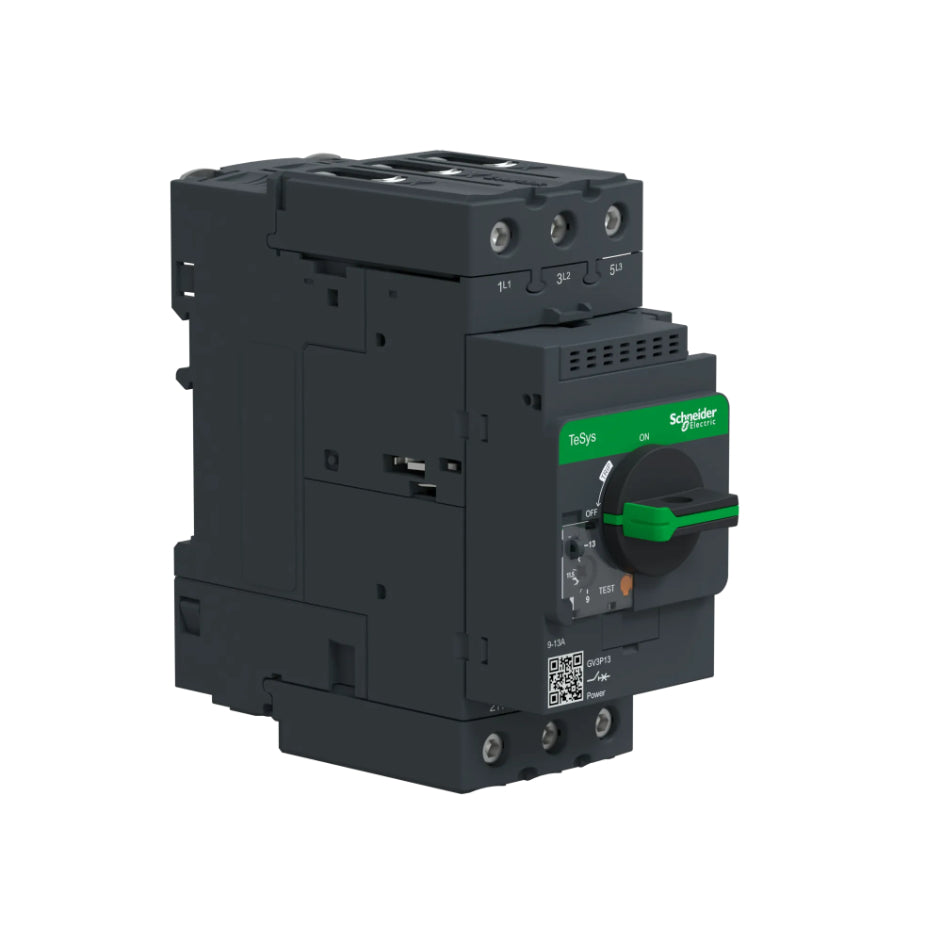

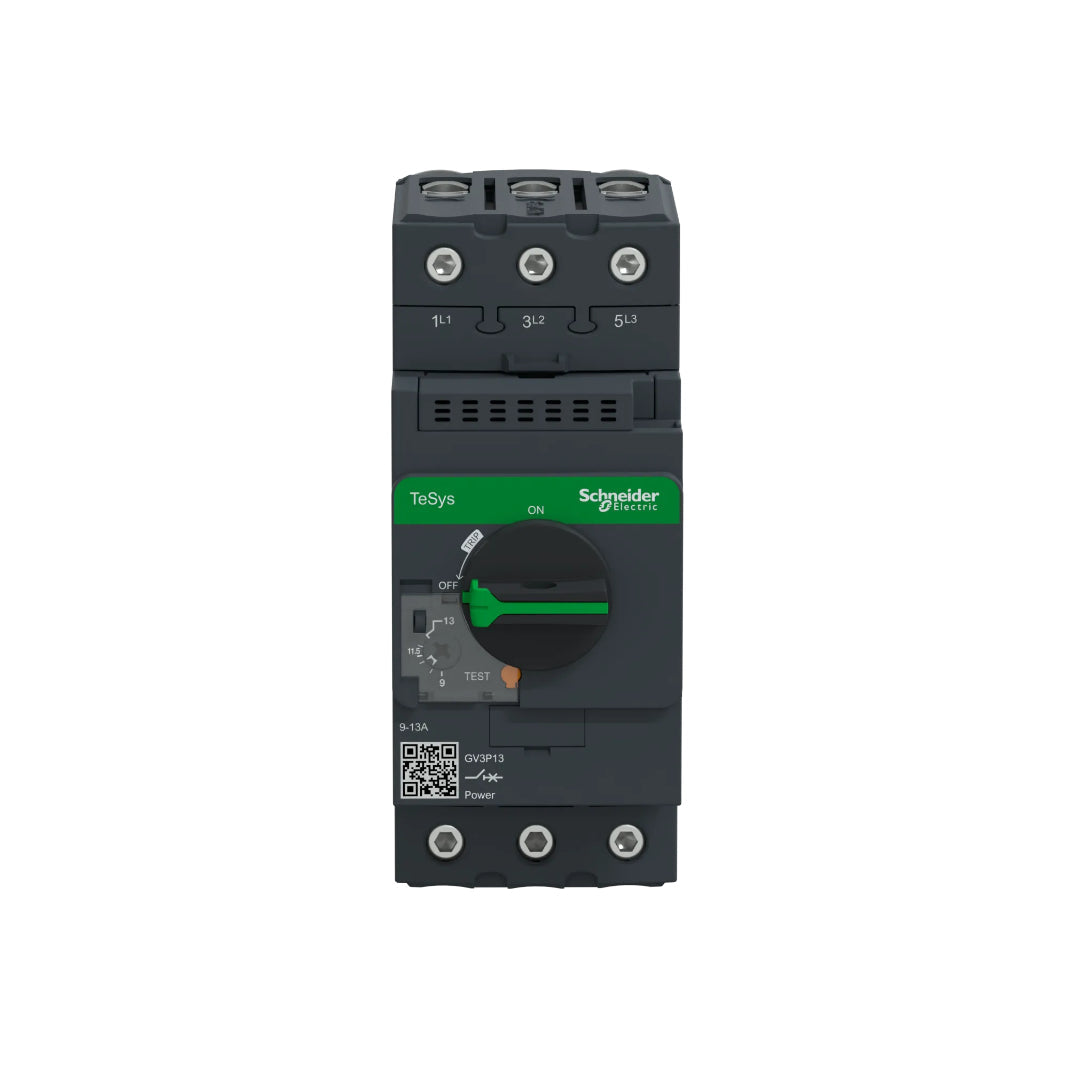

Product Description - GV3P13 - Square D Motor Starter
GV3P13 is a TeSys GV motor circuit breaker from Schneider Electric. It ensures thermal-magnetic protection for motors 5.5kW@400V and high breaking capacity Icu 100kA. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. GV3P13 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 5.5kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 9-13A, magnetic tripping at 14xIn and high breaking capacity Icu 100kA@400V. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device , short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution. Compact, 55mm wide, for DIN-rail and panel mounting. Manual control with rotary knob for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signaling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with EverLink BTR screw connectors providing constant tightening pressure. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV3G).
