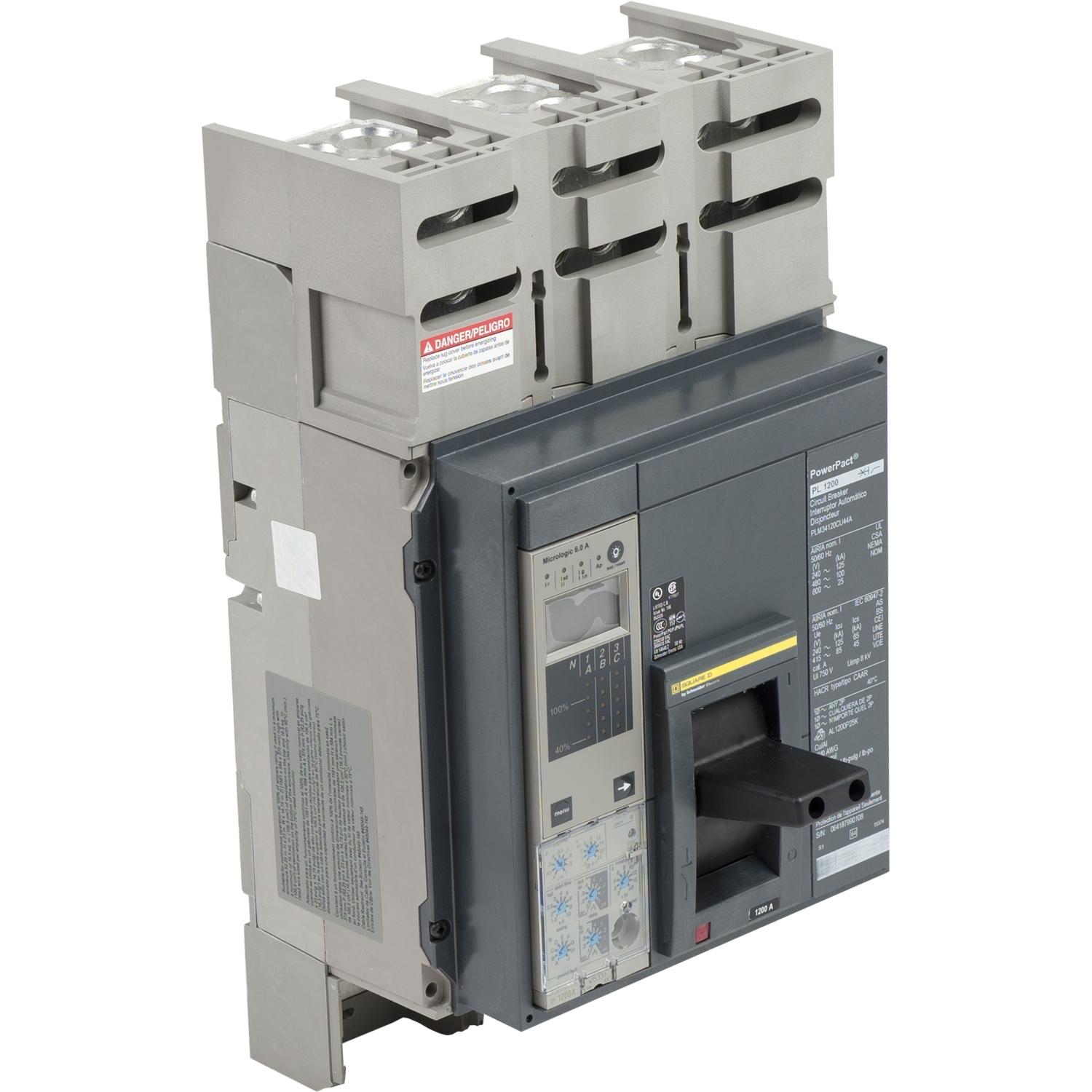

PLM34120CU44A - Square D - Molded Case Circuit Breakers

Bolt-On - 1200 Amp - 3 Pole - 480 Volt

Square D SKU: PLM34120CU44A
PLM34120CU44A - Square D - Molded Case Circuit Breakers

Images are for reference only

PLM34120CU44A - Square D - Molded Case Circuit Breakers

Bolt-On - 1200 Amp - 3 Pole - 480 Volt

Square D SKU: PLM34120CU44A
Regular price $13,767.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - PLM34120CU44A - Square D Molded Case Circuit Breakers

  • Category:

  • Connection:

    Bolt-On
  • Type:

    P Frame
  • Functions:

    NGC
  • Protection:

    Solid State
  • AIC Ratings:

    100kA@480V

Dimensions

  • Dimensions (HxWxD):

    16.16 x 8.27 x 8.05
  • Weight:

    32 lbs

Standards

CSA Approved logo

Product Description - PLM34120CU44A - Square D Molded Case Circuit Breakers

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This break has lugs on the line side and terminal nuts on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 100kA at 480VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
