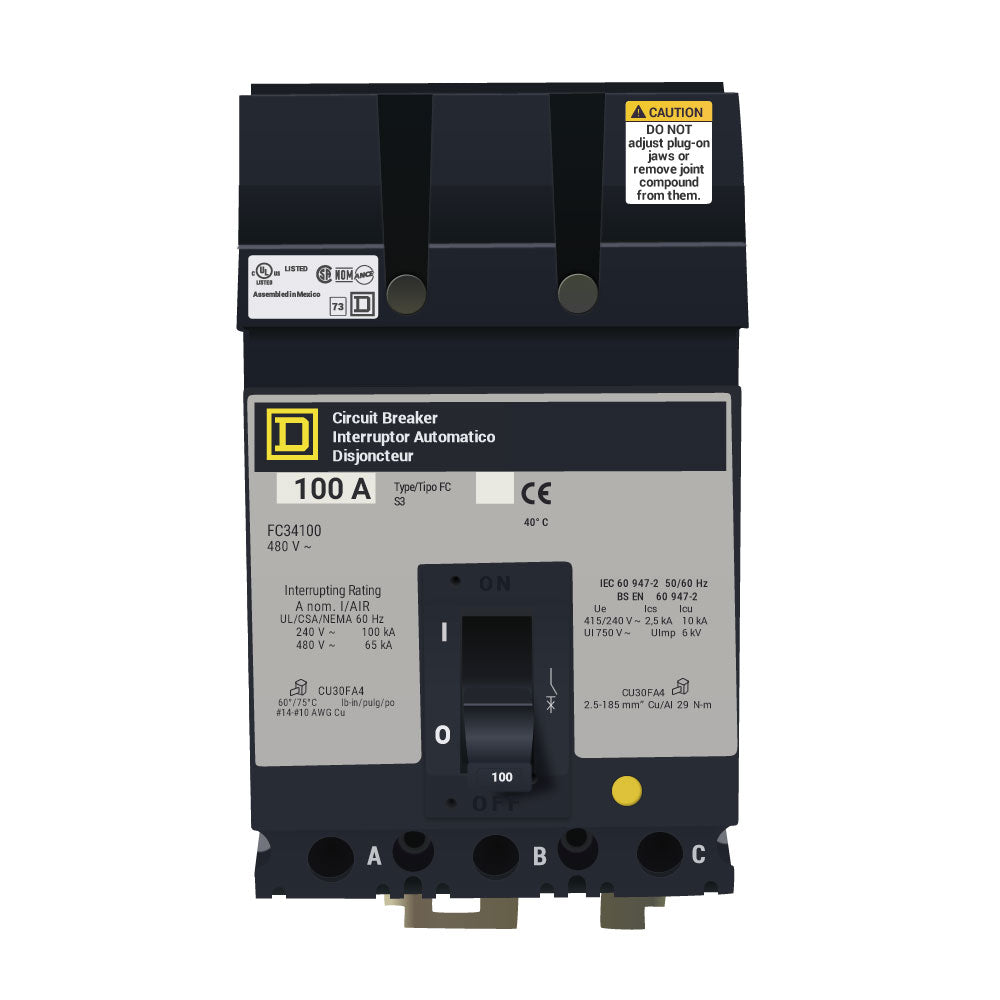

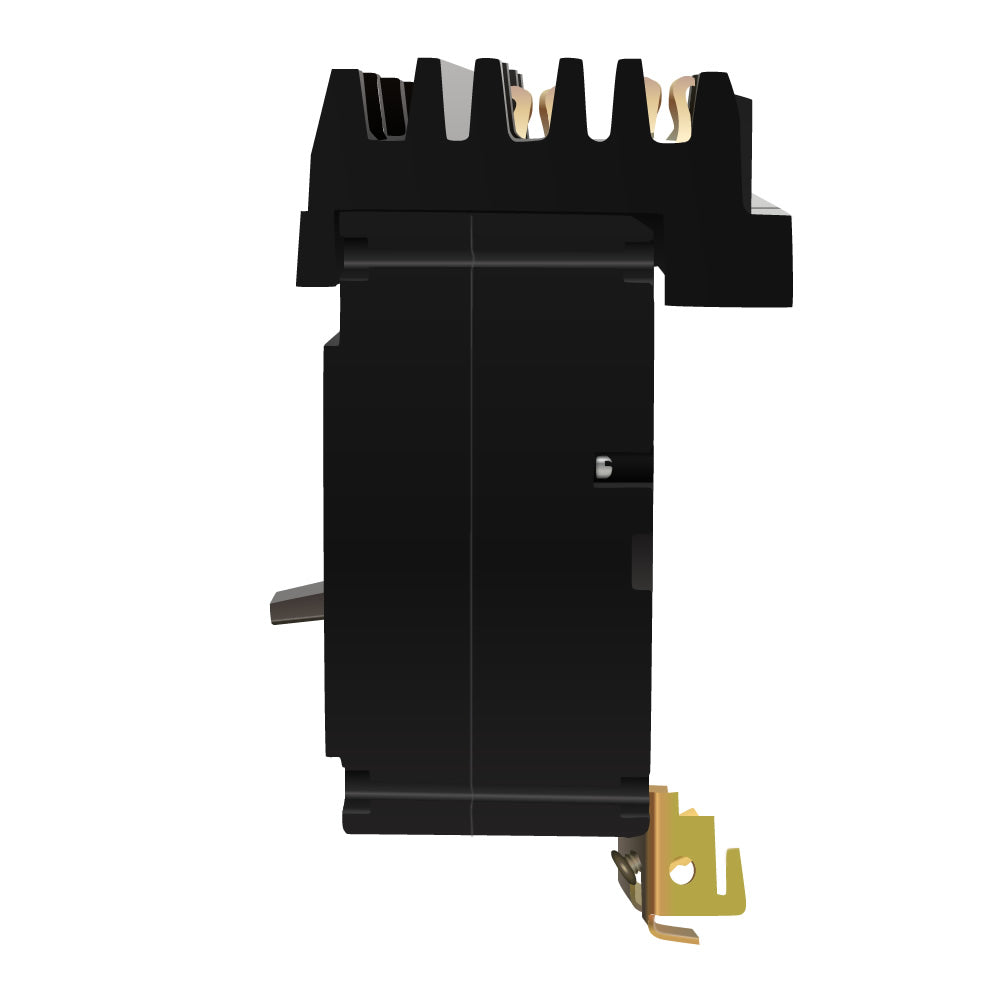

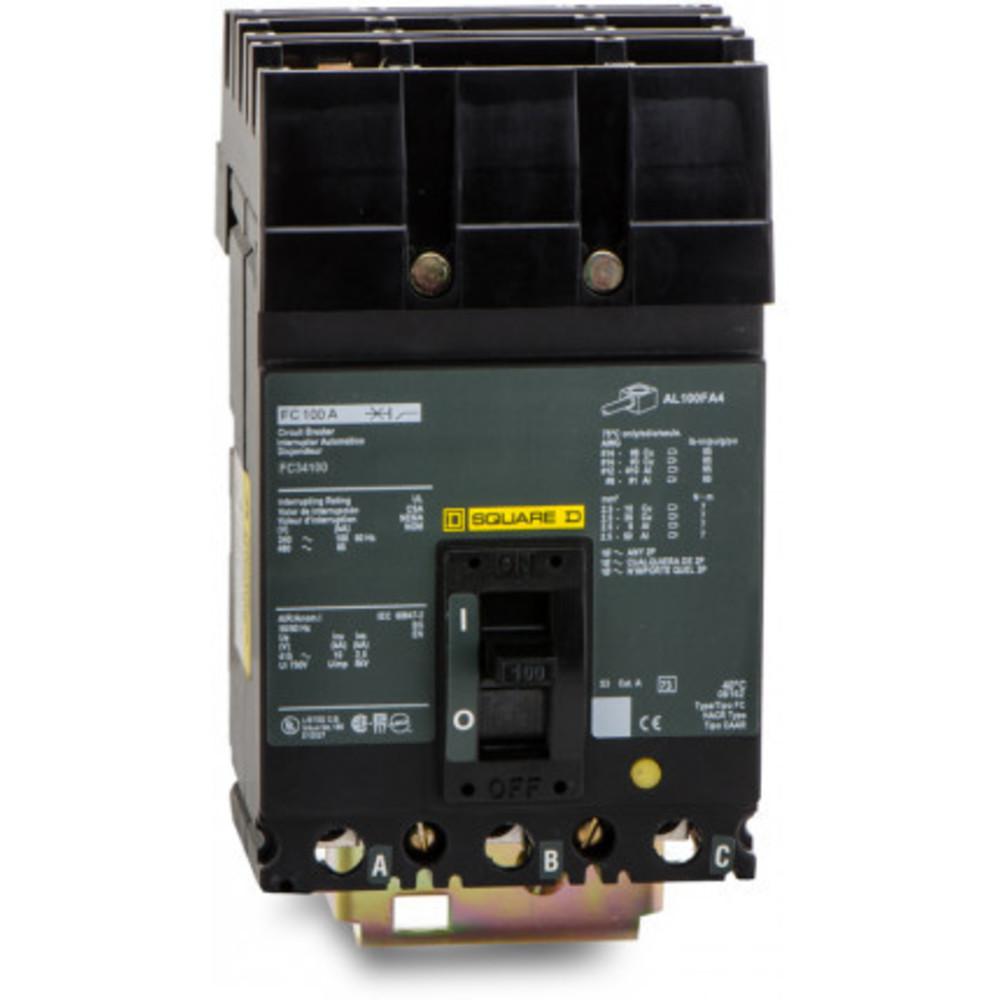

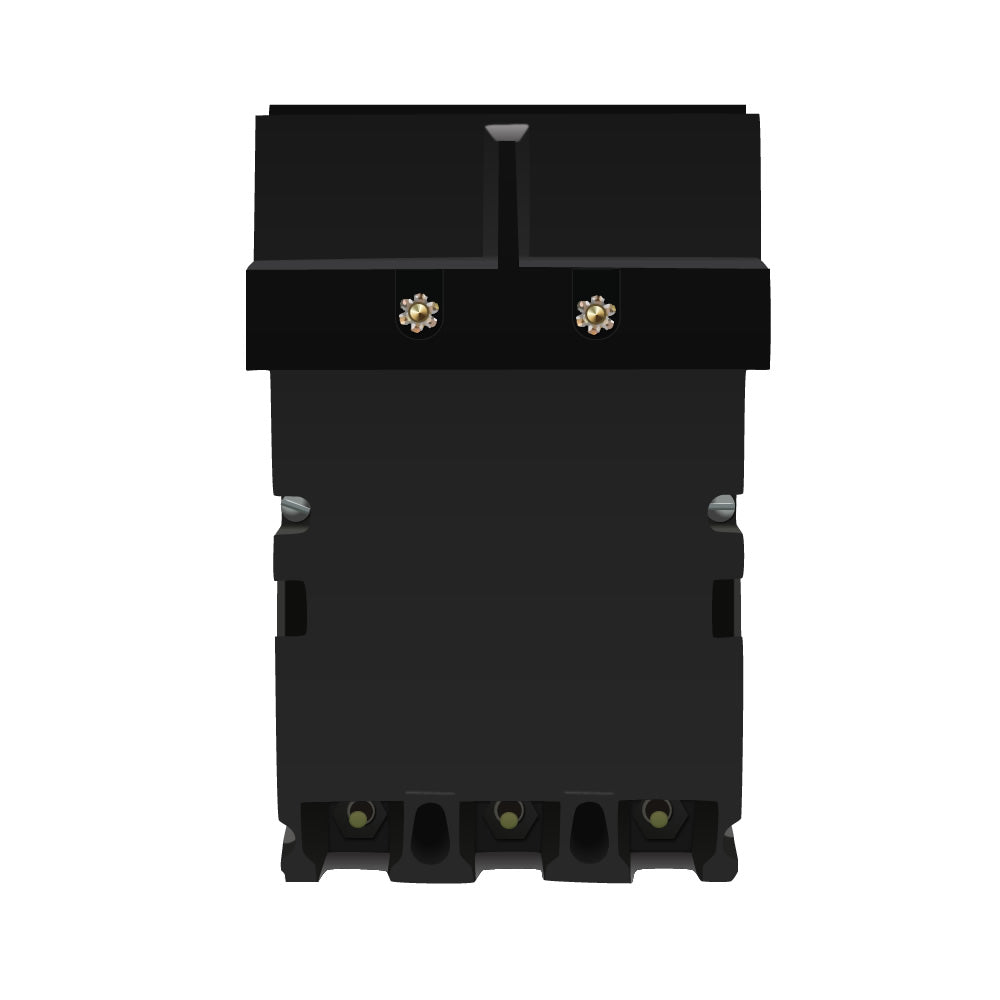

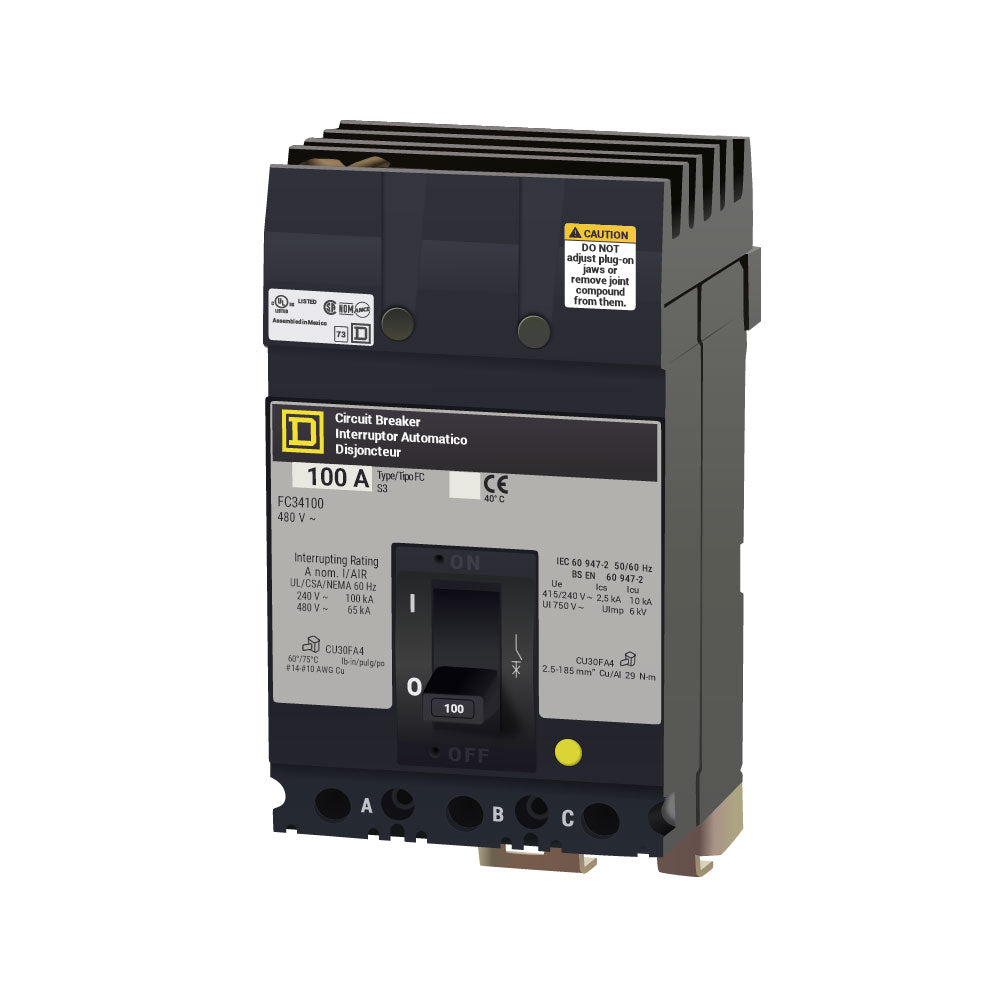

FC34100 - Square D - Molded Case Circuit Breakers
I-Line Style Plug-In - 100 Amp - 3 Pole - 480 Volt
Square D
SKU: FC34100
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - FC34100 - Square D Molded Case Circuit Breakers
-
Part Number:
FC34100 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp:
100 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
F Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.5 x 12 x 7.4 -
Weight:
4.46 lbs
Standards
Product Description - FC34100 - Square D Molded Case Circuit Breakers
The FC34100 is another type FC molded case circuit breaker from Square D's I-Line series. It features 3 poles (3P), operates in three phases (3PH), with a current rating of 100A at 480V. Similar to the previous models, it boasts a high interrupting capacity of 65kA at 480V and offers Long-Time and Instantaneous trip functions. This Thermal Magnetic circuit breaker is designed for I-Line Style Plug-In installations, providing reliable protection for various industrial applications.
