Overview

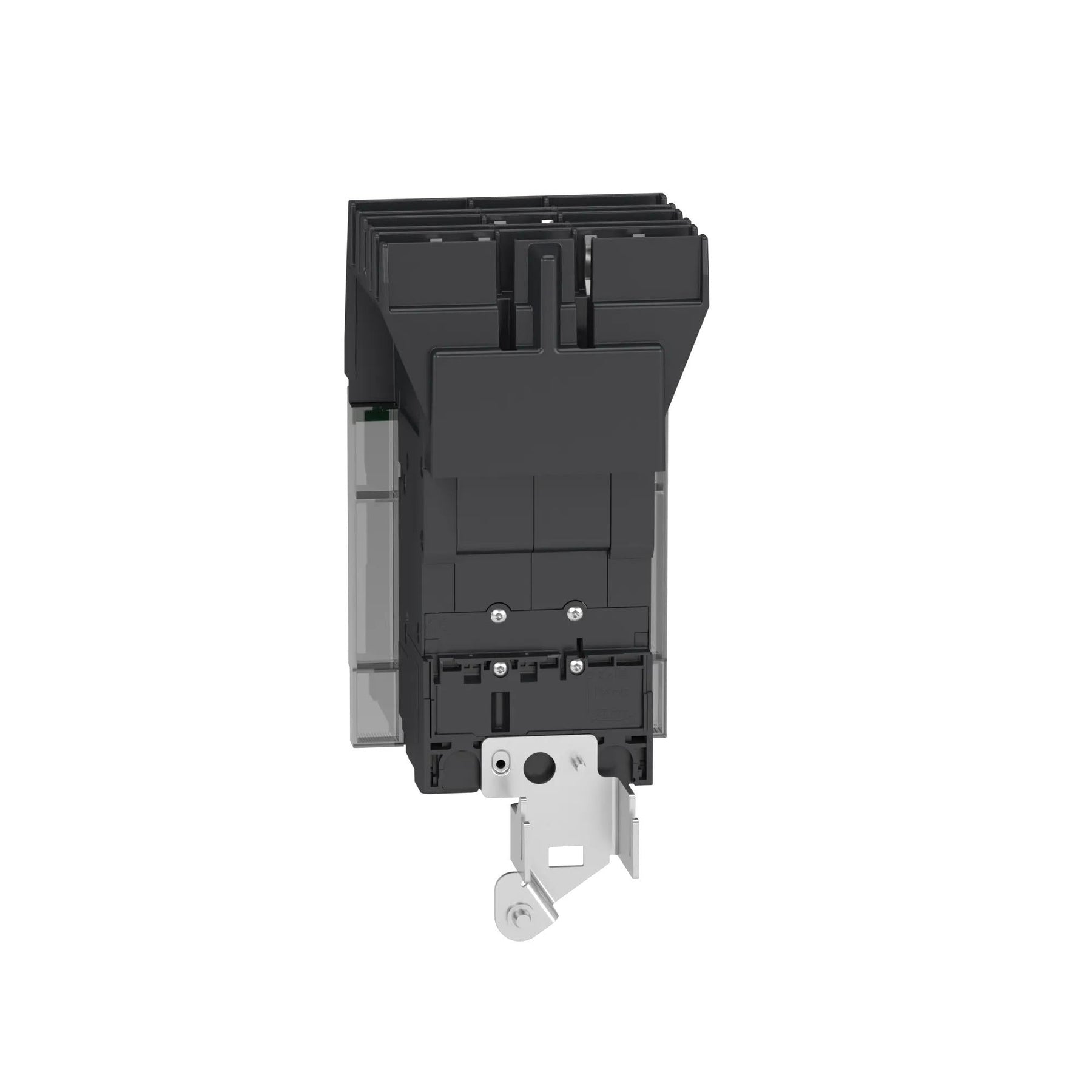

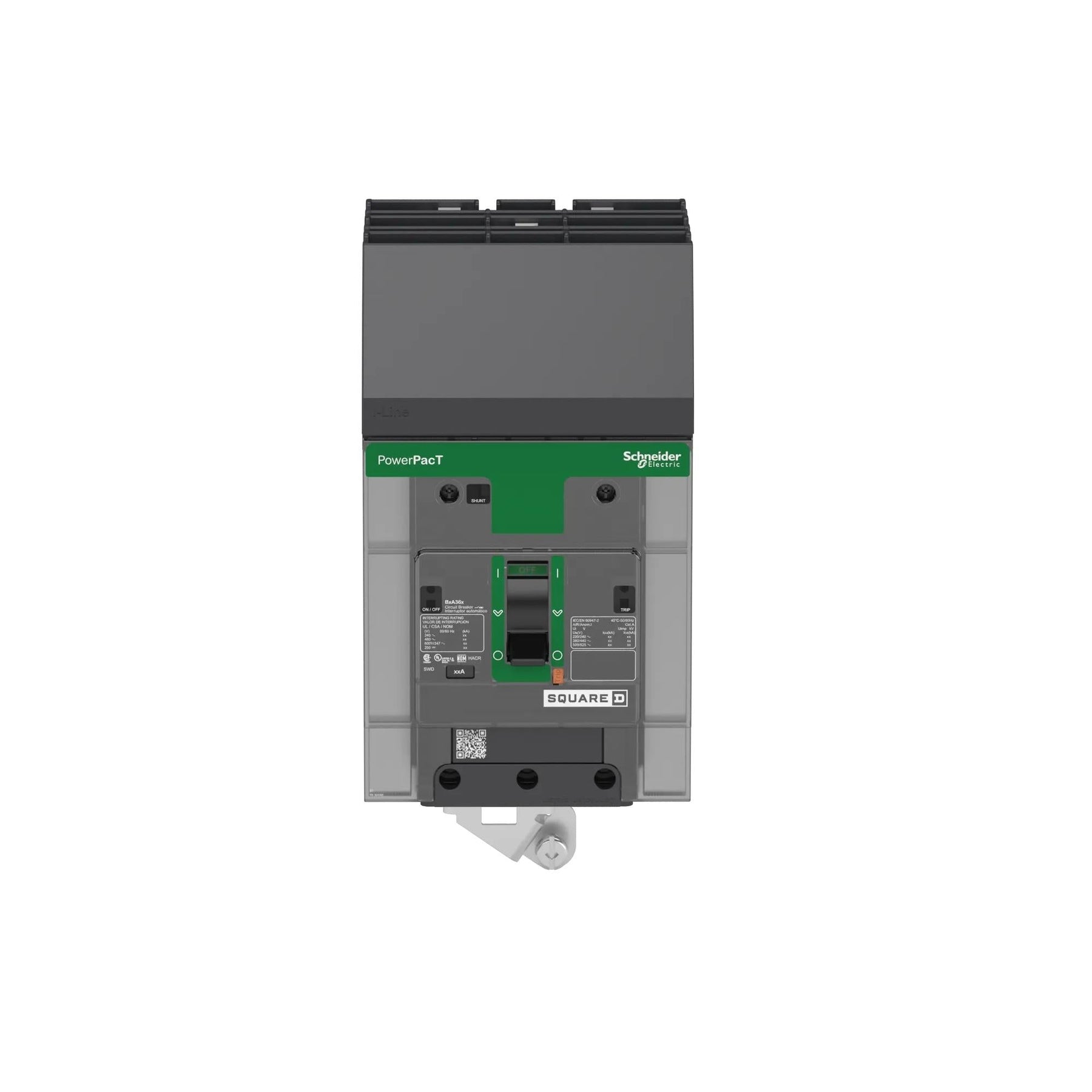

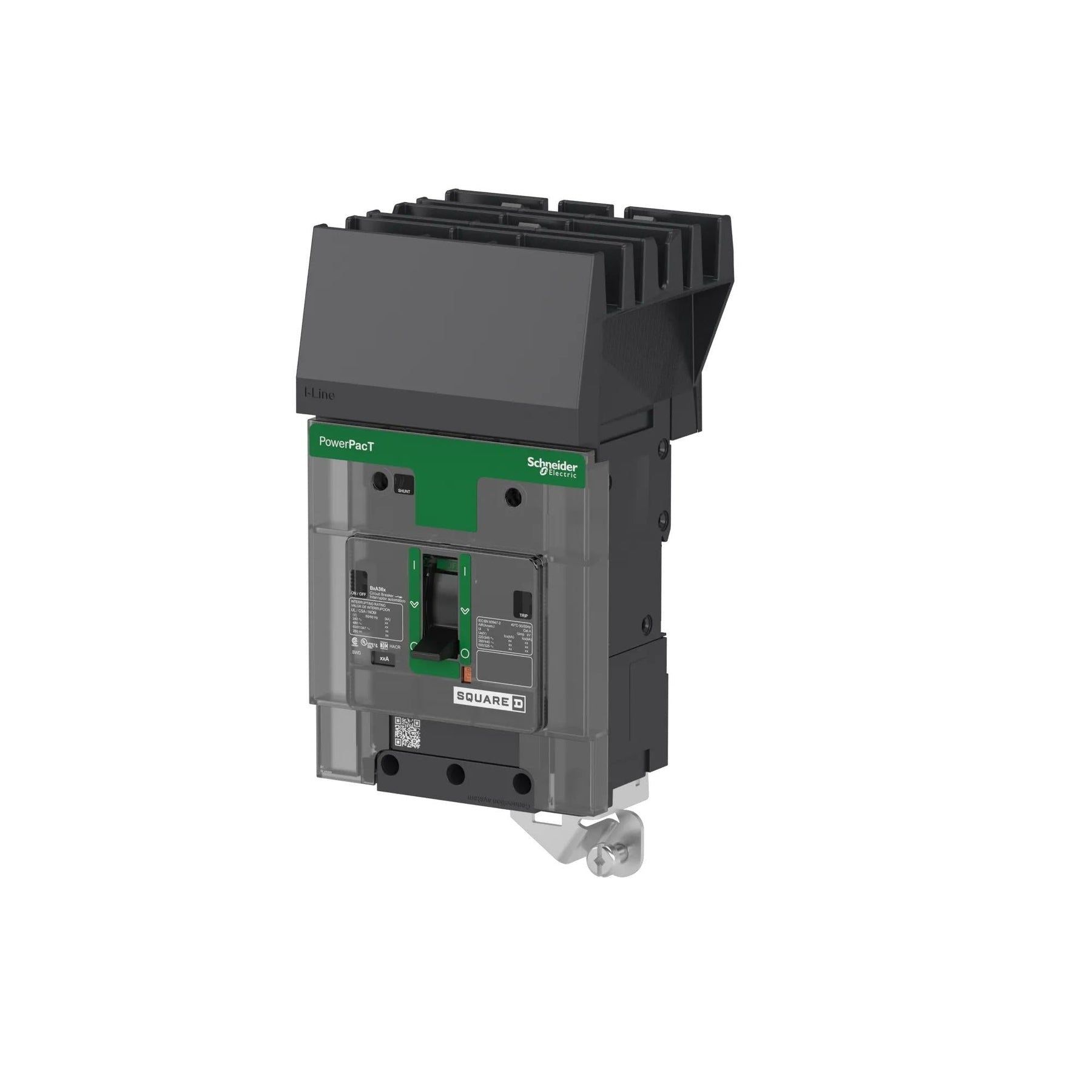

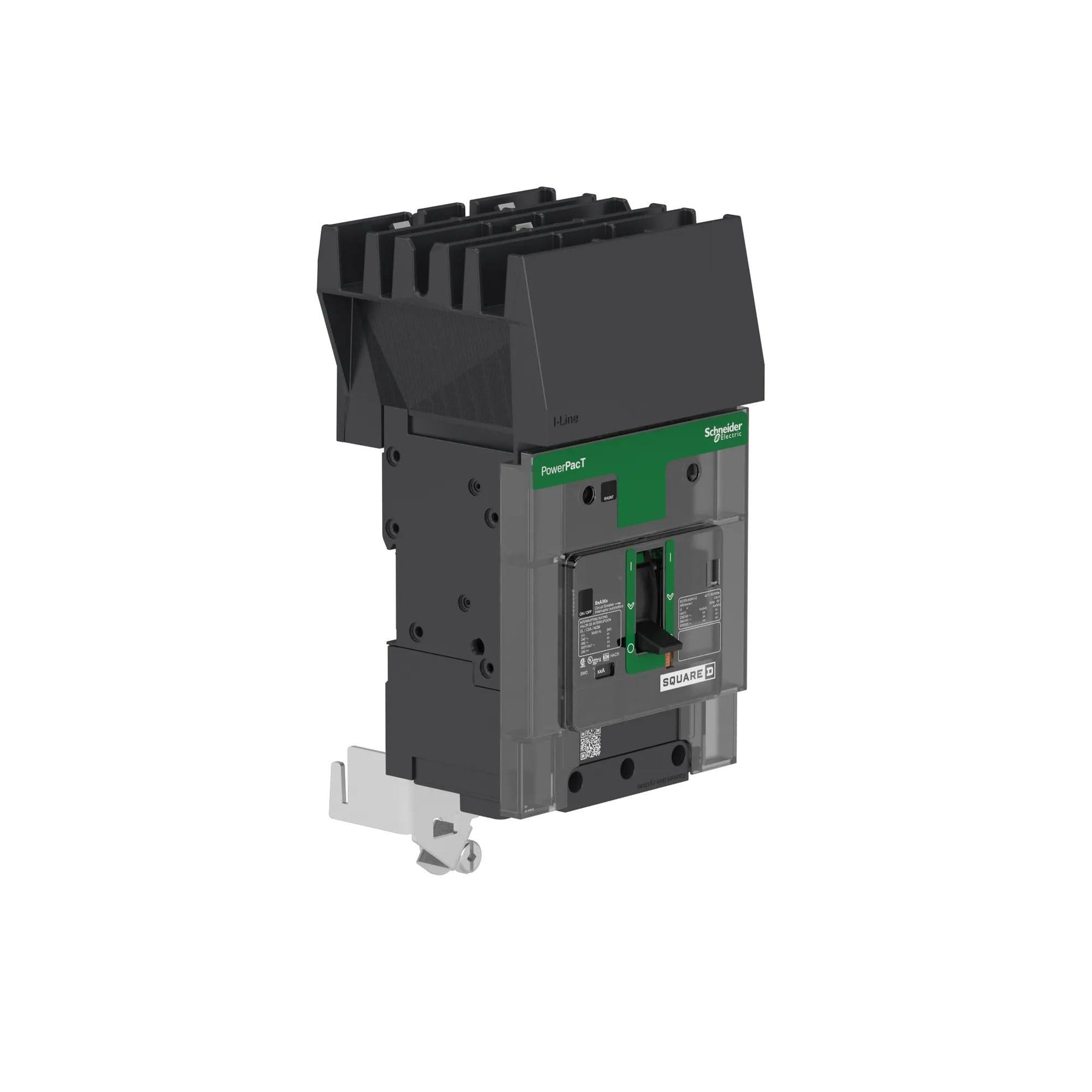

Product Specifications - BGA34100Y - Square D Molded Case Circuit Breaker
-
Part Number:
BGA34100Y -
Manufacturer:
-
Family:
Powerpact -
Amp:
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
B Frame -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
5.39 x 3.19 x 3.50 -
Weight:
2.9 lbs
Standards
Product Description - BGA34100Y - Square D Molded Case Circuit Breaker
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 100A, 3 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
