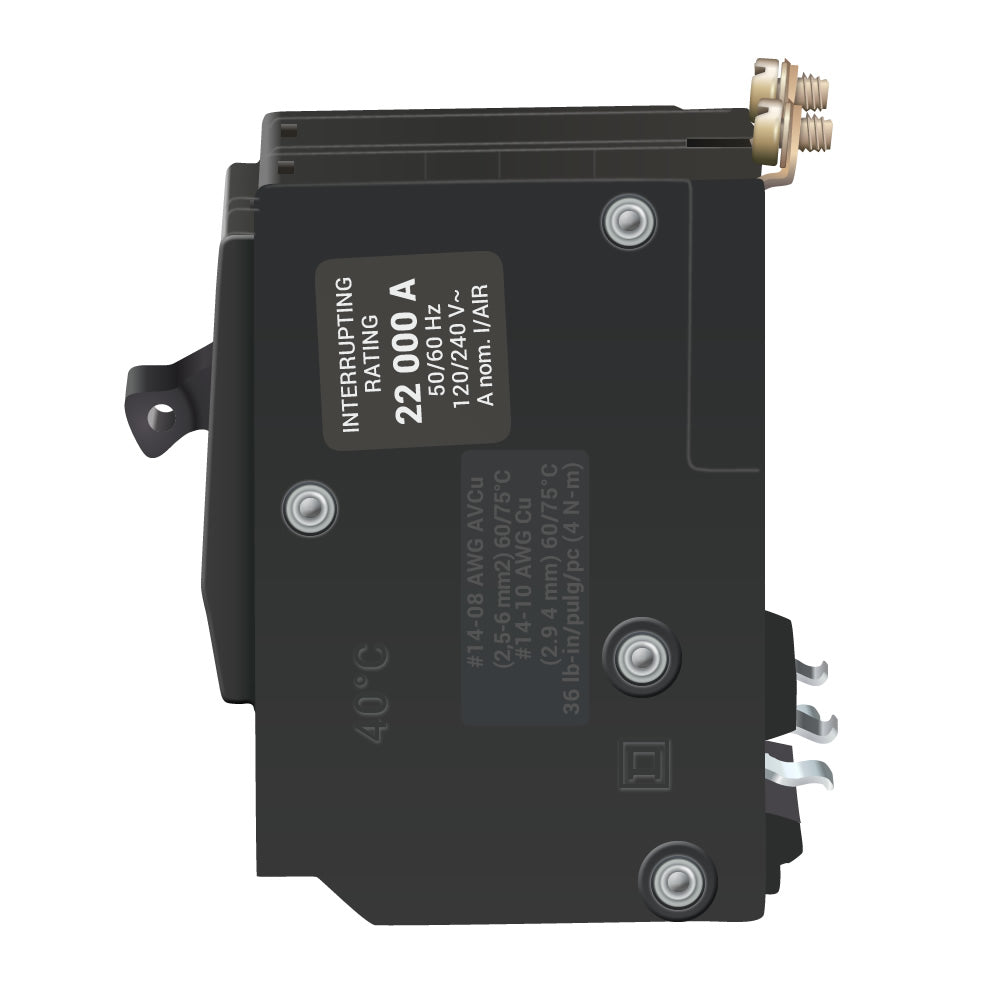

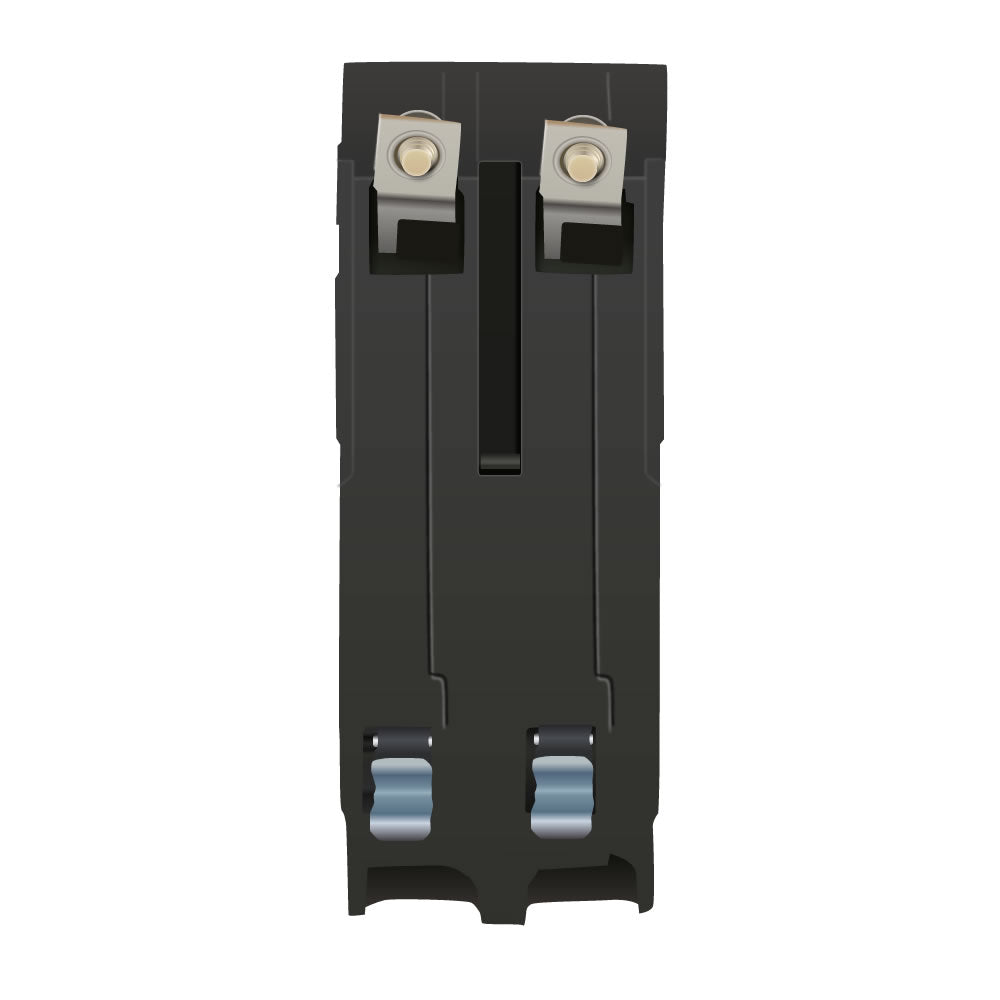

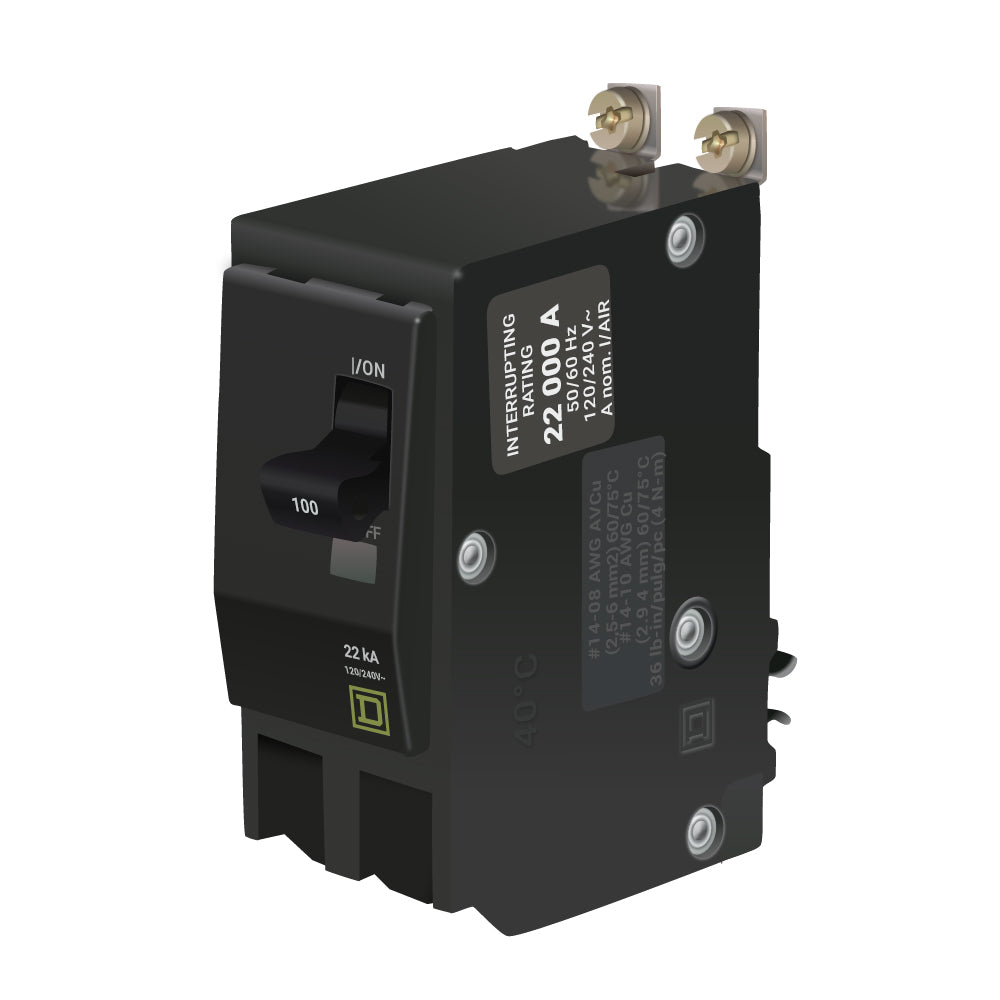

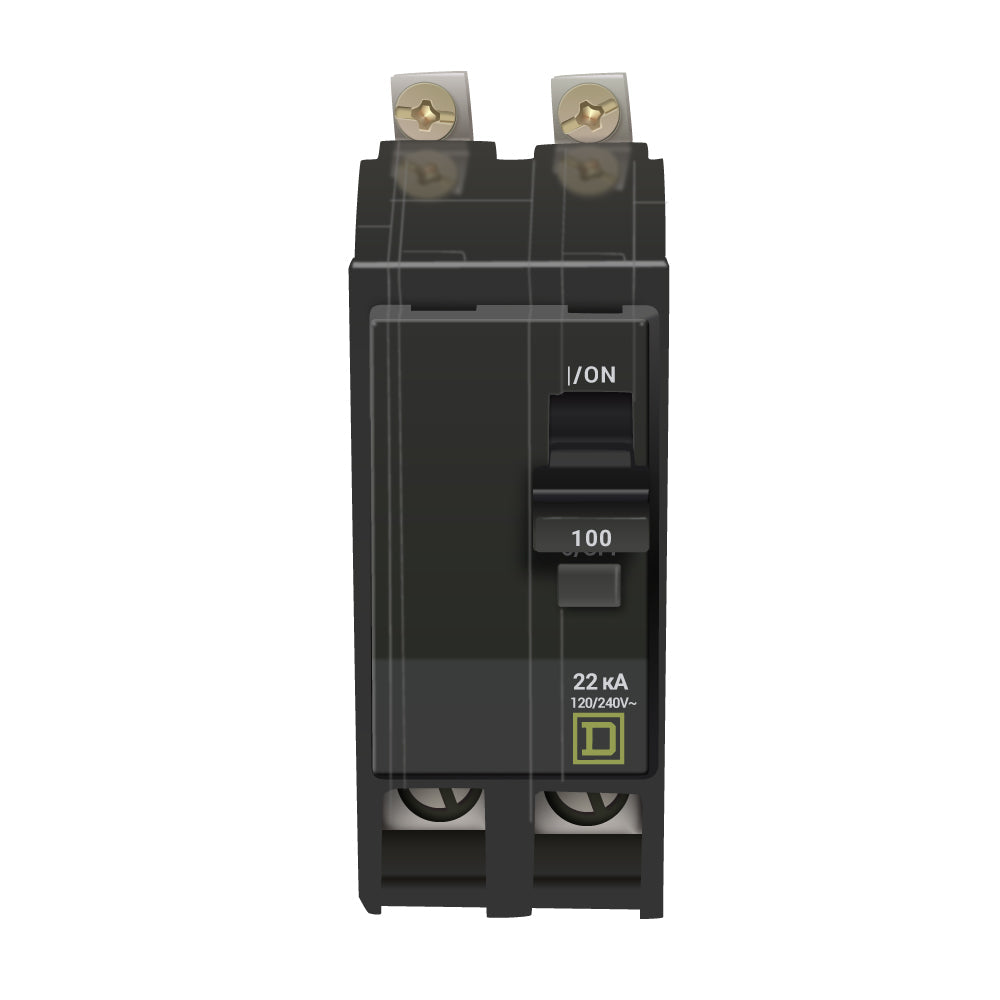

QOB2100VH - Square D Bolt-On 100 Amp Breaker
Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 100 Amps and interrupting rating of 22 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 4 - 300 AWG.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 100 A
- System Voltage: 120 V AC, 120/240 V AC, 240 V AC
- Mounting Type: Bolt-on
- Number of Poles: 2P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
- Number of Panel Spaces: 2
- Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
- Certifications: CSA, UL listed
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Square D Product
- Dimensions (H x W x L): 3.5" x 1.5" x 2.91"
Alt model: q0b2100vh
