9007C54G - Square D - 10 Amp Electric Limit Switch
10 Amp - 600 Volt
Schneider Electric
SKU: 9007C54G
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

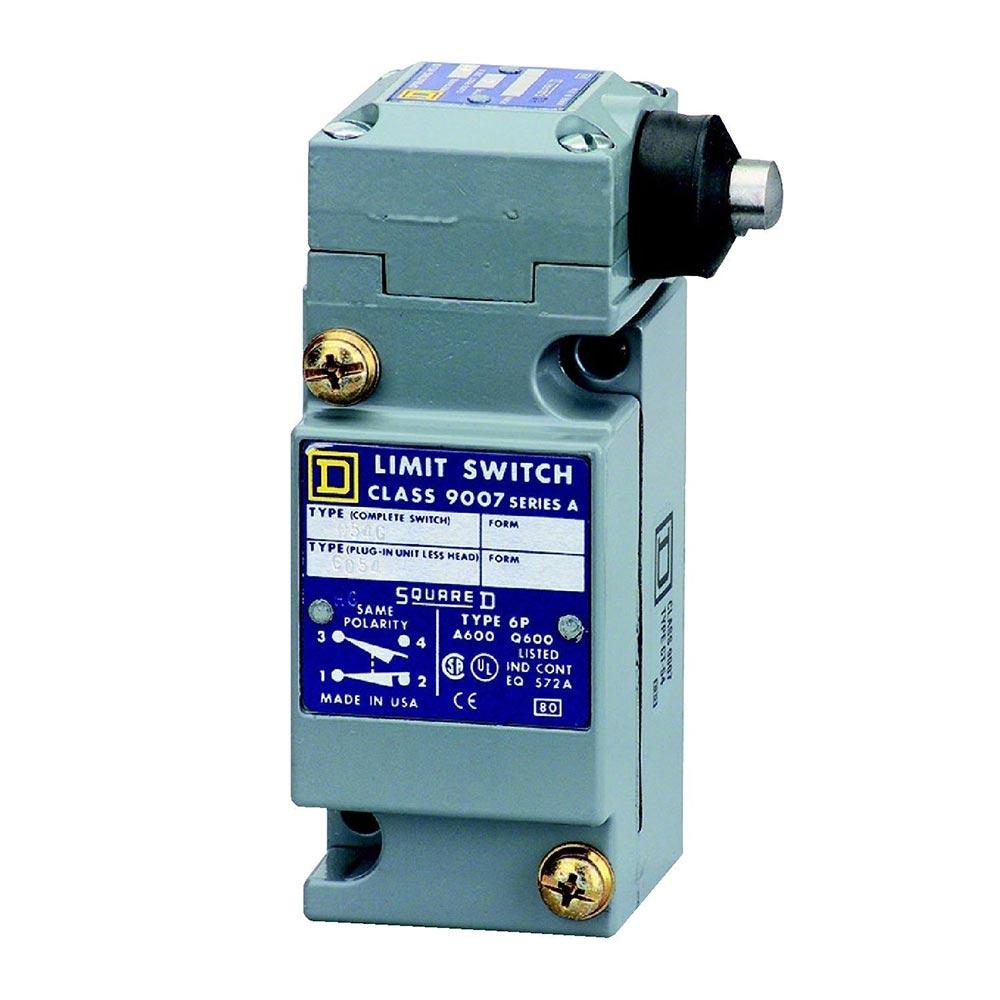

9007C54G - Square D Electric Limit Switch
Schneider Electric / Square D Heavy Duty Limit Switch Its Comapct and Easy to Install limit switches bodies are die-cast zinc alloy with adjustable side push rod plunger head and action type spring return Limit switch can withstand a temperature of -0 to 185 deg F Schneider Electric limit switch has a contact rate of 120/240/480/600 Vac 50/60 Hz 10 Ampere 125/250/600 Vdc 10 Ampere Heavy-duty limit switch is UL listed and CSA certified.
Specifications:
- Range of product: 9007
- Product specific application: Standard box
- Device short name: 9007C
- Body type: Plug-in
- Head type: Plunger head
- Material: Metal
- Fixing mode: By the body
- Movement of operating head: Linear
- Type of operator: Stainless steel spring return side plunger (-)
- Switch actuation: On end
- Type of approach: 1 direction lateral approach
- Electrical connection: (AWG 22...AWG 12) screw-clamp terminals, 1...2
- Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
- Number of poles: 1
- Contacts type and composition: NC-NO
- Contact operation: Snap action
- Positive opening: Without
- Sale per indivisible quantity: 1
- Body material: Zinc
- Head material: Zinc
- Switch function: SPDT-DB
- Contact form: Form Z
- Contacts material: Silver contacts
- Terminals description ISO n Degree 1: (1-2)NC, (3-4)NO
- Repeat accuracy: +/- 0.001 in linear travel of cam
- [Ie] rated operational current: 1.2 Aat 600 V AC, A600 conforming to NEMA, 0.1 Aat 600 V DC, Q600 conforming to NEMA
- [Ithe] conventional enclosed thermal current: 0.416666666666667
- [Ui] rated insulation voltage: 600 V degree of pollution 3 conforming to UL 508for contact block, 600 V degree of pollution 3 conforming to CSA C22.2 No 14for contact block
- [Uimp] rated impulse withstand voltage: 2.5 kV ACfor 1 min conforming to CE, 2.2 kV ACfor 1 min conforming to UL, 2.64 kV ACfor 1 s conforming to CSA
- Short-circuit protection: 10 A by CC fuse, protection type: non-time delay
- Electrical durability: 1000000 cycles
- Local signalling: Without
- Mechanical durability: 10000000 cycles
- Width: 1.55 in
- Height: 4.02 in
- Depth: 2.16 in
- Product weight: 1.25 lb(US)
- Shock resistance: 60 gn (duration = 9 ms) conforming to IEC 60068-2-27
- Vibration resistance: 25 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
- NEMA degree of protection: NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250, NEMA 1 conforming to Nema type 250
- IP degree of protection: IP67 conforming to IEC 60529
- Electrical shock protection class: Class 0 conforming to IEC 61140
- Ambient air temperature for operation: -20...185 Degree Ffor standard environment
- Ambient air temperature for storage: -20...185 Degree F
- Environmental characteristic: Standard environment
- Protective treatment: Epoxy powder coat
- Authentic Square D Product
- Voltage Rating: 600 Volt
- Dimensions (H x W x L): 4.02" x 1.55" x 2.16"
