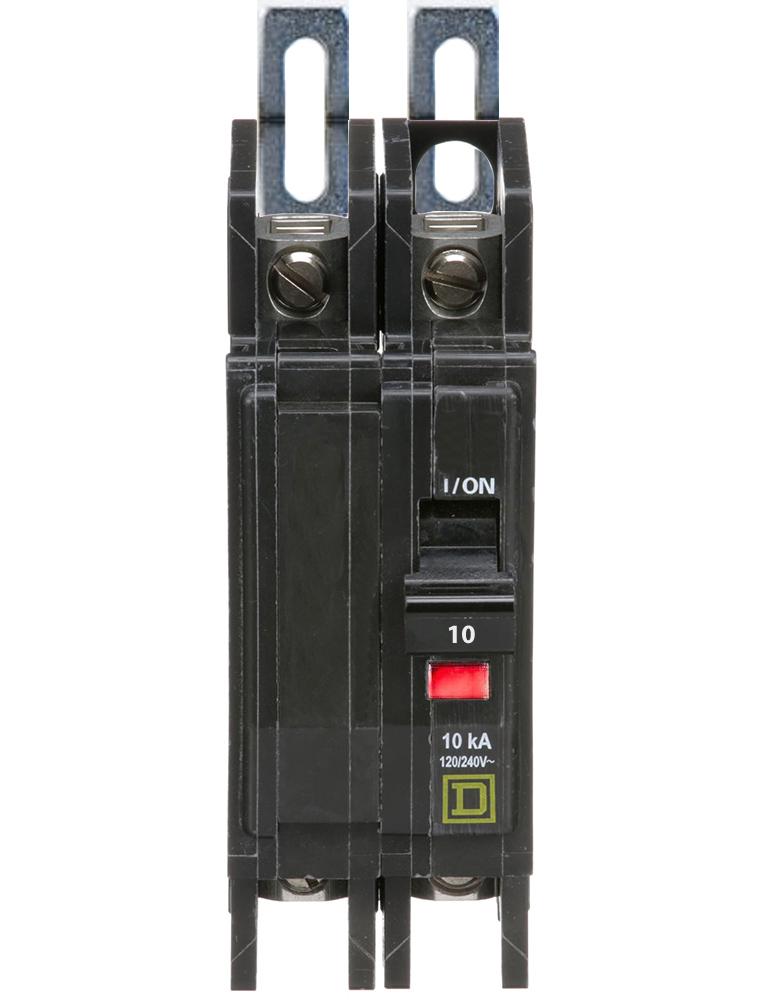

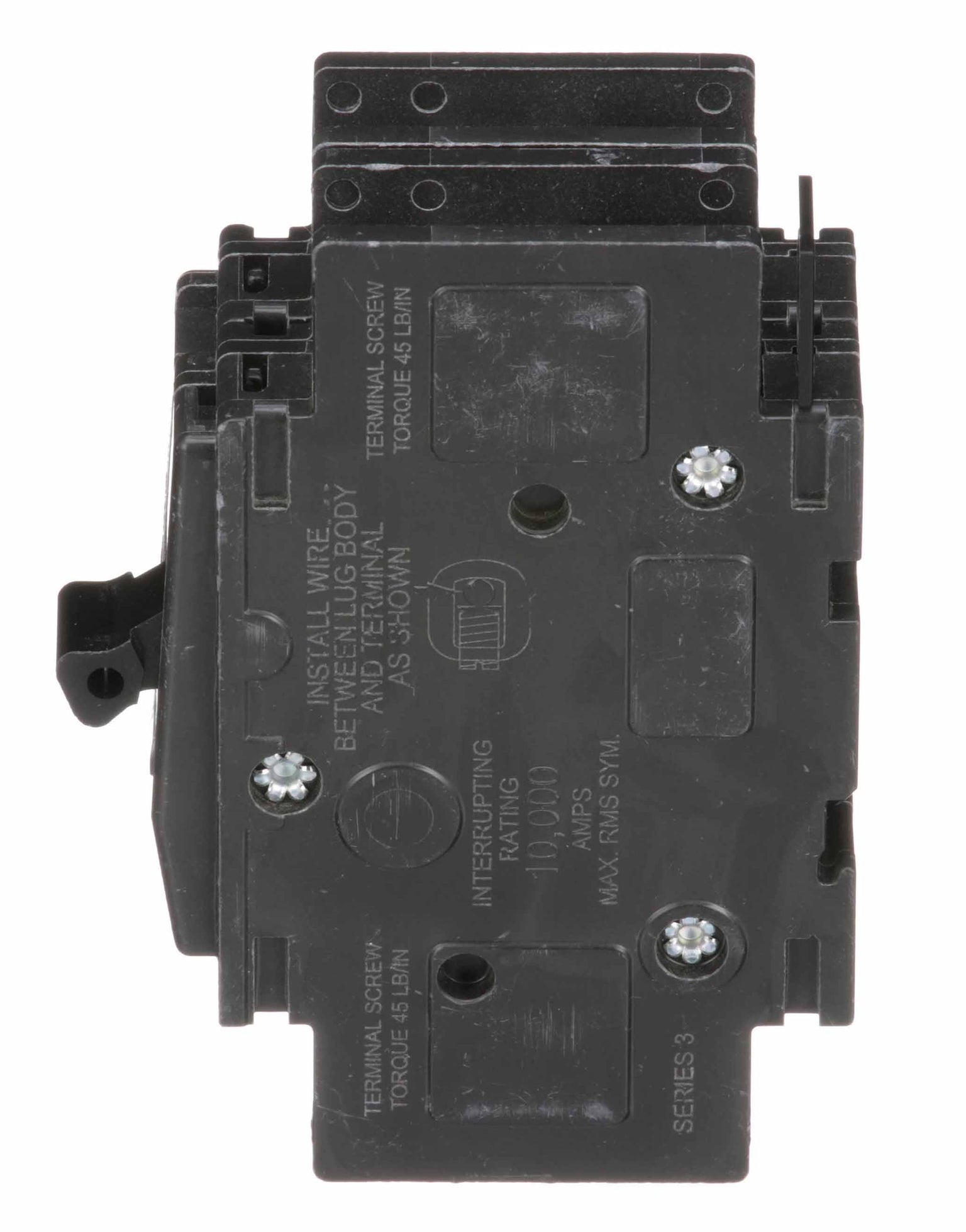

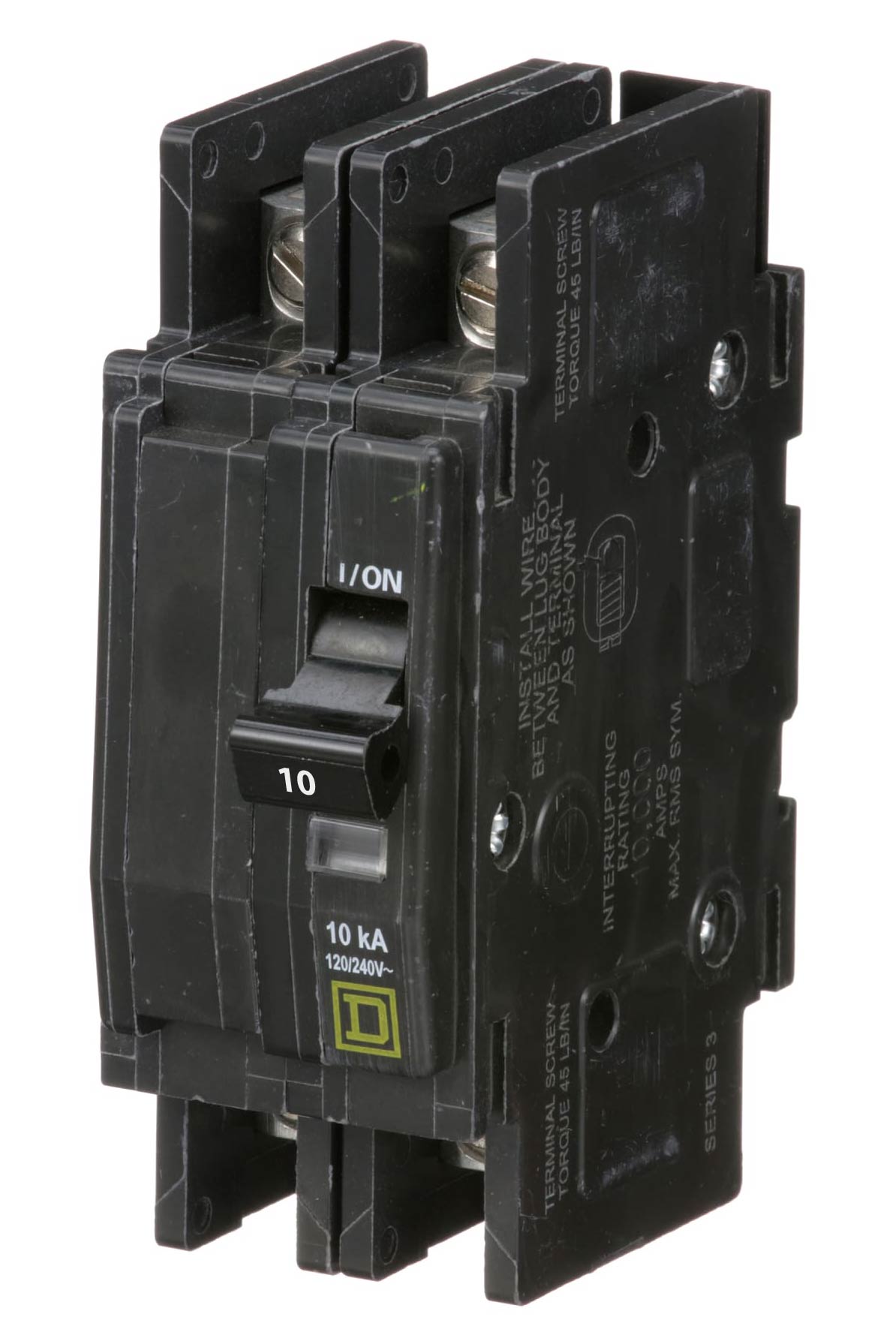

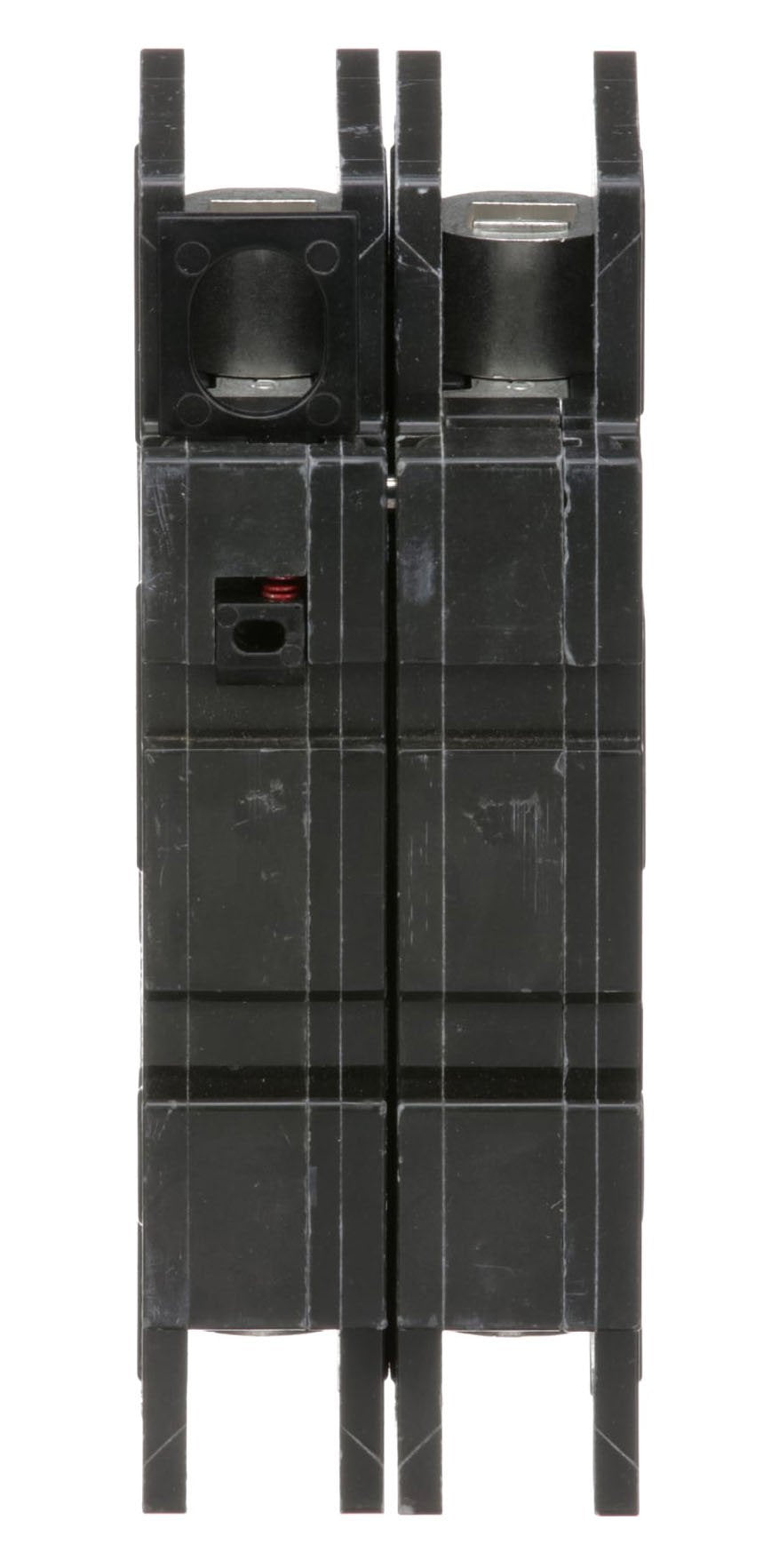

QOU210 - Square D - 10 Amp Circuit Breaker

Bolt-On - 10 Amp - 2 Pole - 240 Volt

QOU210 - Square D 10 Amp 2 Pole 240 Volt Bolt-On Molded Case Circuit Breaker
QOU210 - Square D - 10 Amp Circuit Breaker
QOU210 - Square D - 10 Amp Circuit Breaker
QOU210 - Square D - 10 Amp Circuit Breaker

Images are for reference only

QOU210 - Square D - 10 Amp Circuit Breaker

Bolt-On - 10 Amp - 2 Pole - 240 Volt

Regular price $39.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

QOU210 - Square D Bolt-On Molded Case Circuit Breaker

Square D QOU series double pole 10 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions.

Specifications:

  • Product or component type: Miniature circuit-breaker
  • Range of product: QOU
  • Circuit breaker type: Standard
  • Line Rated Current: 10 A
  • Number of Poles: 2P
  • Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
  • Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
  • System Voltage: 120 V AC, 120/240 V AC, 48 V DC
  • Mounting mode: Unit mount
  • AWG gauge: AWG 14...AWG 2 (aluminium/copper)
  • Height: 4.45 in
  • Depth: 2.95 in
  • Width: 1.5 in
  • Product certifications: CSA, IEC, UL listed
  • Authentic Square D Product
  • Dimensions (H x W x L): 4.45" x 1.5" x 2.95"

Alt model: q0u210
