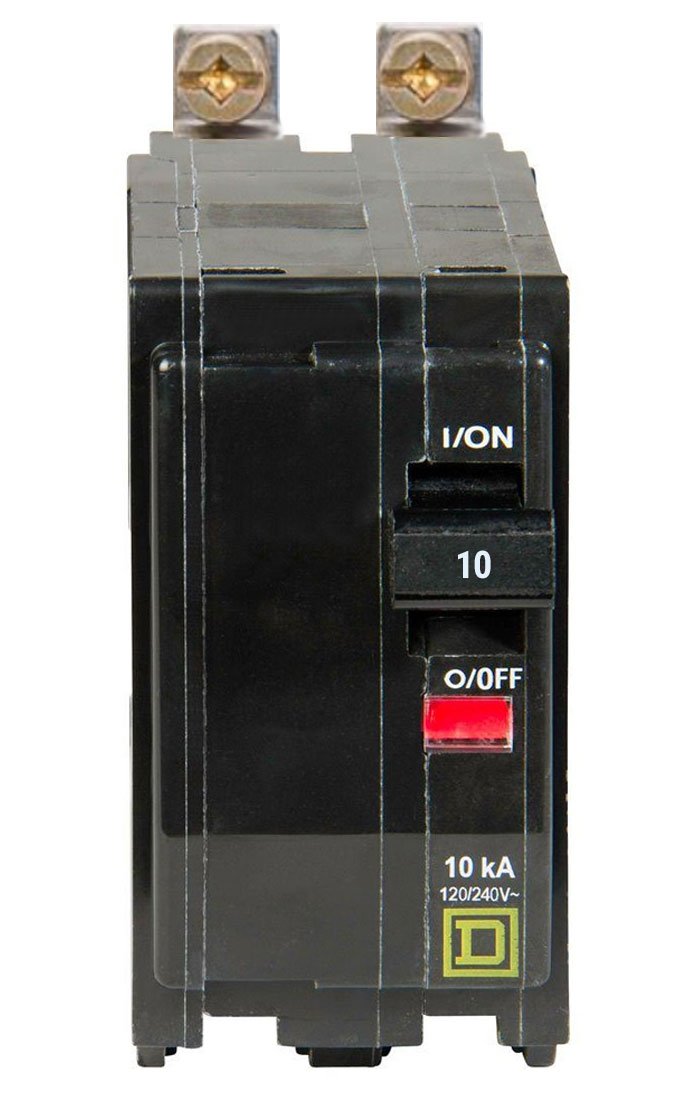

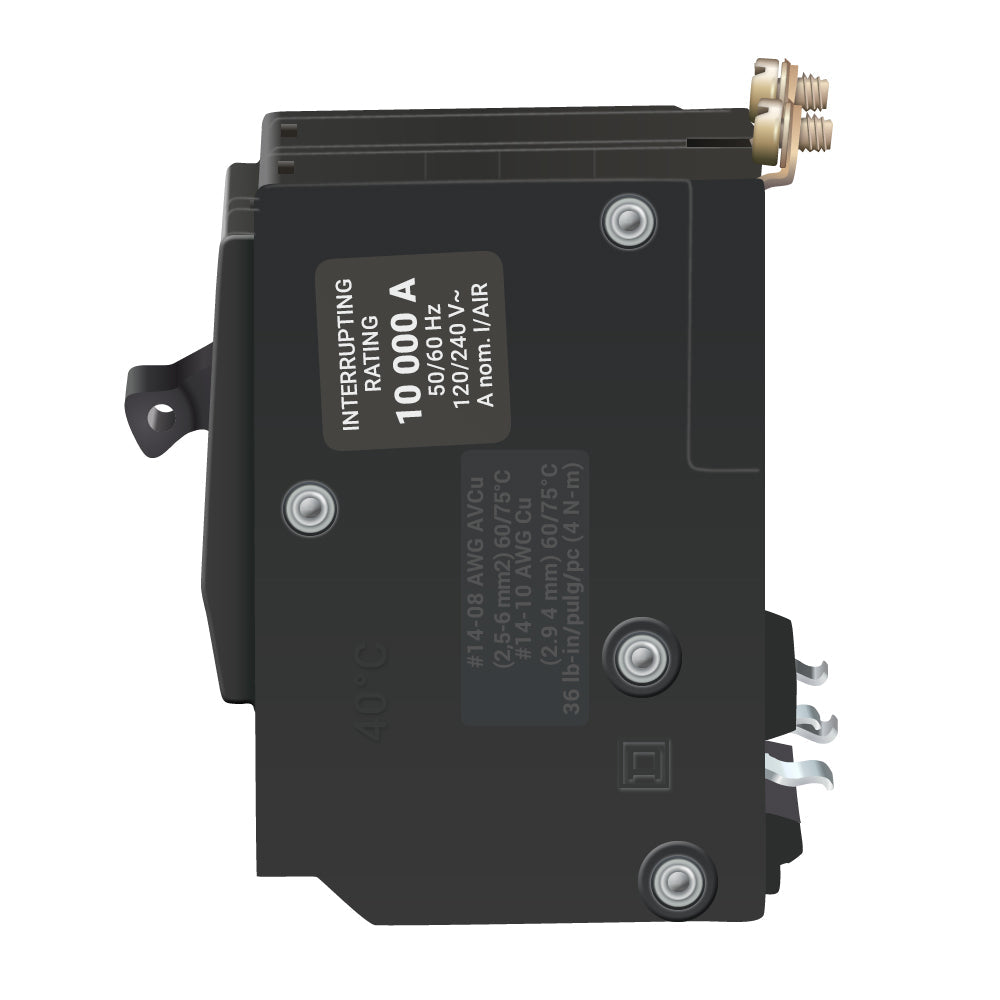

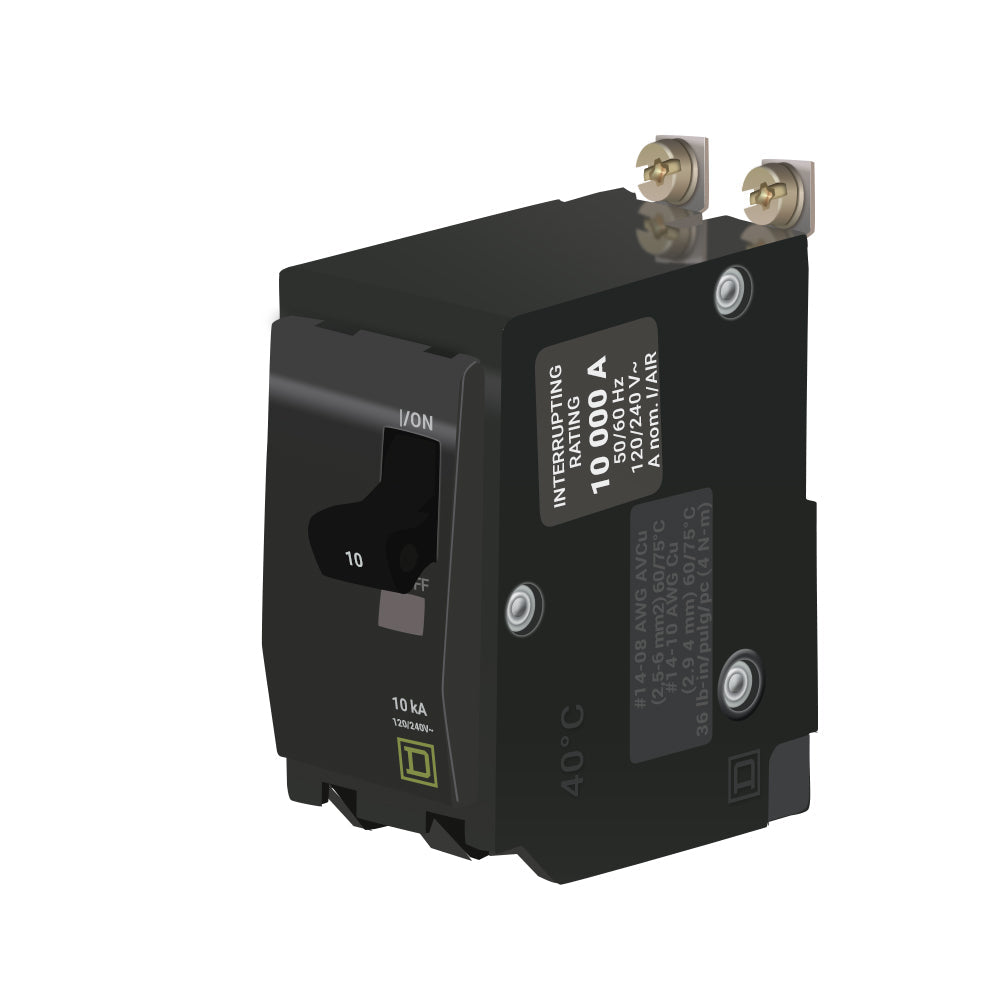

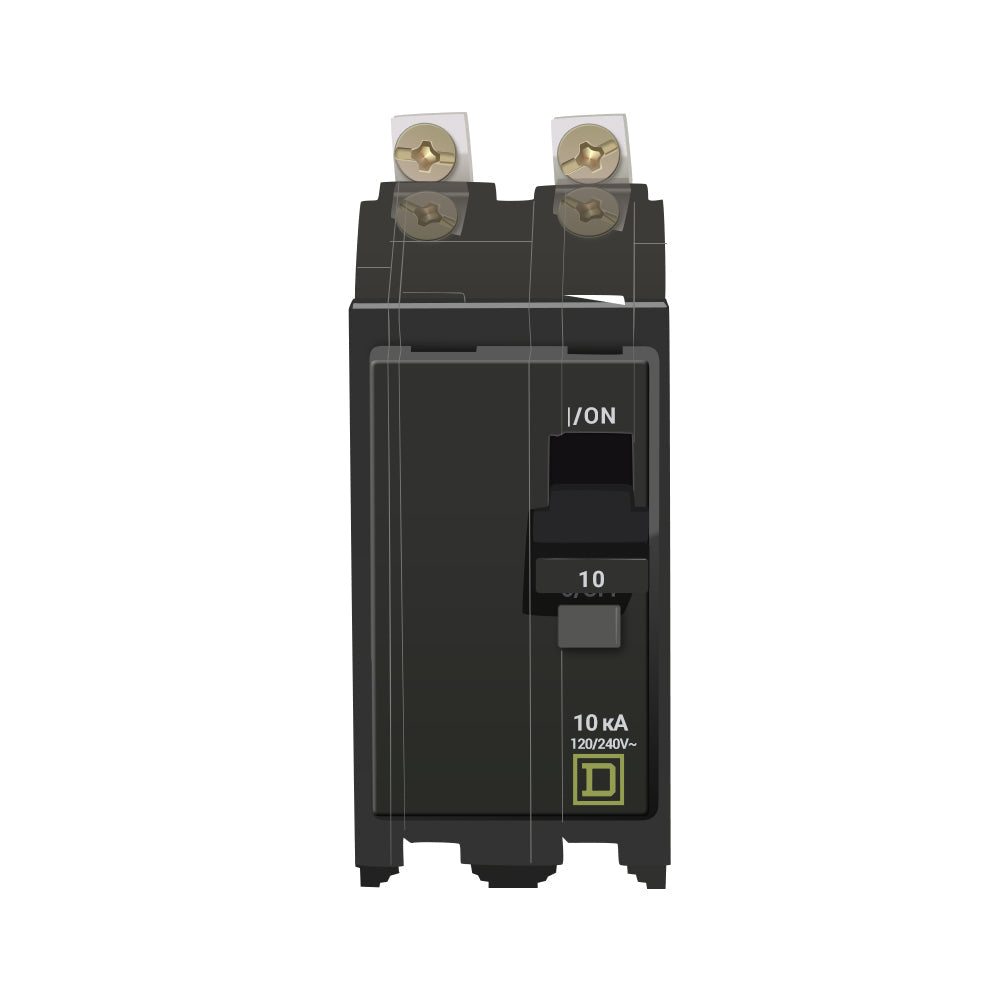

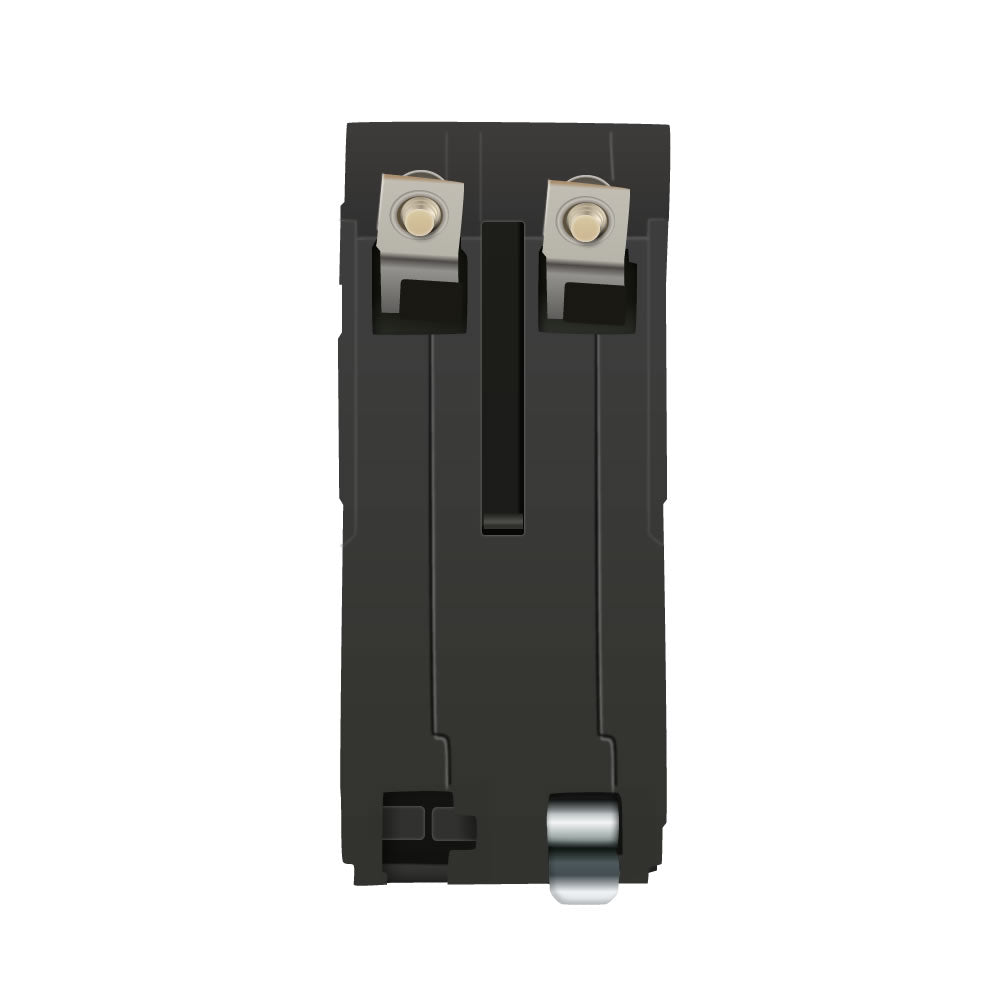

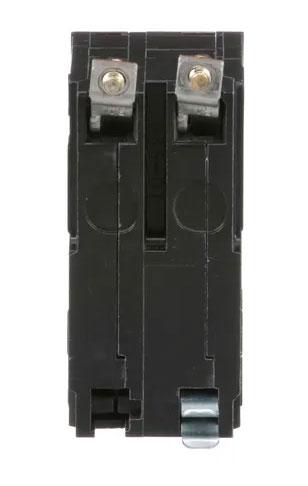

QOB210 - Square D Bolt-On Circuit Breaker
Square D QOB series single phase double pole 10 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting of 10 kiloampere at 120V functions long-time and instantaneous.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 10 A
- System Voltage: 120 V AC, 120/240 V AC, 48 V DC
- Mounting Type: Bolt-on
- Number of Poles: 2P
- Circuit Breaker Type: Standard
- Ratings: Not rated
- Electrical Connection: Pressure plate
- Number of Panel Spaces: 2
- Wire Size: AWG 14...AWG 8 (copper or aluminium)
- Height: 3 in
- Depth: 2.91 in
- Width: 1.5 in
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Schneider Electric / Square D Product
- Dimensions (H x W x L): 3" x 1.5" x 2.91"
Alt model: q0b210
