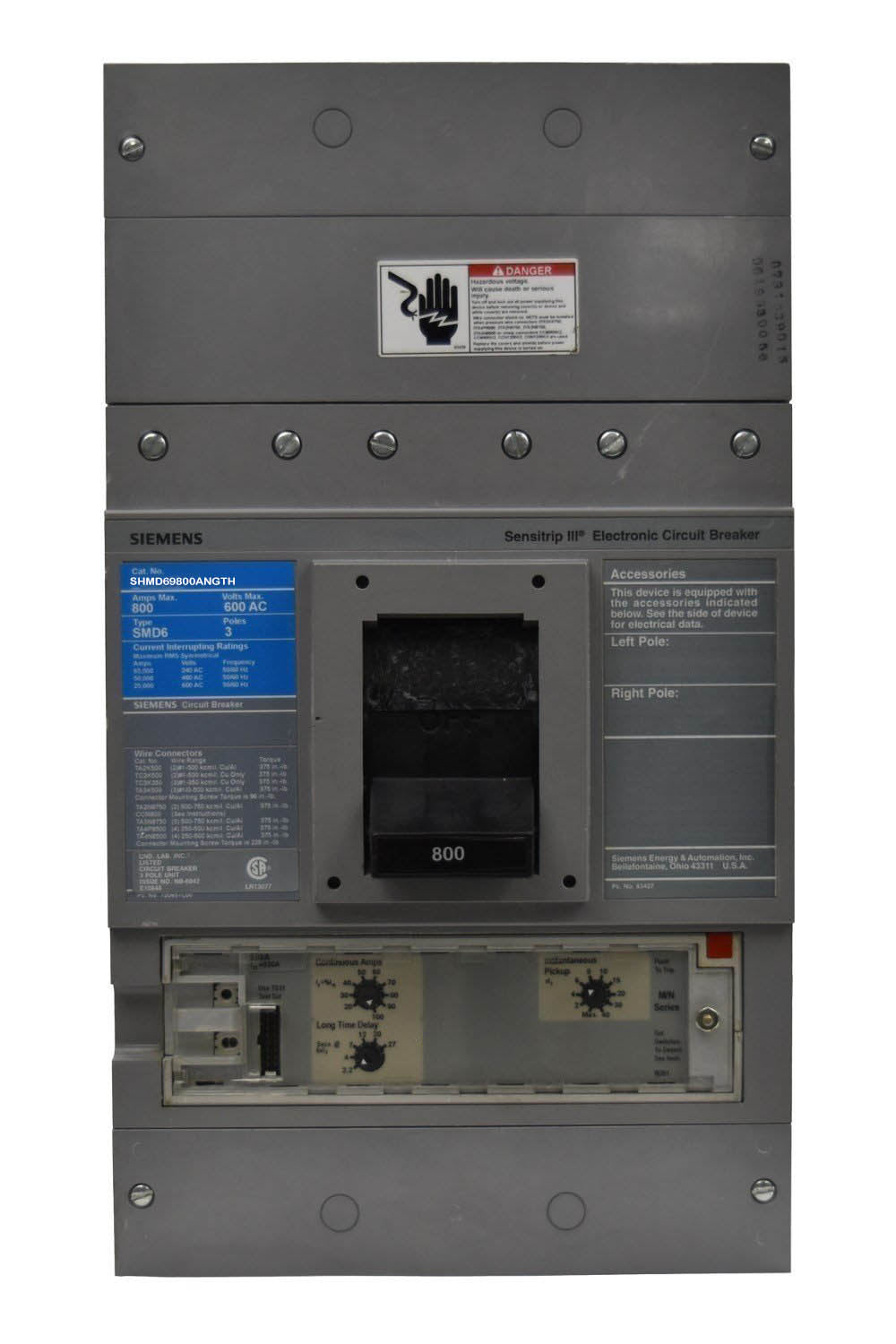

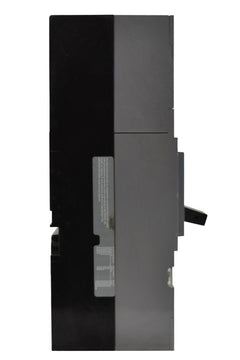

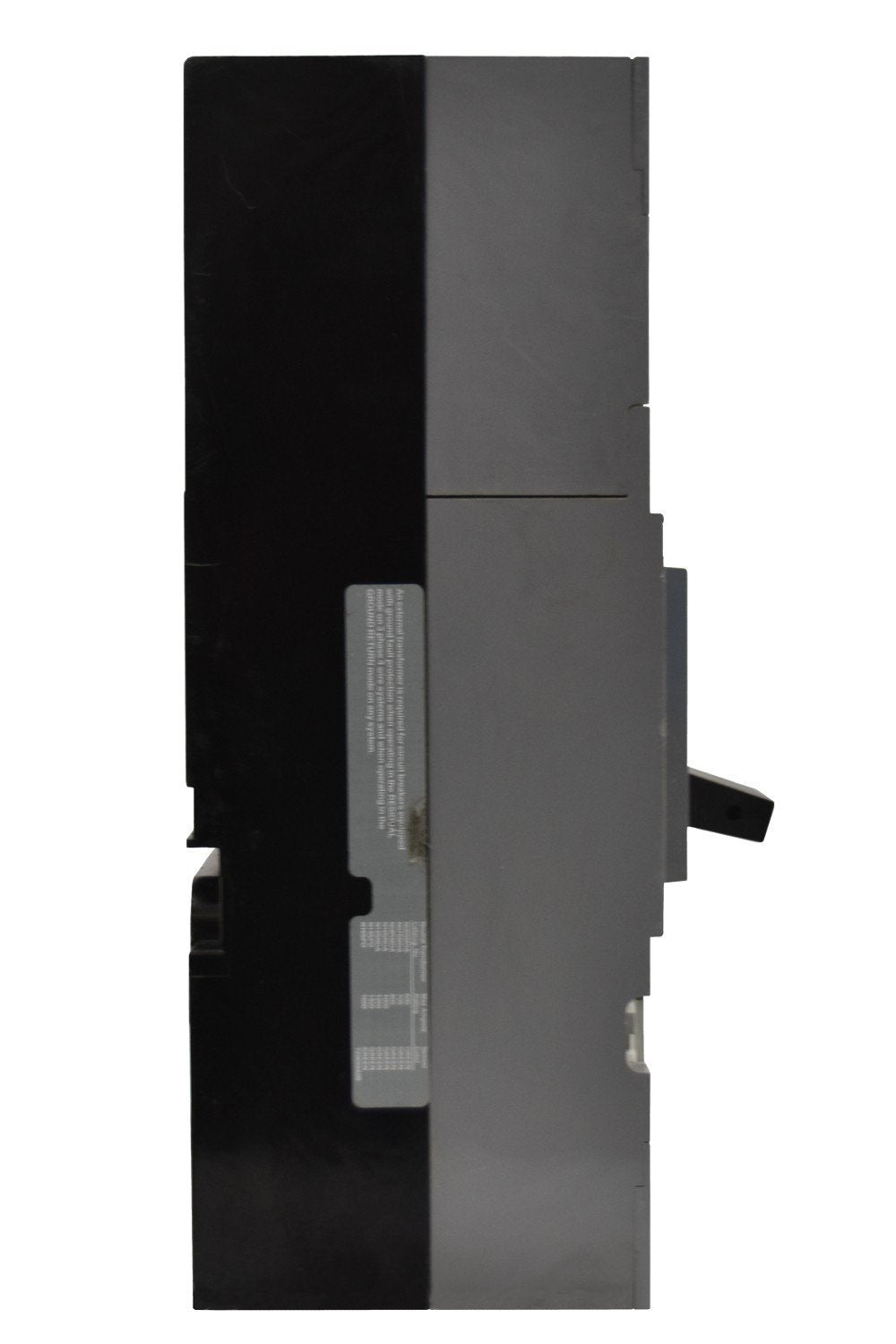

SHMD69800ANGTH - Siemens - Molded Case
Siemens
SKU: SHMD69800ANGTH
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - SHMD69800ANGTH Siemens Molded Case
-
Part Number:
SHMD69800ANGTH -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
MD Frame -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9 x 16 x 6. -
Weight:
62
Standards
Product Description - SHMD69800ANGTH Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP (ETU). STANDARD 40 DEG C BREAKER MD FRAME WITH HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 800A 3-POLE BREAKER (50KAIC AT 600V) (65KAIC AT 480V) LSIG. SENSITRIP FUNCITIONS. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE: 1/0AWG - 500KCM (CU/AL), 100 PERCENT RATED BREAKER. DIMENSIONS (W x H x D) IN: 9 x 16 x 6.
