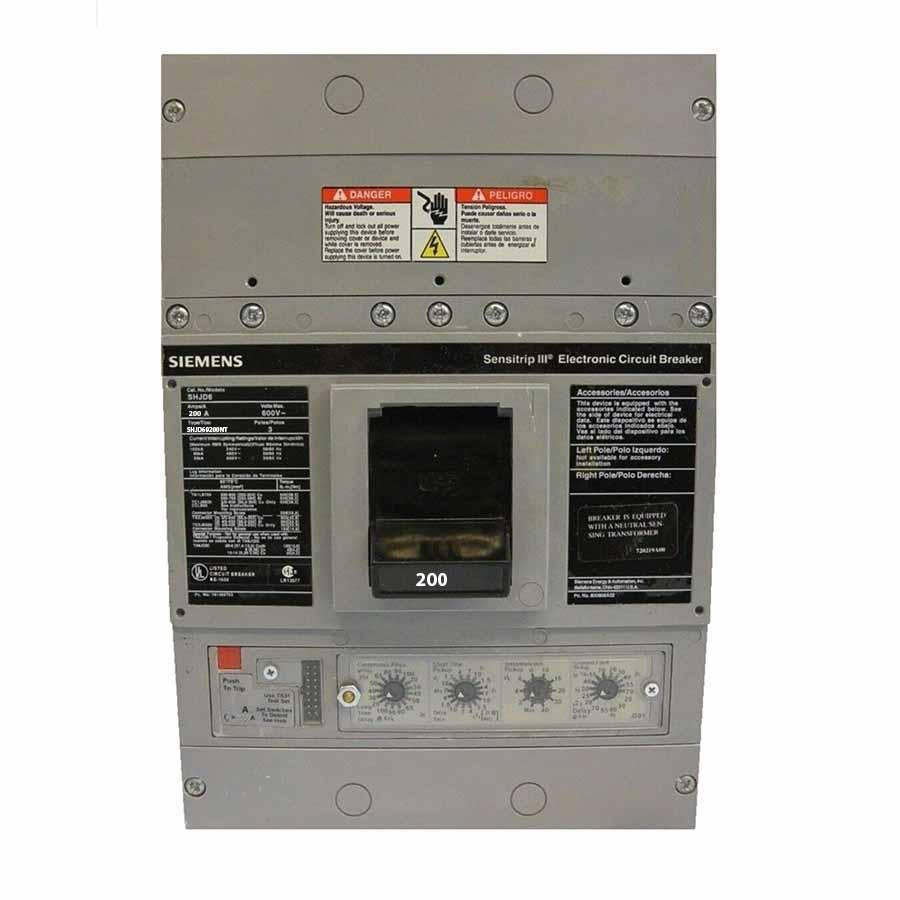

SHJD69200NT - Siemens - Molded Case Circuit Breaker
Bolt-On - 200 Amp - 3 Pole - 600 Volt
Siemens / ITE
SKU: SHJD69200NT
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - SHJD69200NT - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
SHJD69200NT -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SHJD -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
11" x 7.5" x 4"
-
Weight:
21 lbs
Standards
Product Description - SHJD69200NT - Siemens Breakers Molded Case Circuit Breakers
Siemens Low Voltage Sentron Molded Case Circuit Breaker With Electronic Trip (Etu). Standard 40 Deg C Breaker Jd Frame With High Breaking Capacity. Meets Ul 489 / Iec 60947-2 Standards. 200A 3-Pole Breaker (35Kaic At 600V) (65Kaic At 480V) Lsi. Sensitrip Funcitions. Special Features: Line And Load Side Lugs (Ta2J6500) Wire Range: 3/0Awg - 500Kcm (Cu) / 4/0Awg - 500Kcm (Al)
