FXD62B100L - Siemens - Molded Case Circuit Breaker
Bolt-On - 100 Amp - 2 Pole - 600 Volt
Siemens/ITE
SKU: FXD62B100L

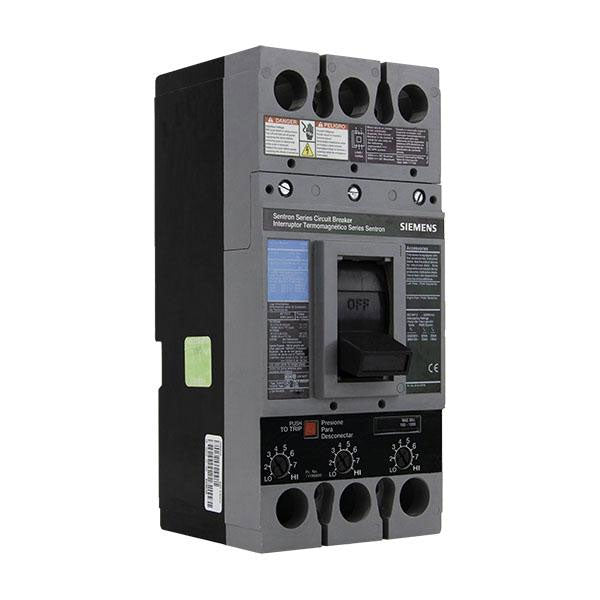

Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - FXD62B100L - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
FXD62B100L -
Manufacturer:
-
Family:
Sentron Series -
Pole:
2 -
Amp
100 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
FXD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
9.5" x 4.5" x 4"
-
Weight:
7 lbs
Standards
Product Description - FXD62B100L - Siemens Breakers Molded Case Circuit Breakers
Siemens, Sentron Series, type FXD, 2P, 1PH, 100A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, bolt-on, UL listed for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic molded case circuit breakers.
