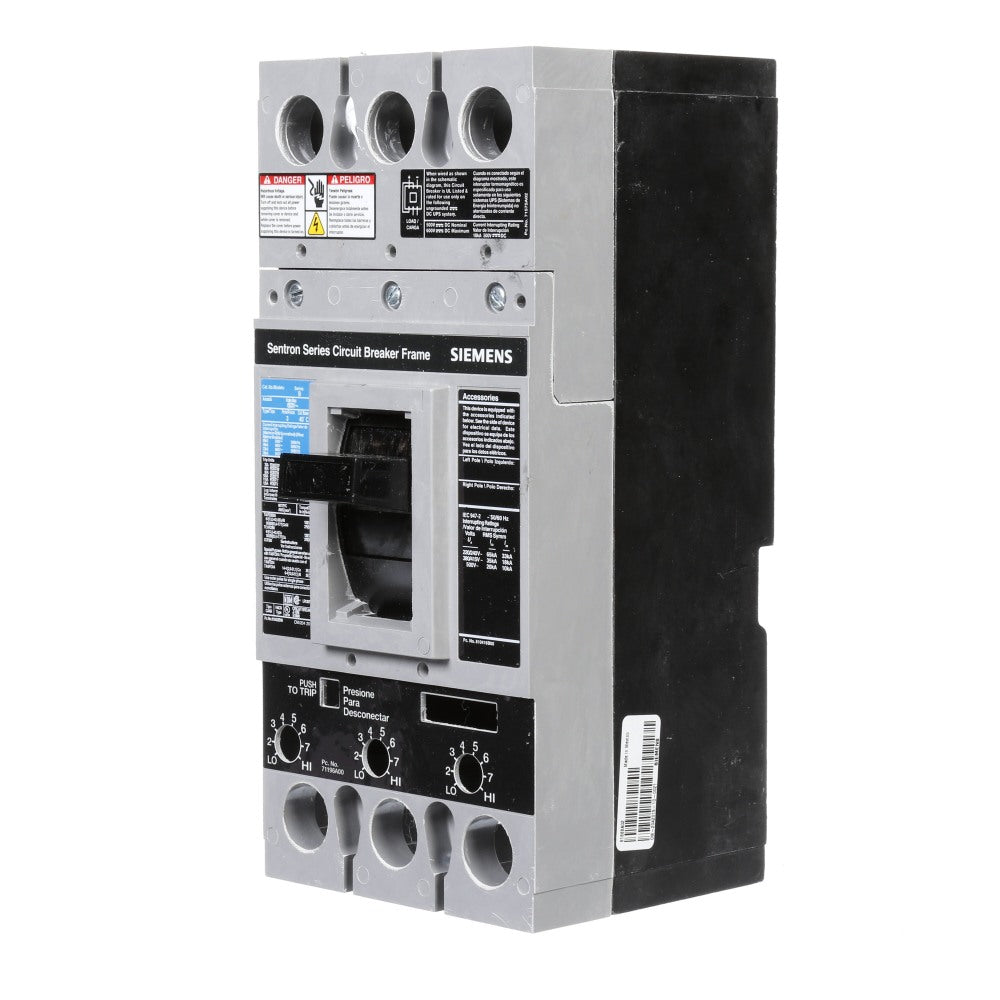

Name: FD63B250L - Siemens - Circuit Breakers
Brand: Siemens
SKU: FD63B250L
Price: 959.99 USD
Availability: InStock

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":41097283305552,"title":"New","option1":"New","option2":null,"option3":null,"sku":"FD63B250L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FD63B250L - Siemens - Circuit Breakers - New","public_title":"New","options":["New"],"price":95999,"weight":4550,"compare_at_price":null,"inventory_management":"shopify","barcode":"83305552","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41193235316816,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"FD63B250L_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FD63B250L - Siemens - Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":67199,"weight":4550,"compare_at_price":null,"inventory_management":"shopify","barcode":"35316816","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.

Overview

Product Specifications - FD63B250L - Siemens Circuit Breakers

Part Number:

FD63B250L
Manufacturer:

Siemens Breakers
Family:

Sentron Series
Pole:

3
Amp:

250
Volt:

600
Phase:

3

Category:

Circuit Breakers
Connection:

Feed-Thru
Type:

FD
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

100kA@480V

Dimensions

Dimensions (HxWxD):

4.5 in x 9.5 in x 4 in
Weight:

10.031 lbs

Standards

Product Description - FD63B250L - Siemens Circuit Breakers

Siemens Low Voltage Sentron Molded Case Circuit Breaker With Thermal - Magnetic Trip Unit. Standard 40 Deg C Breaker Fd Frame With Standard Breaking Capacity. Meets Ul 489 / Iec 60947-2 Standards. 250A 3-Pole Breaker (22Kaic At 600V) (35Kaic At 480V). Special Features: Line And Load Side Lugs (Ta1Fd350A) Wire Range: 6Awg - 350Kcm (Cu) / 4Awg - 350Kcm (Al). Dimensions (W X H X D) In: 4.5 X 9.5 X 4.
