Overview

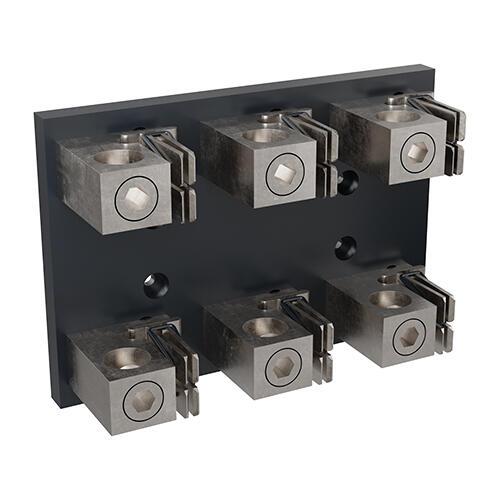

Product Specifications - 64003J - Mersen / Ferraz Shawmut Fuse Block
-
Part Number:
64003J -
Manufacturer:
-
Volt:
600
-
Category:
-
Type:
640
Dimensions
-
Dimensions (HxWxD):
10.5 x 10 x 3.62 -
Weight:
16.45 lbs
Standards
Product Description - 64003J - Mersen / Ferraz Shawmut Fuse Block
A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30A, 60A and the new 100A SJ fuse blocks feature a unique adder block configuration which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring-reinforced or non-spring reinforced clips. Space saving options are now available in the 30A and 100A configurations which are noted in the product selection tables.
