Overview
Product Specifications - KLPC200 - Littelfuse Low Voltage
-
Part Number:
KLPC200 -
Manufacturer:
-
Family:
Powr-Gard -
Amp:
200 -
Volt:
600
-
Category:
-
Connection:
Bolt-In -
Type:
KLPC -
AIC Ratings:
300kA@600V
Dimensions
-
Dimensions (HxWxD):
2.5 x 3.75 -
Weight:
3 lbs
Standards
Product Description - KLPC200 - Littelfuse Low Voltage

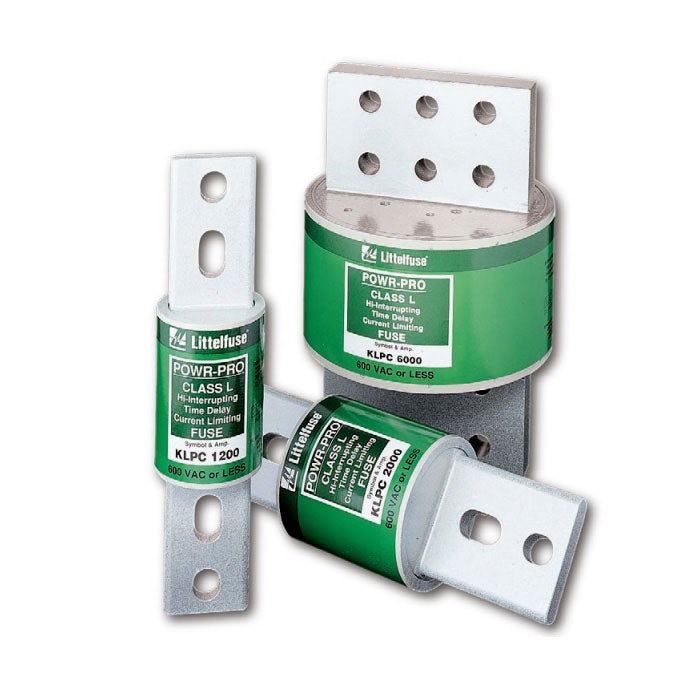

KLPC200: Littelfuse Powr-Gard Class L fuse with time delay and current-limiting properties, rated for 200A at 600Vac/480Vdc. It features a 300kA interrupting capacity at 600V and 20kA at 480V DC. It is 2.5" in diameter and UL and CSA certified for applications such as switchboard mains and motor control centers.
