Overview
Product Specifications - THQC1145WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
THQC1145WL -
Manufacturer:
-
Family:
Q-Line -
Pole:
1 -
Amp
45 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
THQC -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
3.75 x 1 x 3 -
Weight:
1 lb
Standards
Product Description - THQC1145WL - General Electrics Molded Case Circuit Breakers

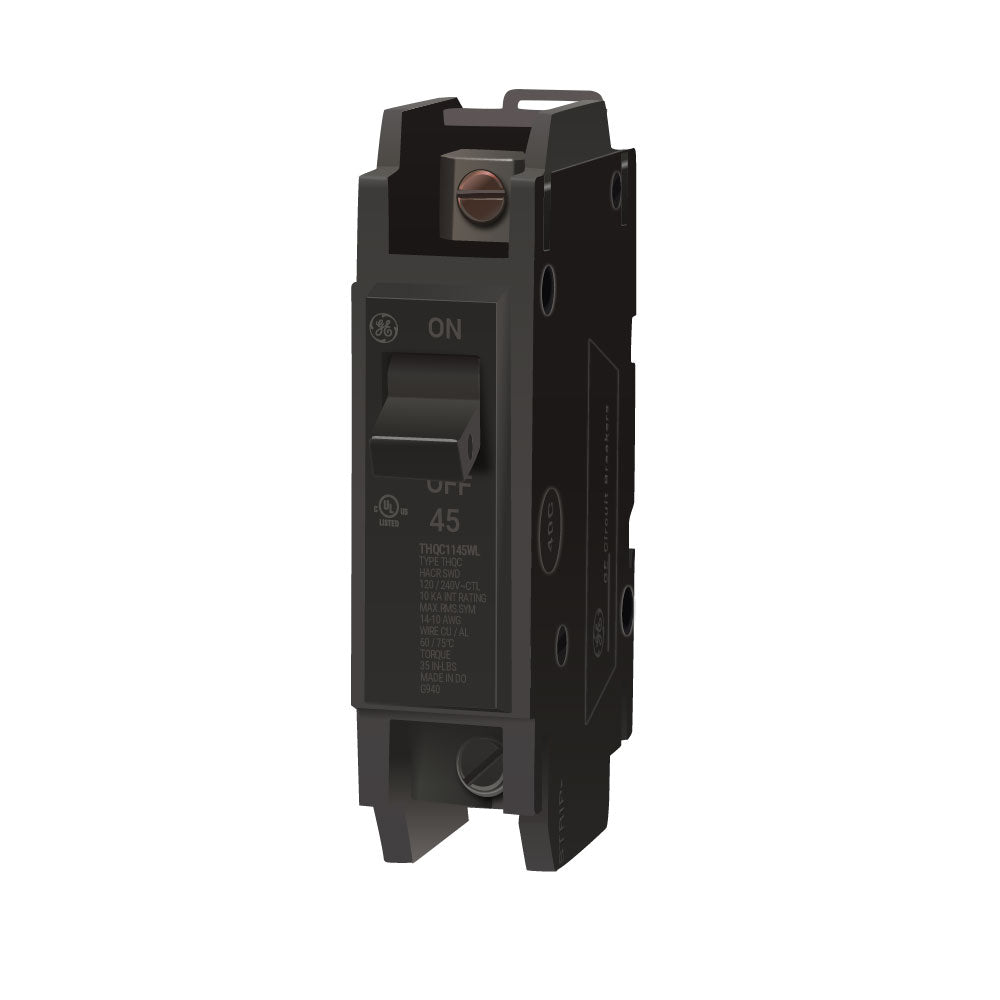

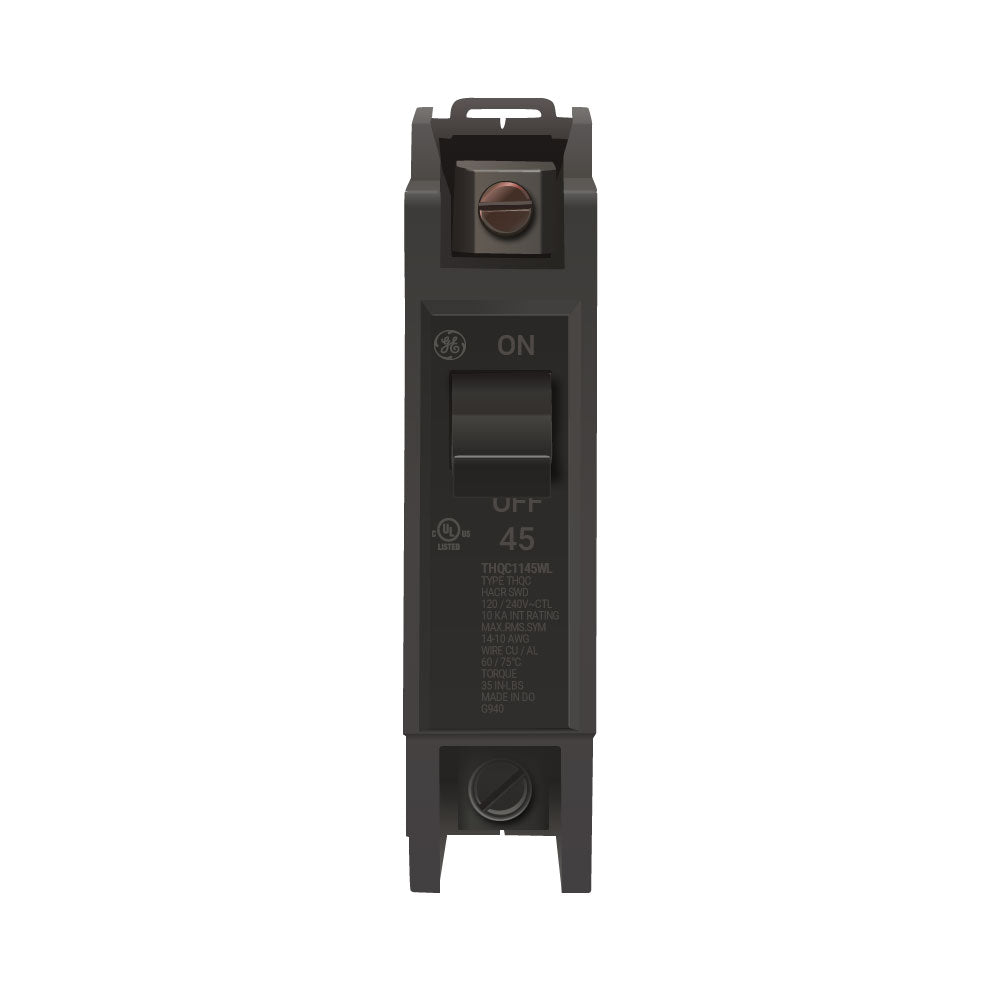

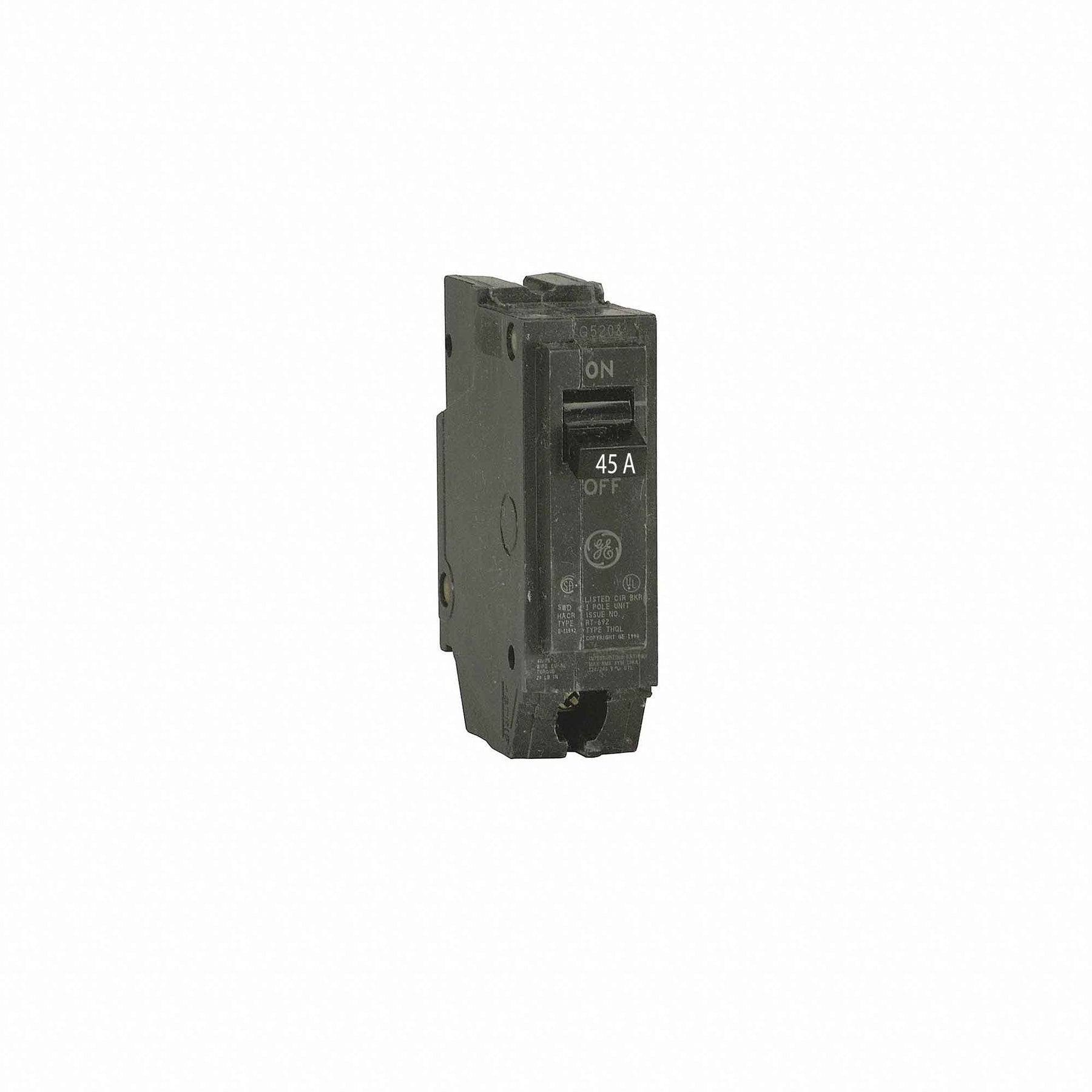

The THQC1145WL, part of General Electric's THQC series, is a one-pole (1P) Feed-Thru molded case circuit breaker designed for efficient circuit protection. With a current rating of 45A at 120/240V, this UL-listed breaker ensures reliable operation in various applications. The Feed-Thru design simplifies wiring, and it comes complete with Long-Time and Instantaneous trip functions. Equipped with line & load side lug terminals, the THQC1145WL offers easy installation and robust performance with Thermal Magnetic technology.
