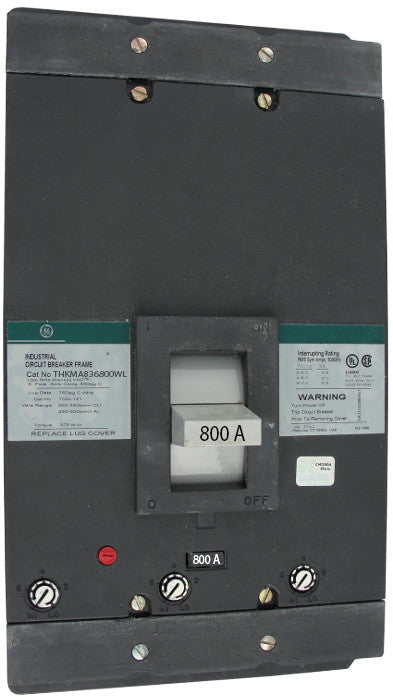

THKMA836800WL - General Electrics - Molded Case Circuit Breakers
Feed-Thru - 800 Amp - 3 Pole - 600 V
GE
SKU: THKMA836800WL
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - THKMA836800WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
THKMA836800WL -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
THKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
42.29 lb
Standards
Product Description - THKMA836800WL - General Electrics Molded Case Circuit Breakers
The THKMA836800WL is a Feed-Thru molded case circuit breaker from General Electric's K1200 Line, designed for comprehensive circuit protection. Classified as Type THKMA, this breaker features a 3P, 3PH configuration with an 800A current rating at 600V. Boasting a high interrupting capacity of 35kA@480V, it operates efficiently at 40ºC. This breaker is not suitable for reverse feed and comes complete with interchangeable trip functions, including Long-Time and Instantaneous trip functions, and line & load side lug terminals.
