Overview
Product Specifications - TFK236175WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFK236175WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
175 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Dimensions (HxWxD):
3.8 x 4.1 x 10.1 -
Weight:
15 lb
Standards

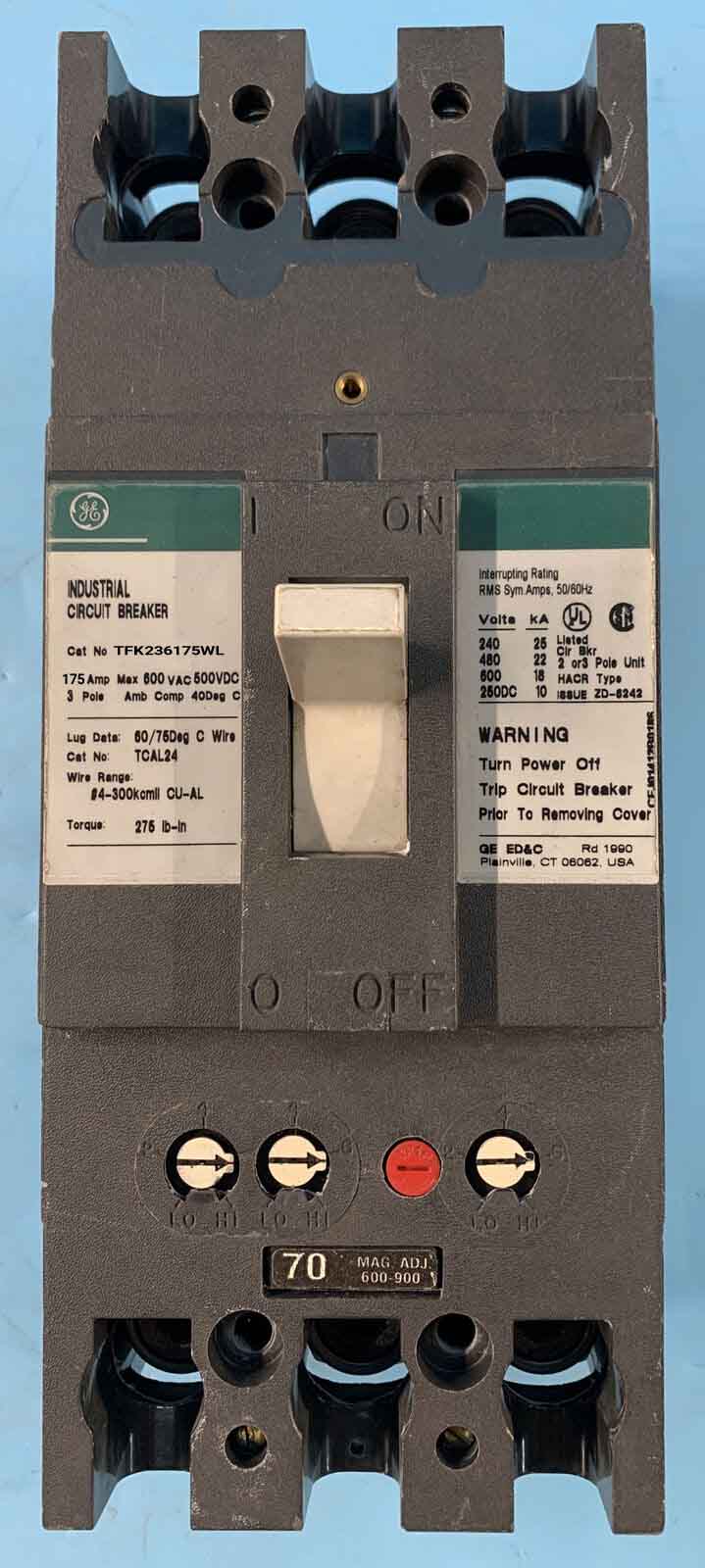

Product Description - TFK236175WL - General Electrics Molded Case Circuit Breakers
The TFK236175WL from General Electric's F225 Line is a 3P, 175A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40ºC, this breaker ensures reliable circuit protection. Featuring both line and load side lug terminals, it offers versatile connectivity for various applications. The TFK236175WL is equipped with an interchangeable trip unit, allowing users to adjust settings based on specific requirements. Its Feed-Thru design enhances adaptability for different configurations.
