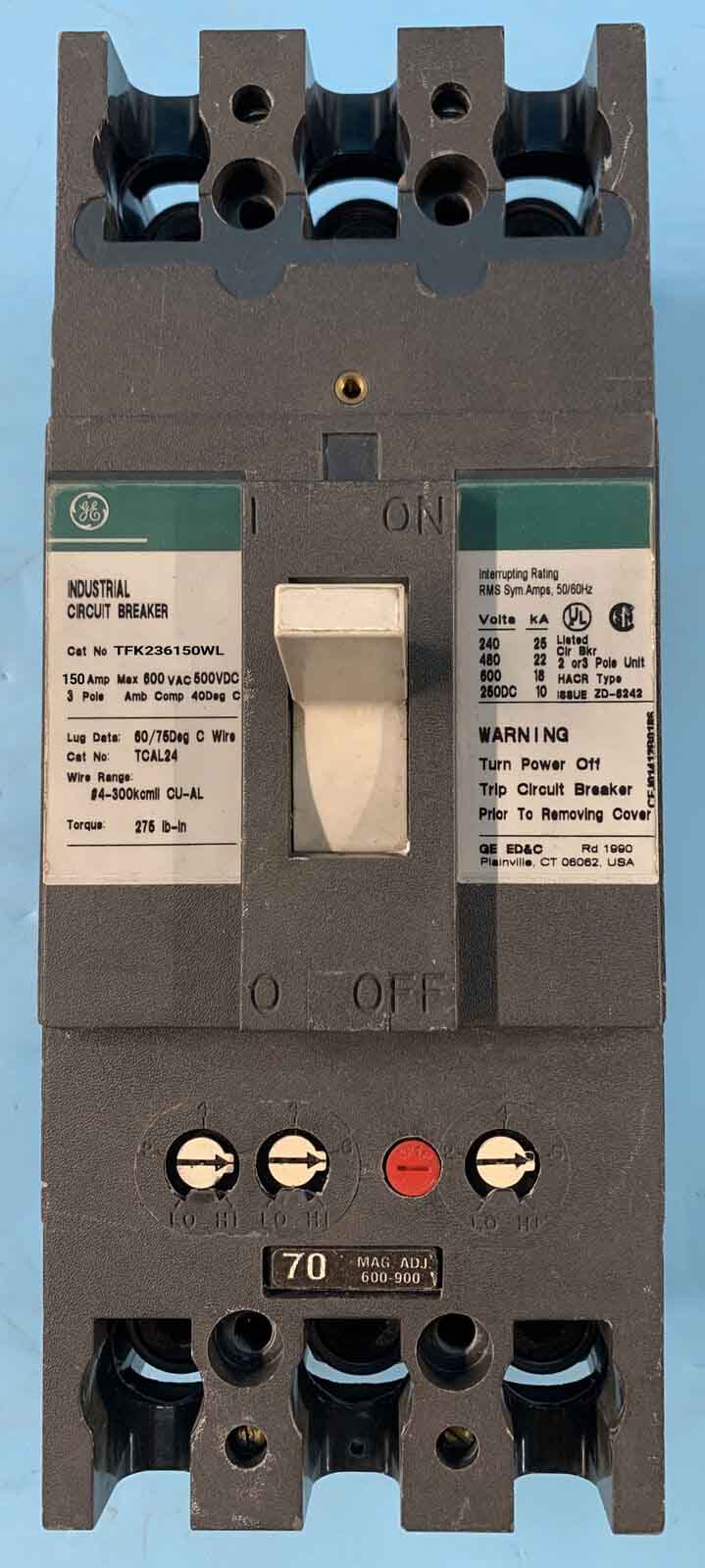

TFK236150WL - General Electrics - Molded Case Circuit Breakers
Feed-Thru - 150 Amp - 3 Pole - 600 V
GE
SKU: TFK236150WL
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - TFK236150WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFK236150WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Weight:
15 lb
Standards
Product Description - TFK236150WL - General Electrics Molded Case Circuit Breakers
As part of General Electric's F225 Line, the TFK236150WL is a 3P, 150A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40ºC, this breaker ensures reliable circuit protection. The inclusion of both line and load side lug terminals enhances its versatility, allowing for secure and easy connections. The TFK236150WL is equipped with an interchangeable trip unit, enabling users to adjust settings based on specific requirements. Its Feed-Thru design adds to its adaptability for different configurations.
