Overview
Product Specifications - TFK236110WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFK236110WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
110 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Weight:
15 lb
Standards
Product Description - TFK236110WL - General Electrics Molded Case Circuit Breakers

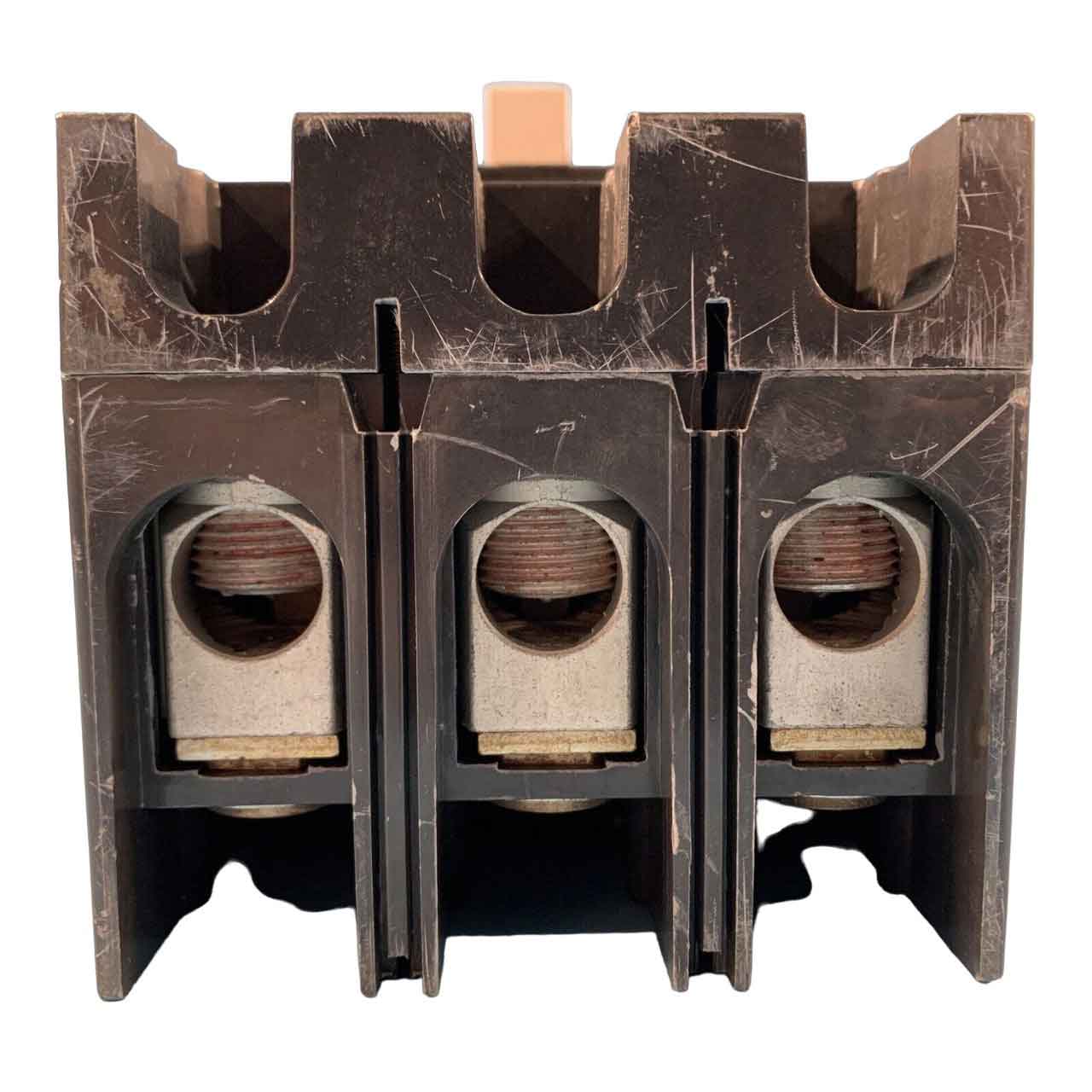

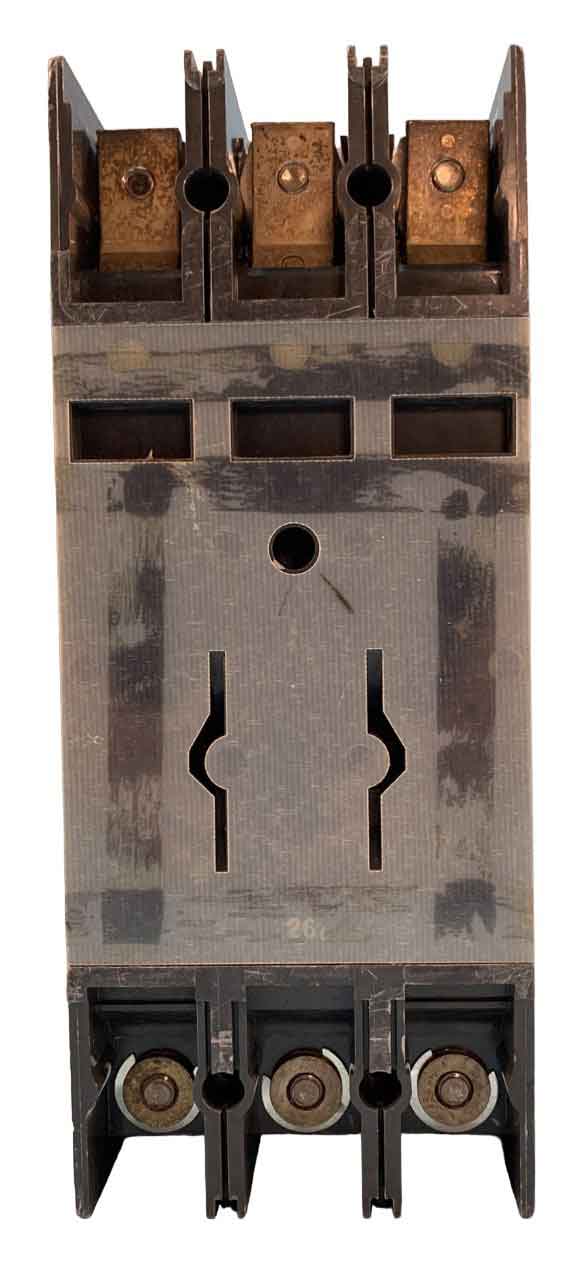

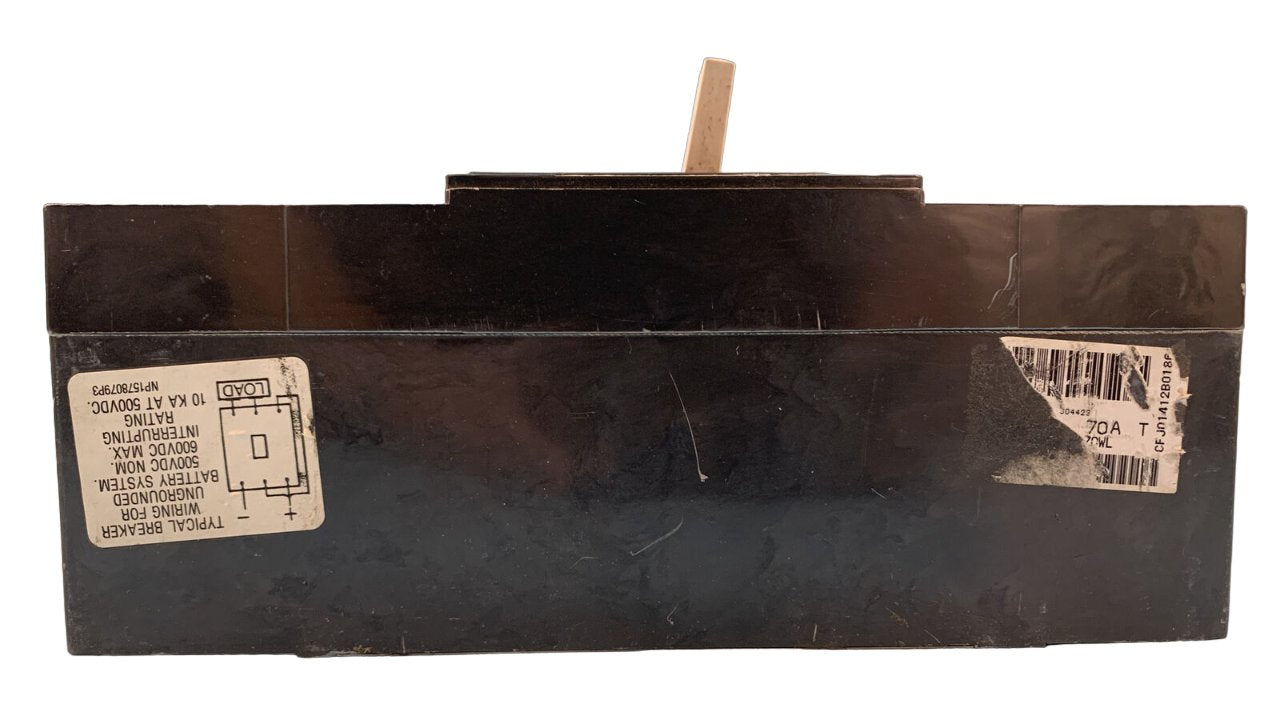

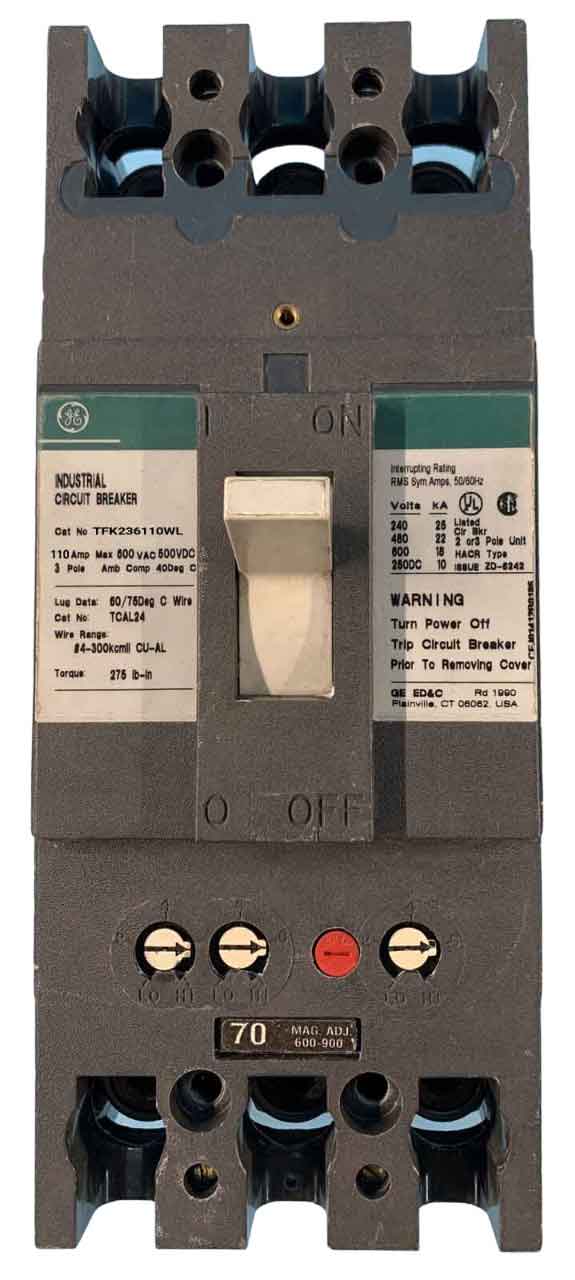

The TFK236110WL, belonging to General Electric's F225 Line, is a 3P, 110A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40ºC, this breaker ensures reliable circuit protection. It comes complete with both line and load side lug terminals, offering convenient and secure connections. The TFK236110WL features an interchangeable trip unit, allowing users to customize settings based on specific requirements. Its Feed-Thru design enhances adaptability for various configurations, making it suitable for diverse applications.
