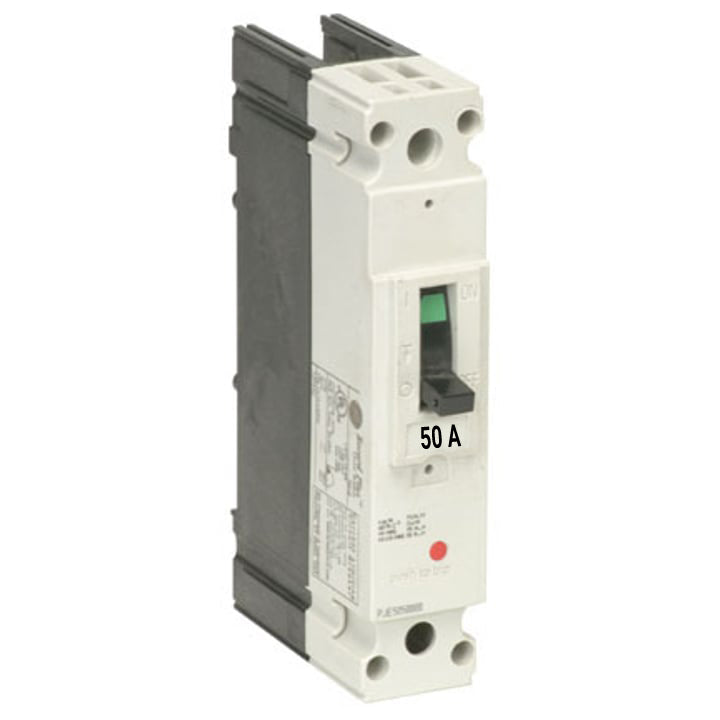

FBV16TE050RV - General Electrics - Molded Case Circuit Breakers
Bolt-On - 50 Amp - 1 Pole - 600 V
GE
SKU: FBV16TE050RV
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - FBV16TE050RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBV16TE050RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
1 -
Amp
50 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
FBV -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
8.75 x 3.5 x 4.75 -
Weight:
7 lb
Standards
Product Description - FBV16TE050RV - General Electrics Molded Case Circuit Breakers
FBV16TE050RV, this molded case circuit breaker from General Electric's Record Plus series features the FBV type and FB100 frame. Designed for single-phase (1PH) applications, it offers a 50A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On installation, combined with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, ensures optimal performance in your electrical setup.
