Overview
Product Specifications - FBN36TE080RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBN36TE080RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
3 -
Amp
80 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FBN -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
8.75 x 4.5 x 4.75 -
Weight:
7 lb
Standards
Product Description - FBN36TE080RV - General Electrics Molded Case Circuit Breakers

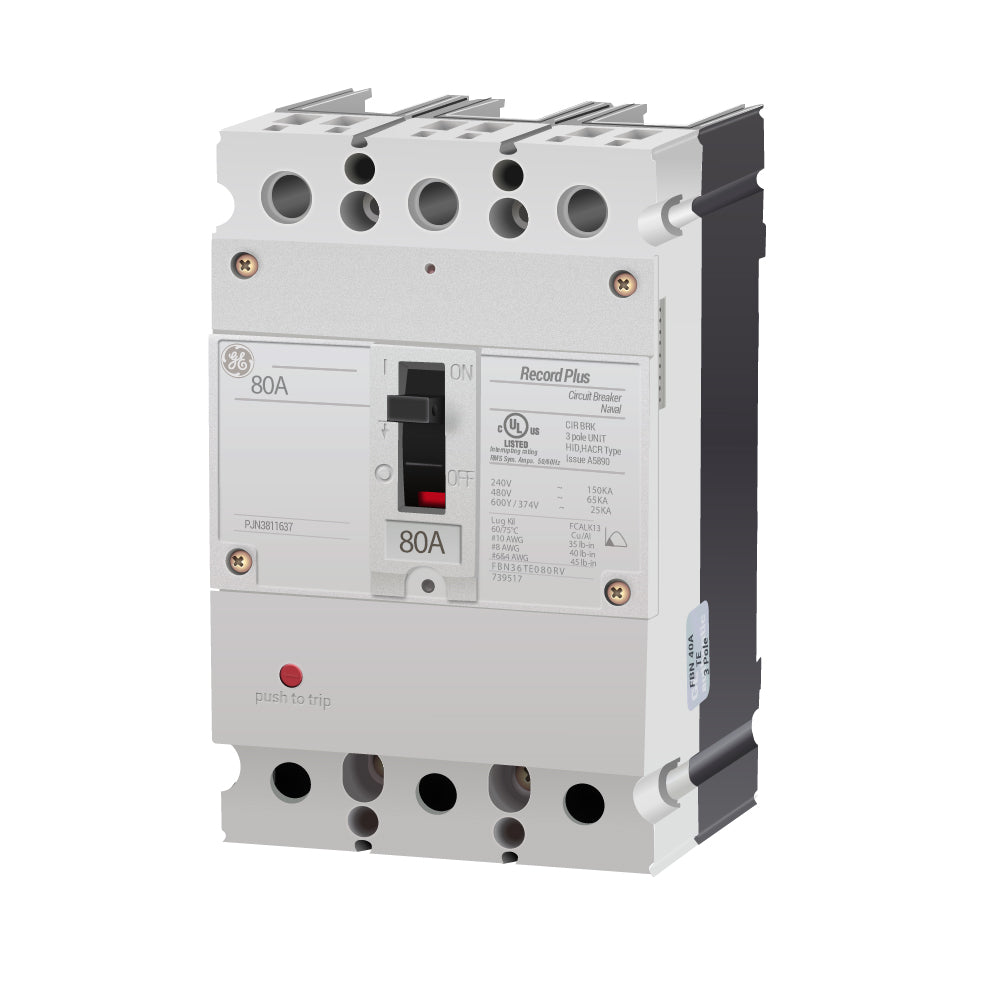

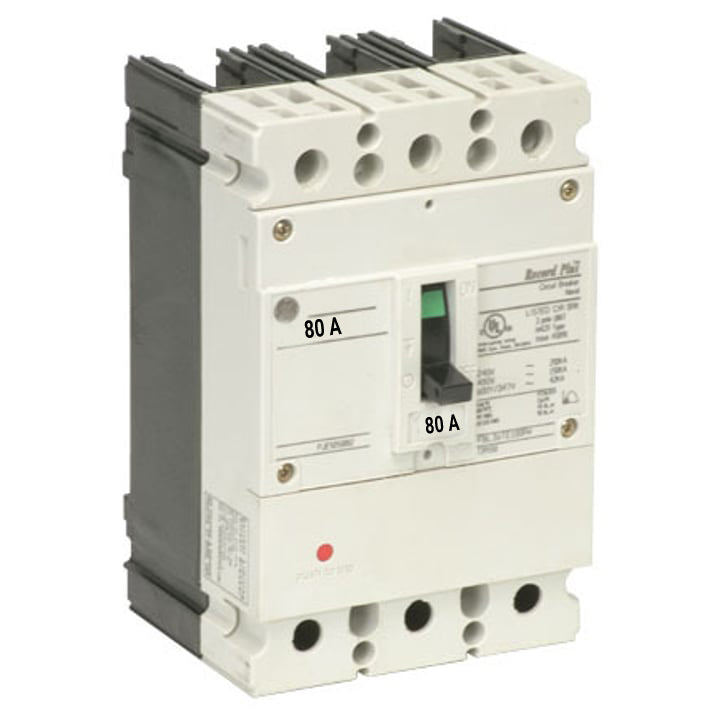

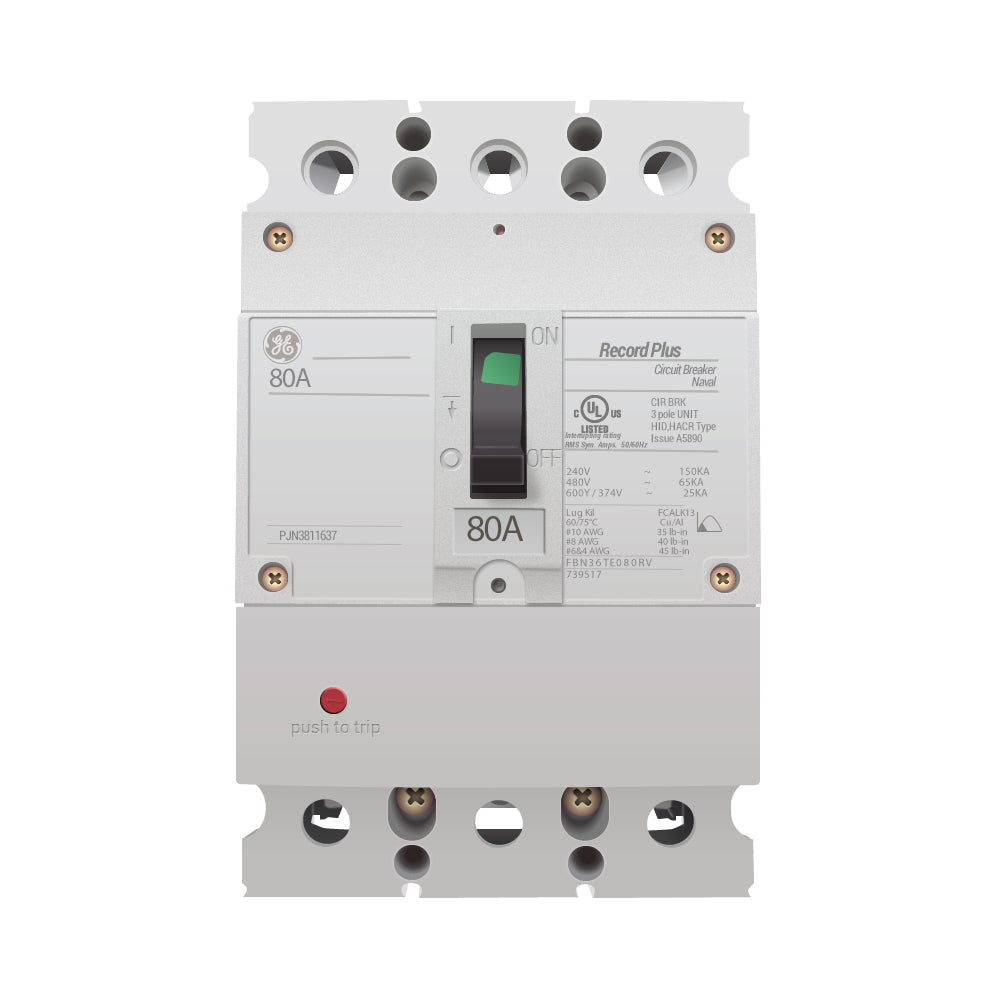

FBN36TE080RV, another product from General Electric's Record Plus series, this circuit breaker shares the type FBN and FB100 frame characteristics. It features a 3P (3-phase) configuration with an 80A current rating and a high interrupting capacity of 65kA@480V. The Bolt-On design ensures easy installation, and the package includes Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features.
