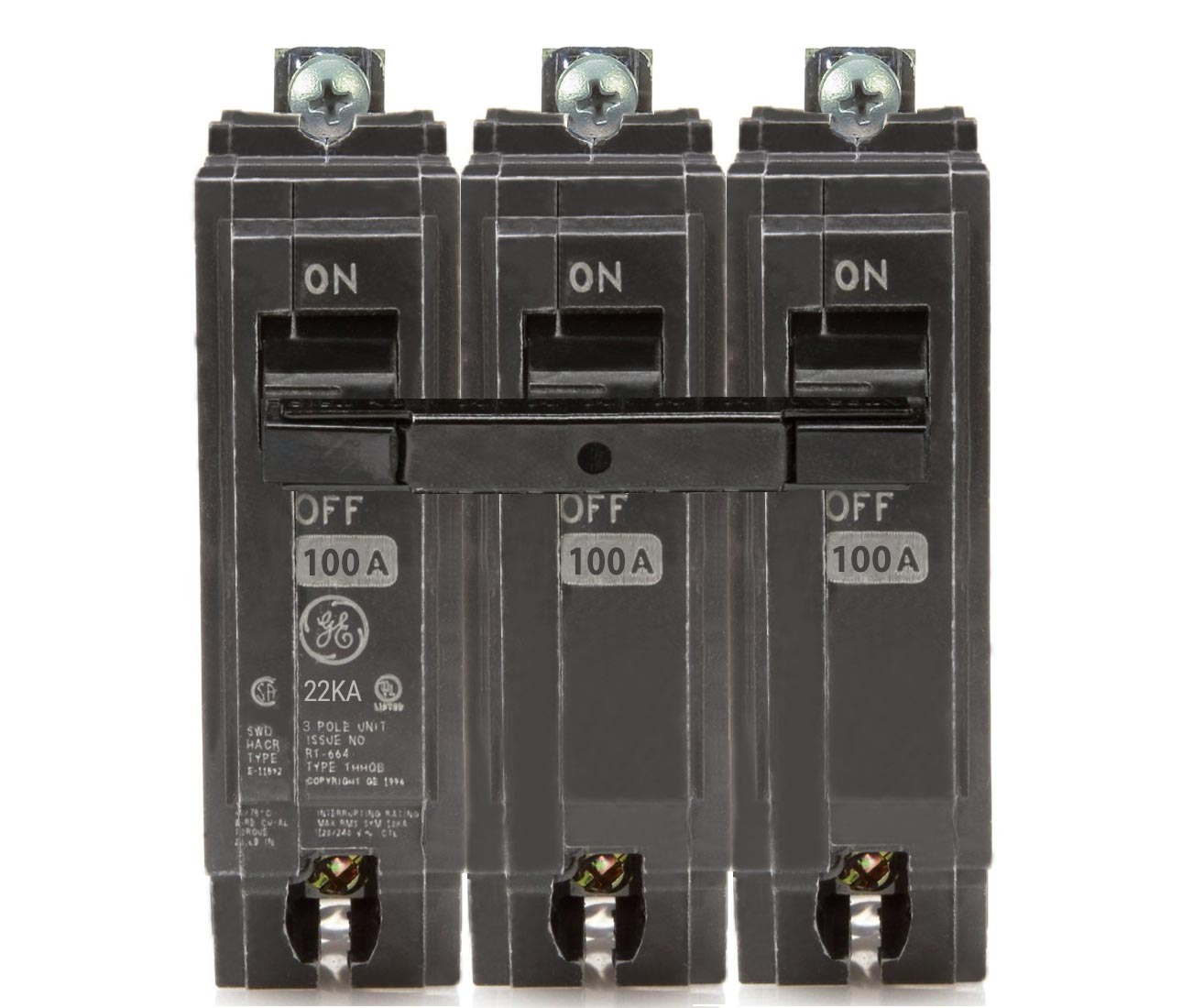

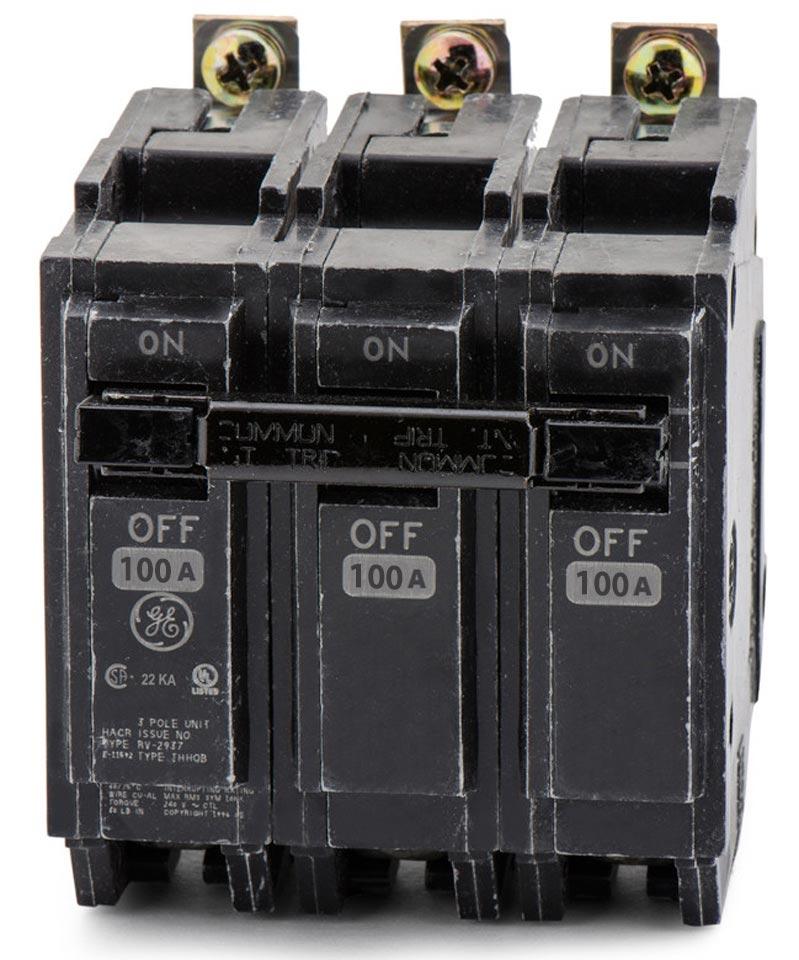

THHQB32100 - GE Bolt-On Molded Case Circuit Breaker
Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.
Specifications:
- Trip Style: Non-Interchangeable
- Frame Type: Q-Line
- Amperage: 100 A
- System Voltage: 120 Vac, 120/240 Vac, 240 Vac
- Poles: 3
- Trip Function: LI
- Continuous Current Rated: Standard
- 120 Vac Interrupting Rating: 22 KAIC
- 120/240 Vac Interrupting Rating: 22 KAIC
- 240 Vac Interrupting Rating: 22 KAIC
- Suitable for Reverse Feed: Yes
- Long Time: Fixed
- Instantaneous: Fixed
- Protective Relays: No
- Current Metering: No
- Special Markings: HACR
- GSA Compliance: No
- Authentic General Electric Product
- 3 phase
