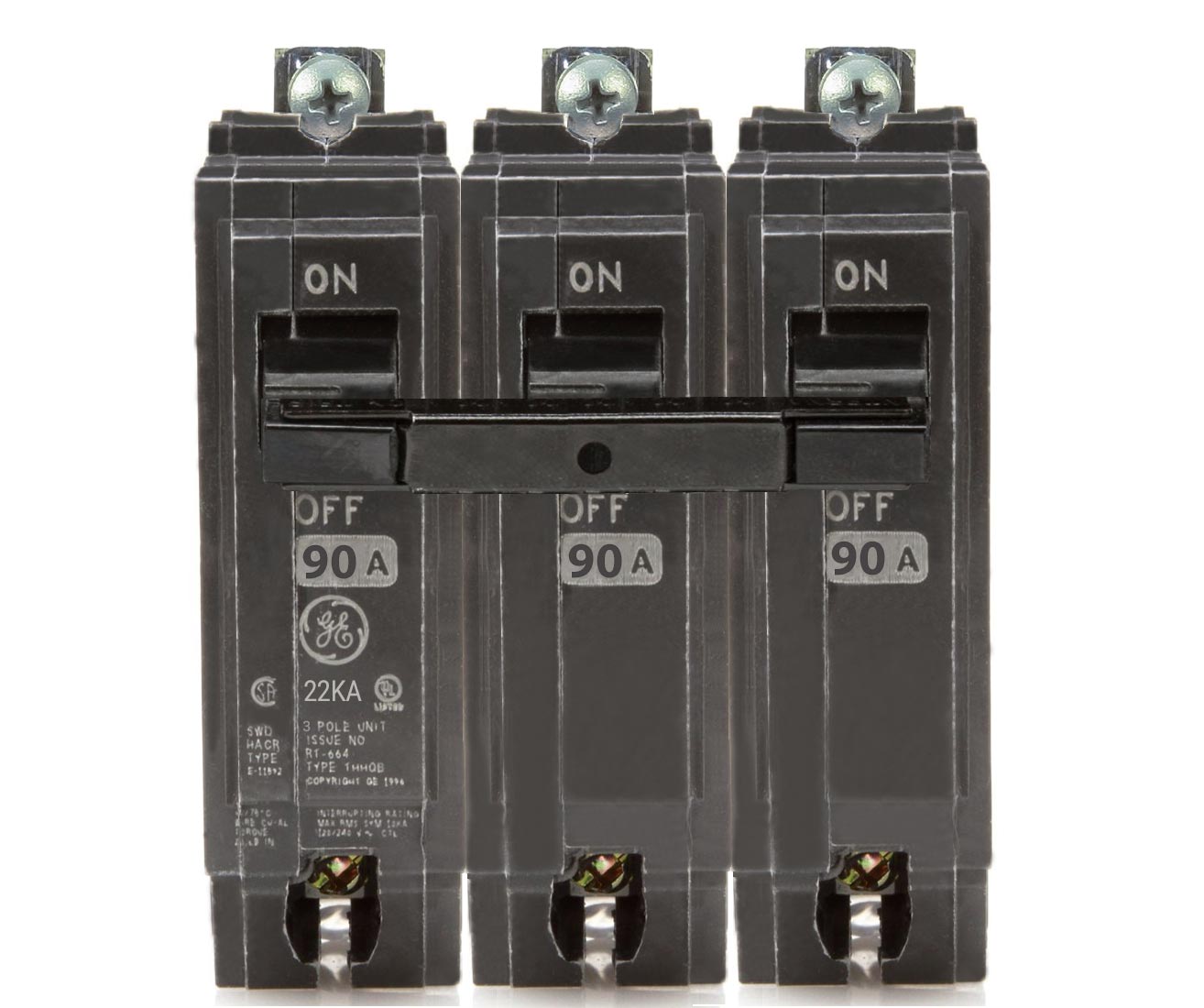

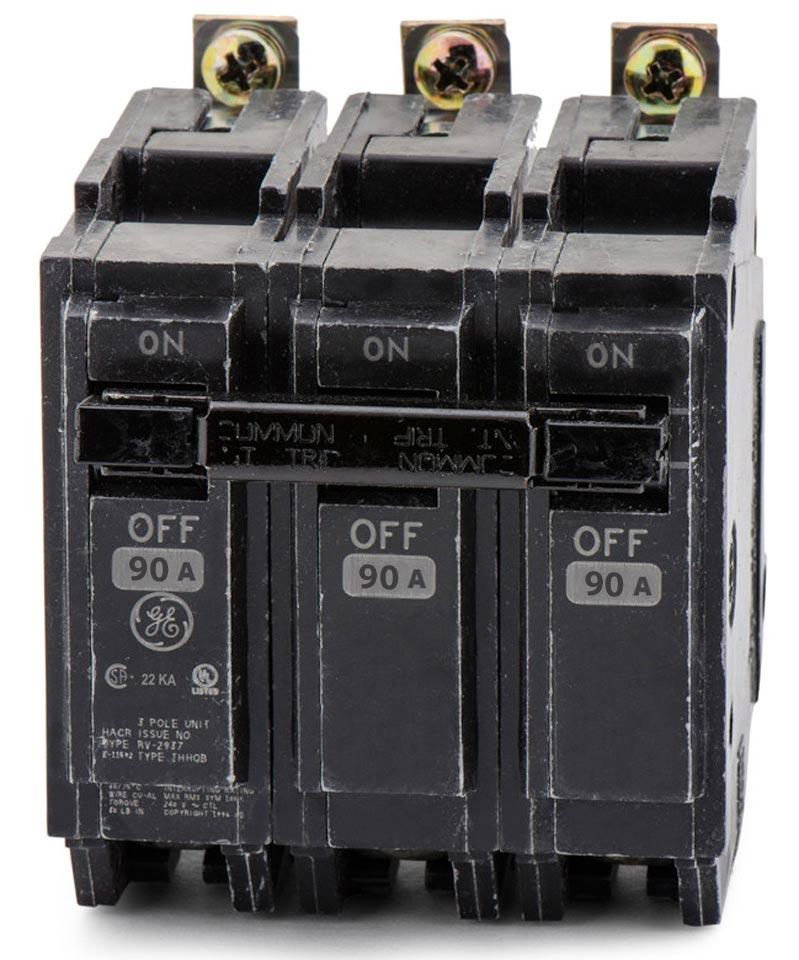

THHQB32090 - GE Bolt-On Molded Case Circuit Breaker
General Electric THHQB series three pole 90 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V trip type thermal magnetic and standard interrupting rating of 22 kiloampere at 208V (LI) Long-Time and Instantaneous trip functions and load side lug terminals.
Specifications:
- Trip Style: Non-Interchangeable
- Frame Type: Q-Line
- Amperage: 90 A
- System Voltage: 120 Vac, 120/240 Vac, 240 Vac
- Poles: 3
- Trip Function: LI
- Continuous Current Rated: Standard
- 120 Vac Interrupting Rating: 22 KAIC
- 120/240 Vac Interrupting Rating: 22 KAIC
- 240 Vac Interrupting Rating: 22 KAIC
- Suitable for Reverse Feed: Yes
- Long Time: Fixed
- Instantaneous: Fixed
- Protective Relays: No
- Current Metering: No
- Special Markings: HACR
- GSA Compliance: No
- Authentic General Electric Product
- 3 phase
