Overview

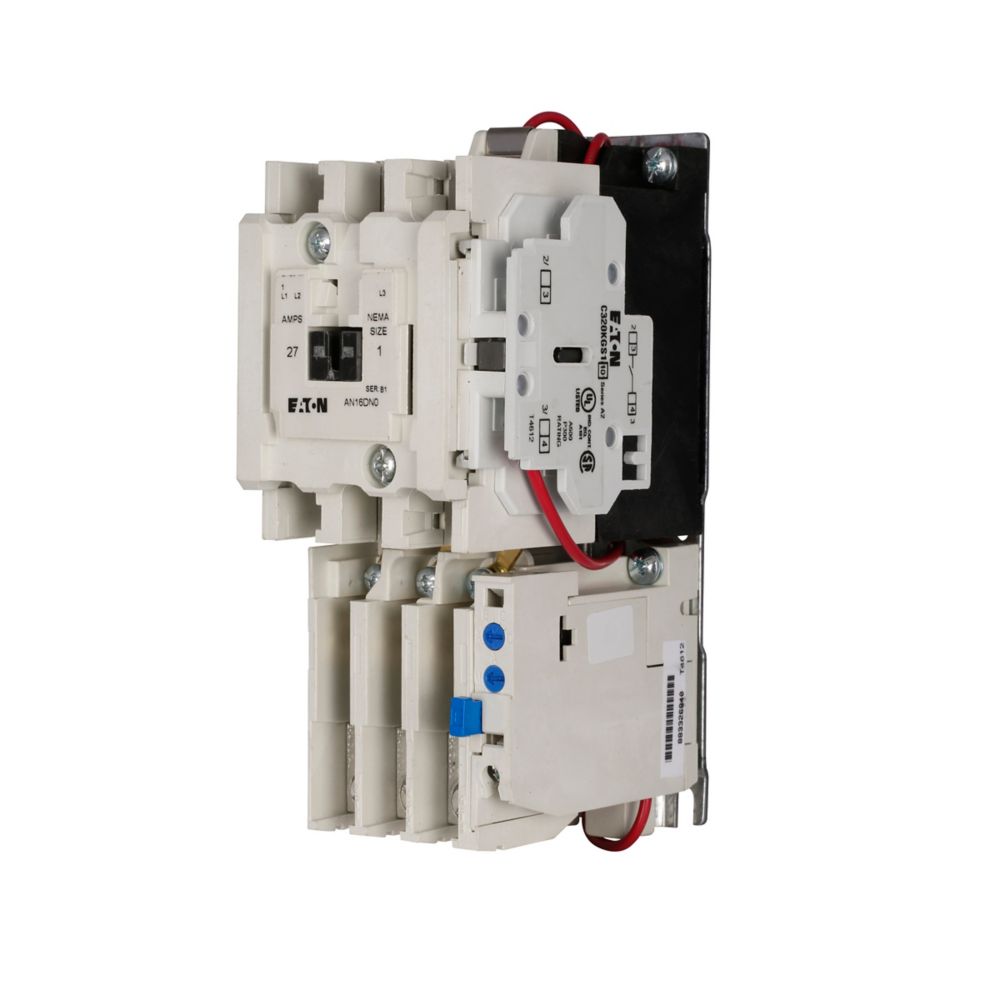

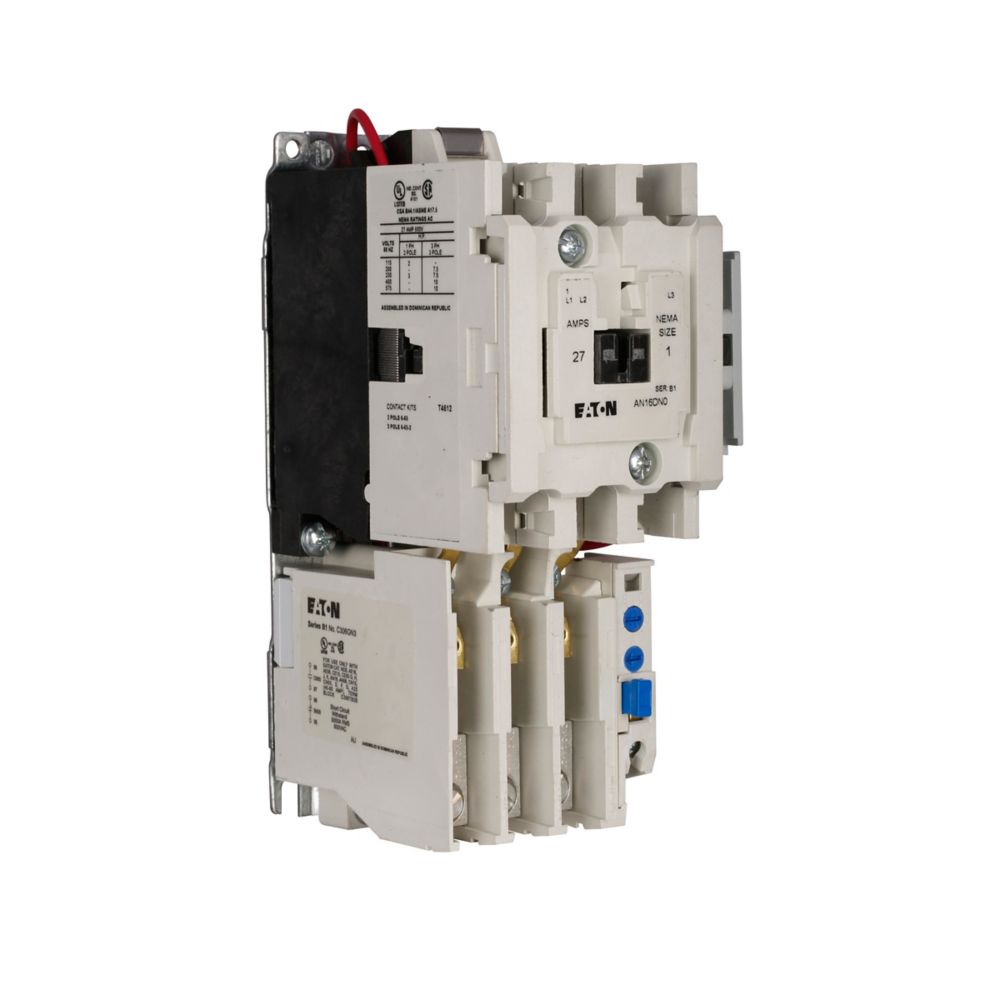

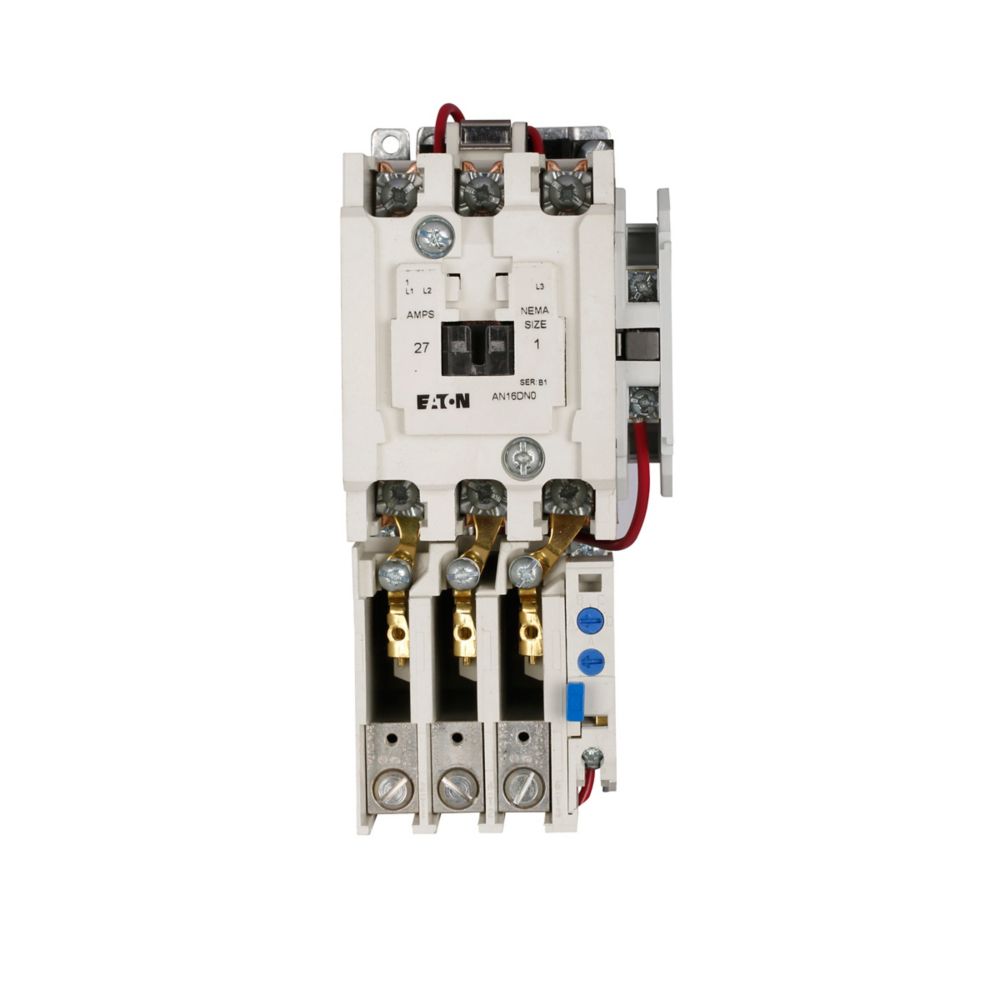

Product Specifications - AN16DN0DB - Eaton Electric Motor Starter
-
Part Number:
AN16DN0DB -
Manufacturer:
-
Family:
Freedom Series -
Pole:
3 -
Amp
27 -
Volt:
600 -
Coil Voltage Min:
550 -
Coil Voltage Max:
600
-
Phase:
3
-
Category:
-
Type:
AN16 -
Nema Rating:
4
Dimensions
-
Dimensions (HxWxD):
3.31" x 4.38" x 4.61" -
Weight:
2.6 lbs
Standards
Product Description - AN16DN0DB - Eaton Electric Motor Starter
Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V maximum horsepower, 600V/60 Hz or 550V/50 Hz coil voltage, 27A, Three-pole, Size 1
