Overview
Product Specifications - XTOB2P4CC1 - Eaton Motor Starter Overload Relay
-
Part Number:
XTOB2P4CC1 -
Manufacturer:
-
Family:
XT Series -
Amperage Min:
1.6 -
Amperage Max:
2.4
-
Category:
-
Type:
XTOB -
Suitable:
XTCR -
Amperage Min:
1.6 -
Amperage Max:
2.4 -
Relay Style:
Thermal
Dimensions
-
Dimensions (HxWxD):
1.89" x 1.77" x 3.27" -
Weight:
0.7 lbs
Standards

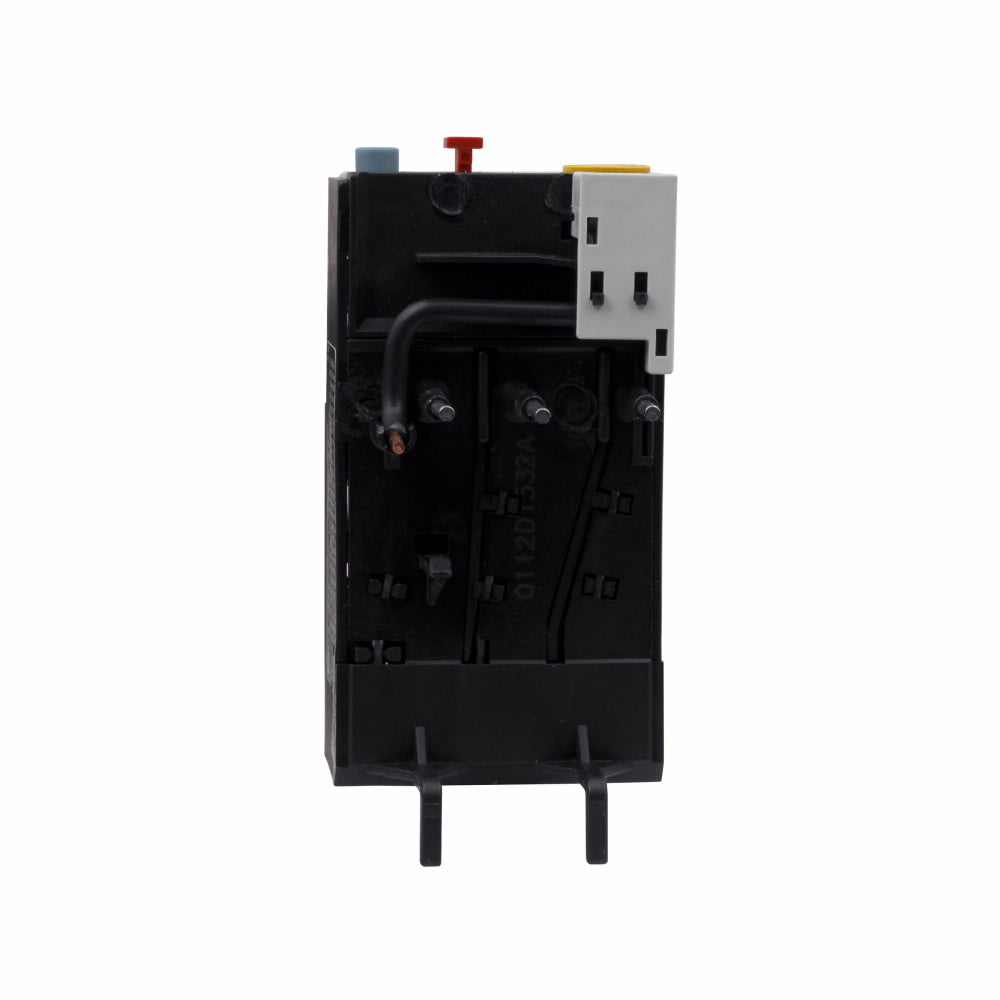

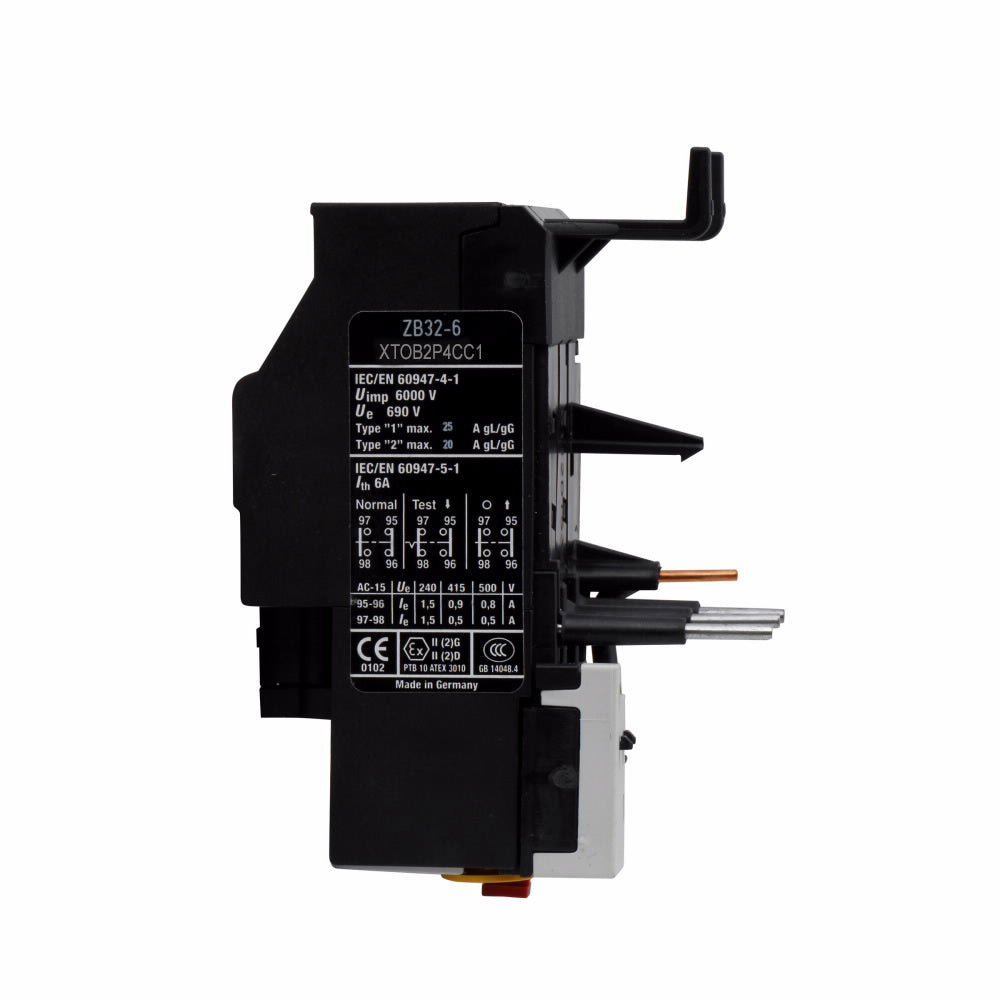

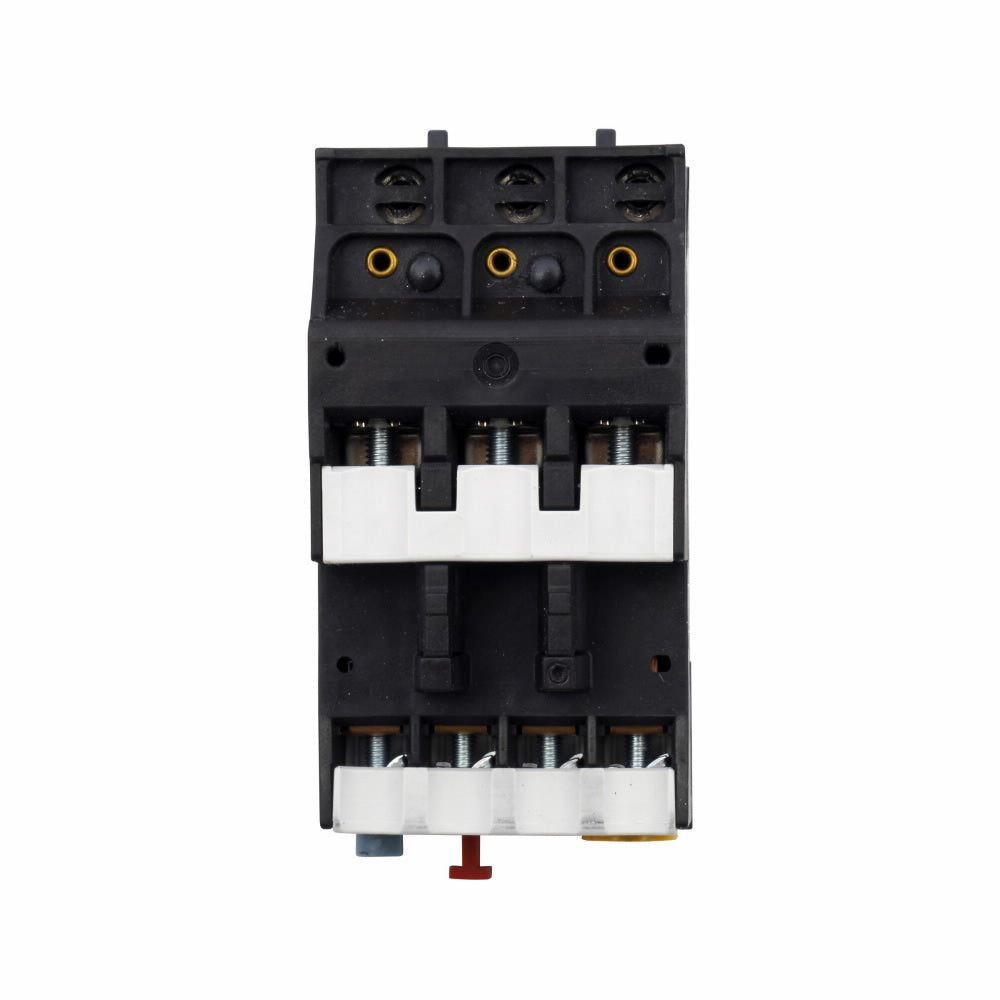

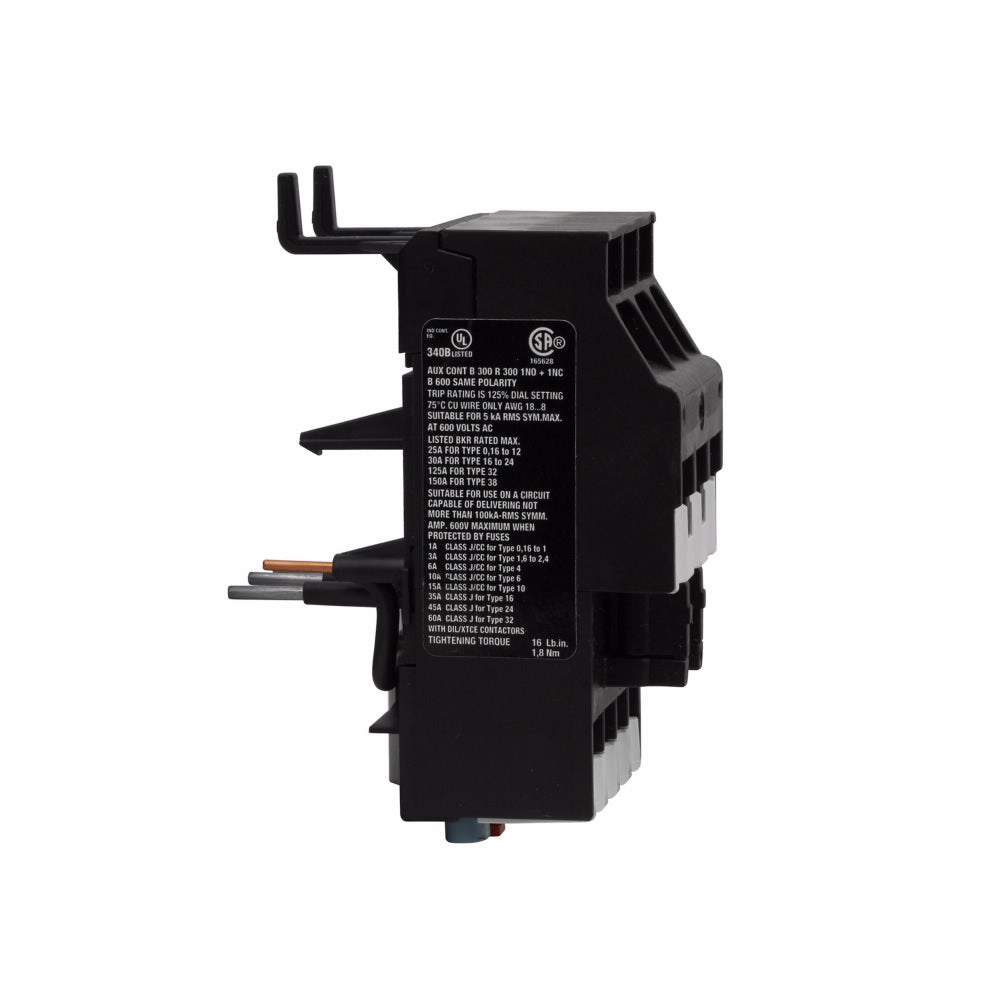

Product Description - XTOB2P4CC1 - Eaton Motor Starter Overload Relay
Eaton XT IEC bimetallic overload relay, 1.6-2.4A overload range, 45 mm Frame size, 1NO-1NC contact configuration, Direct mounting, used with 18-32A contactor, 10A trip type
