Overview
Product Specifications - GHQRSP2030 Eaton Molded Case
-
Part Number:
GHQRSP2030 -
Manufacturer:
-
Family:
Quicklag -
Pole:
2 -
Amp
30 -
Volt:
480 -
Phase:
1
-
Category:
-
Type:
GHQRS -
AIC Ratings:
14kA@277V
Dimensions
-
Dimensions (HxWxD):
7.5 x 8 x 9 -
Weight:
3 lb
Standards
Product Description - GHQRSP2030 Eaton Molded Case

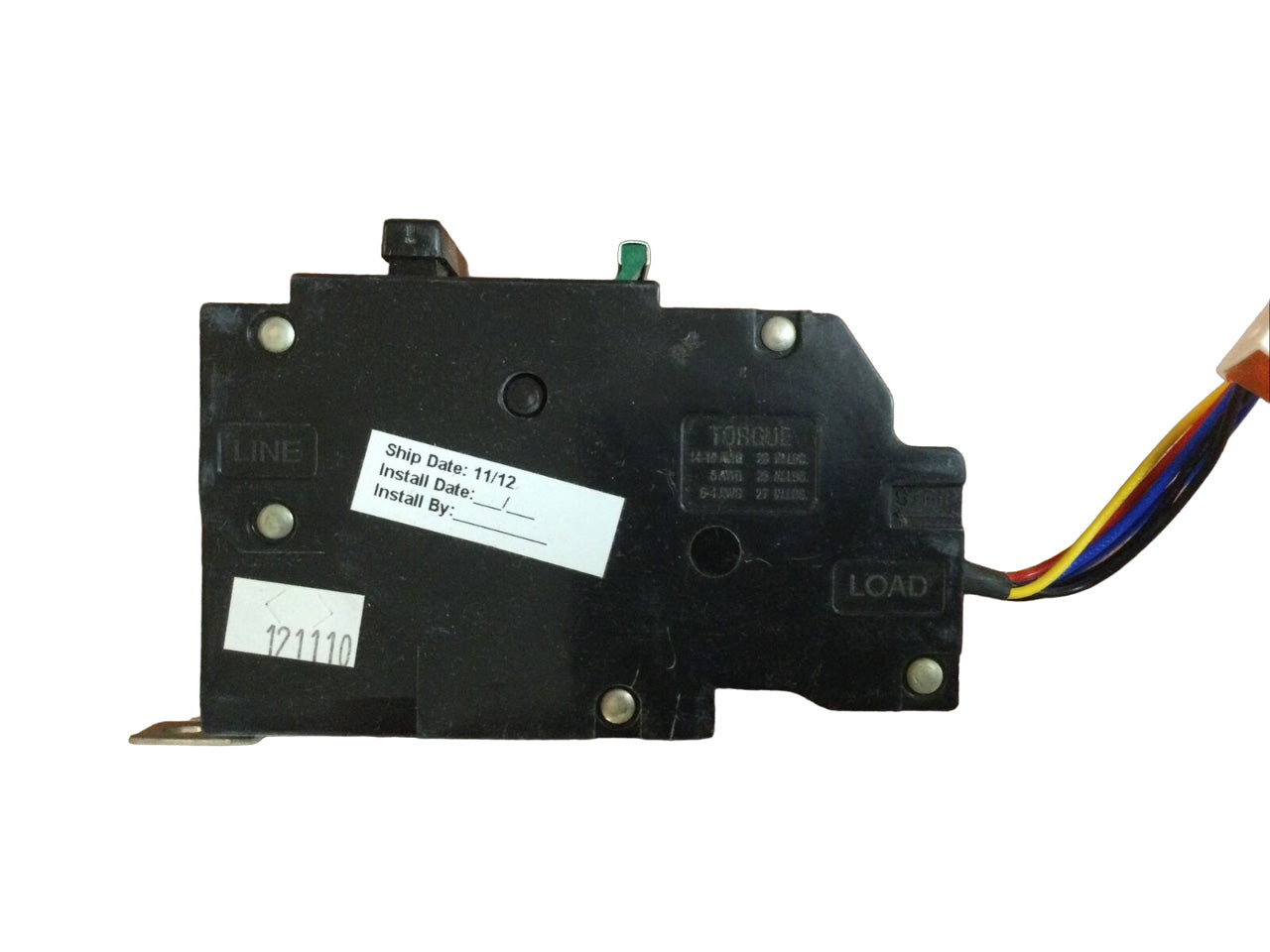

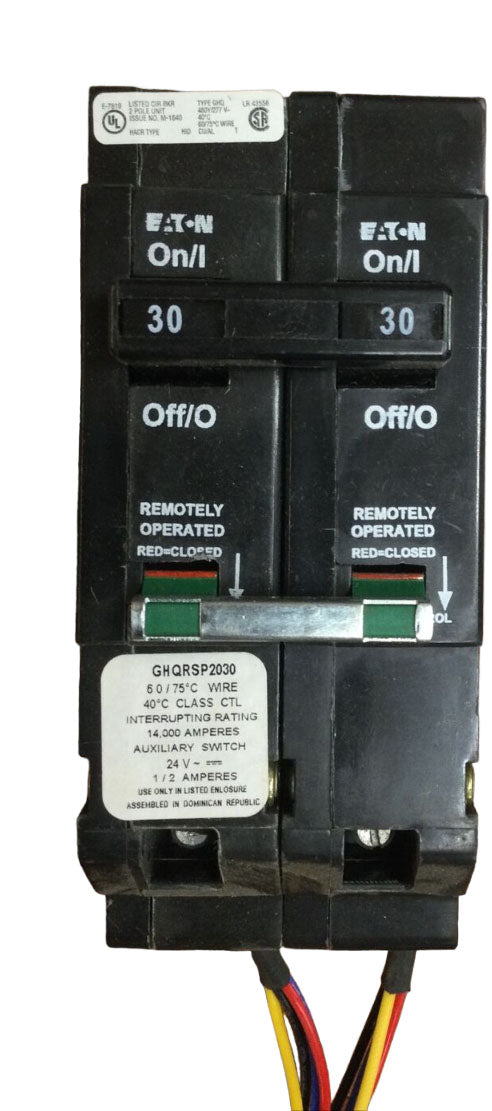

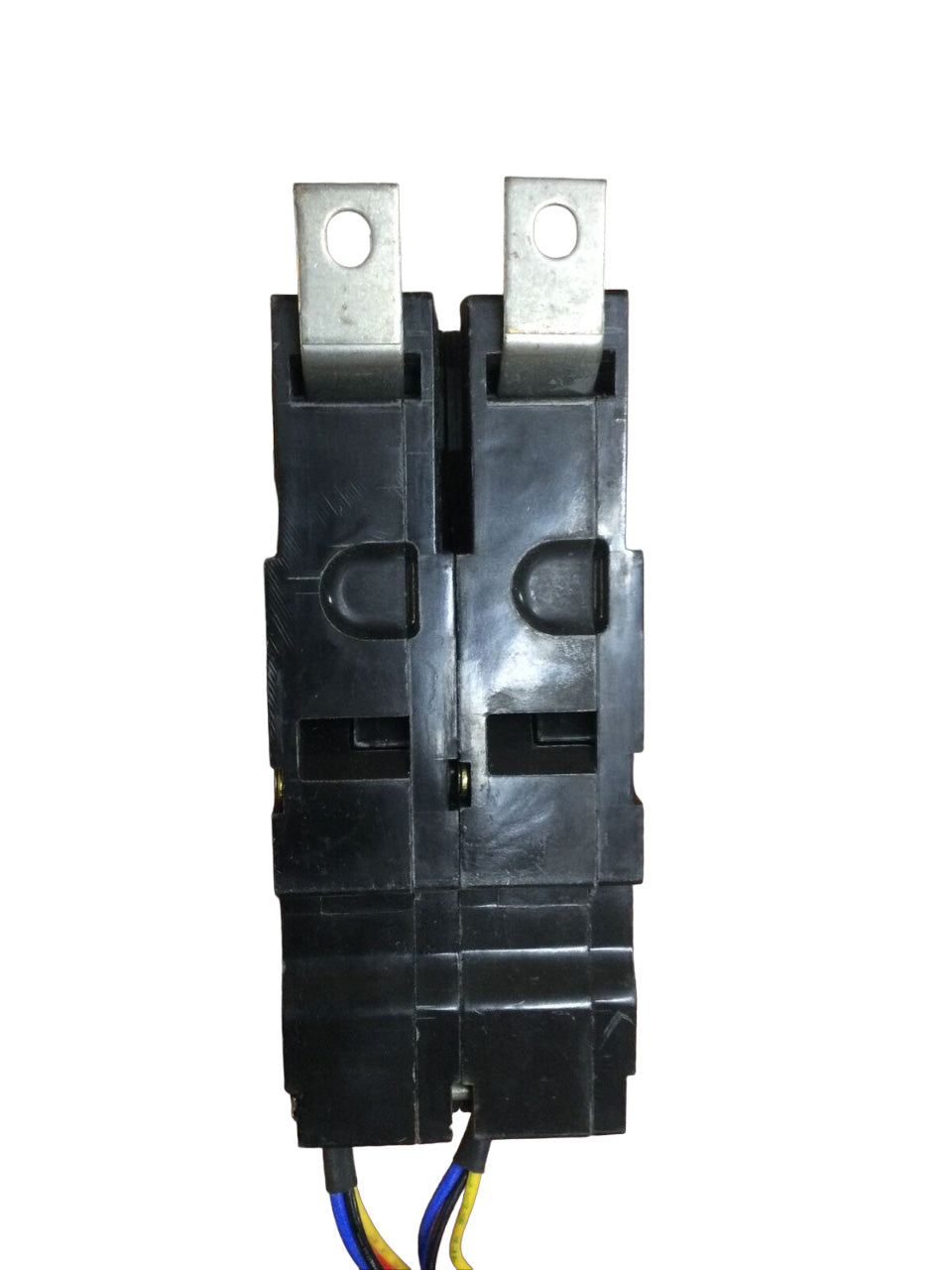

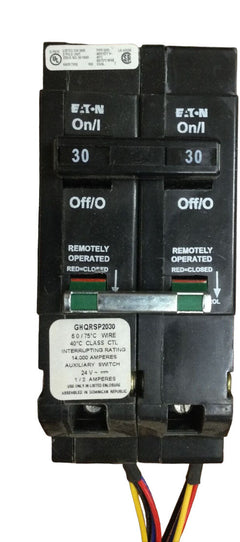

GHQRSP2030 by Cutler Hammer is a Quicklag circuit breaker, type GHQRS. This 2-pole, 1-phase circuit breaker operates at 480Y/277V with a 30A rating, 50/60Hz frequency, and a 14kA@277V standard interrupting capacity. UL listed and HID rated, it is designed for use in 277/480Vac panelboards. The Bolt-On branch circuit breaker includes a solenoid-operated mechanism, non-interchangeable trip, Long-Time and Instantaneous trip functions, line side lug terminals, and Thermal Magnetic molded case circuit breakers for reliable performance.
