Overview
Product Specifications - KD3150C - Eaton Molded Case Circuit Breakers
-
Part Number:
KD3150C -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
KD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V -
Frame Type:
K Frame
Dimensions
-
Dimensions (HxWxD):
10.13" x 5.5" x 4.13" -
Weight:
11.5 lbs
Standards
Product Description - KD3150C - Eaton Molded Case Circuit Breakers

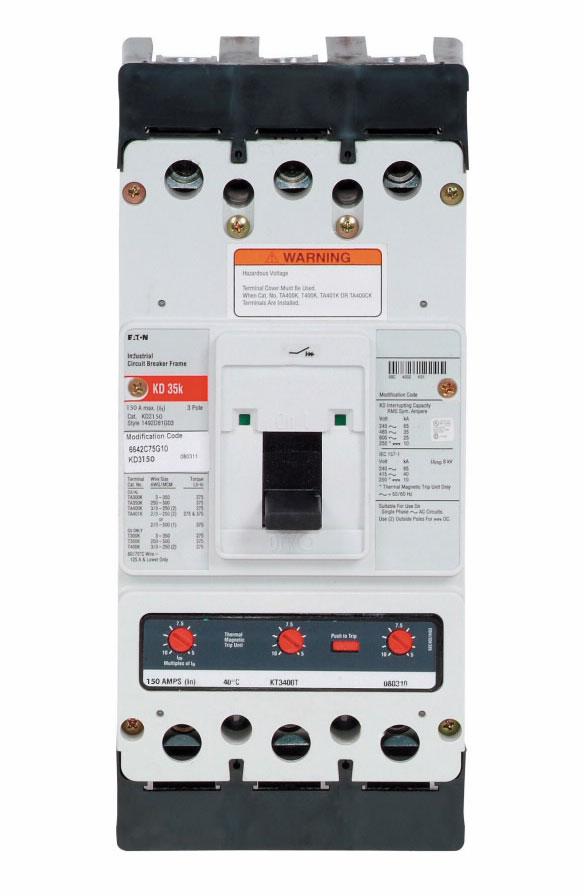

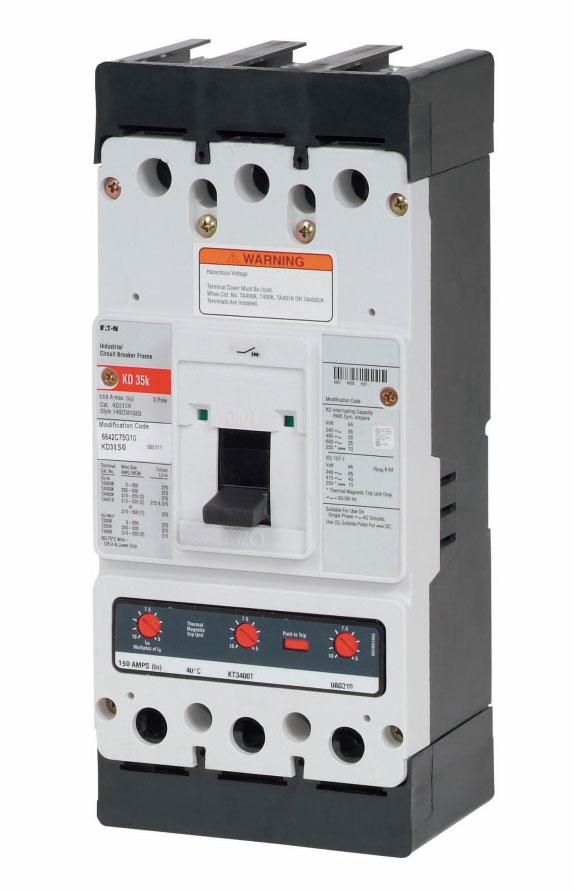

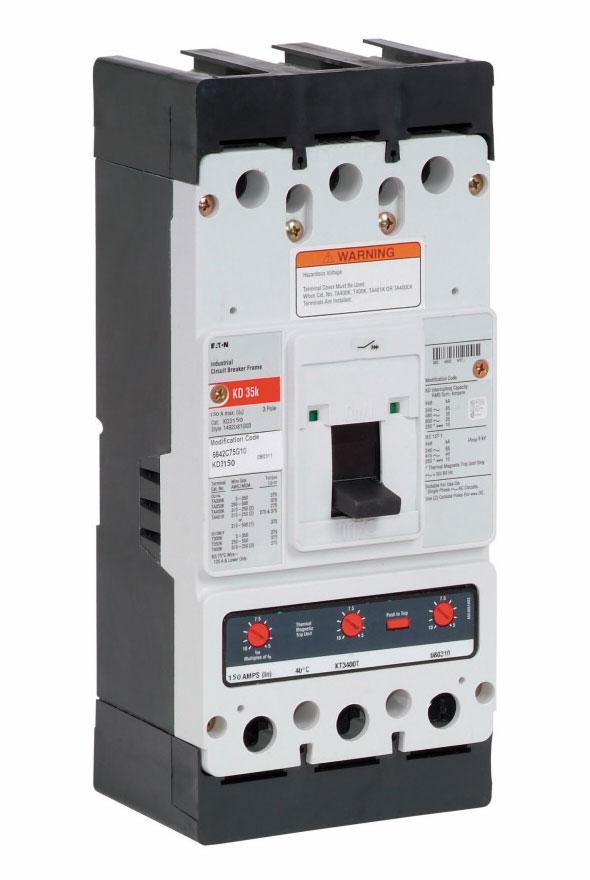

Eaton Cutler Hammer, Series C complete molded case circuit breaker, K-frame, KD, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 150 A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Aluminum, standard interrupting capacity, 40 degree C, feed-thru, complete with interchangeable LI - Long-Time and Instantaneous trip functions and line & load side lug terminals
