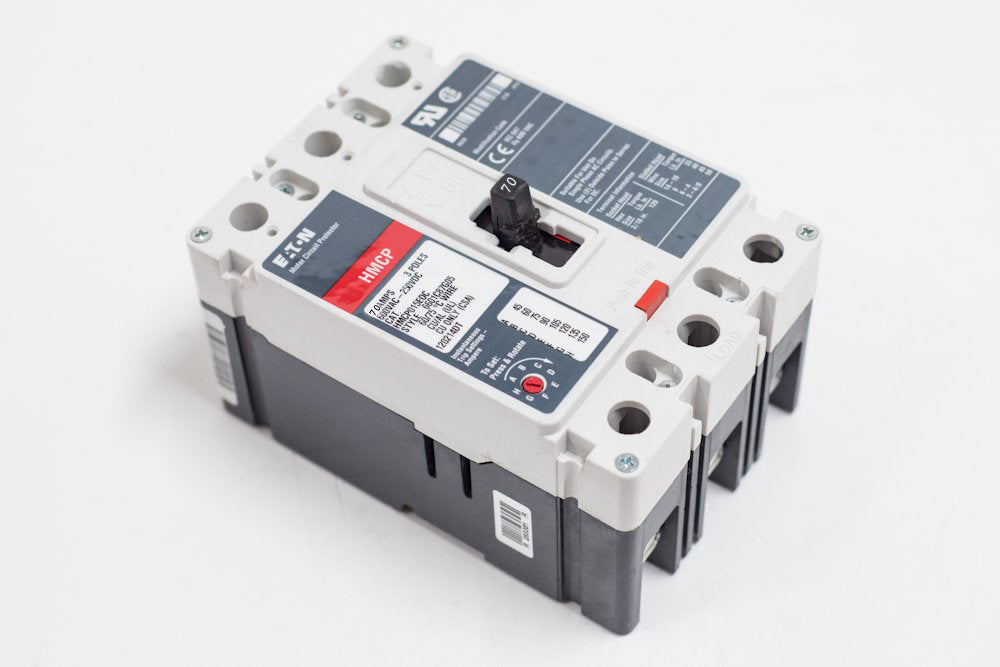

HMCP070J2 - Eaton - Molded Case Circuit Breaker
Feed-Thru - 70 Amp - 3 Pole - 600 Volt
Eaton Cutler-Hammer
SKU: HMCP070J2
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - HMCP070J2 - Eaton Molded Case Circuit Breakers
-
Part Number:
HMCP070J2 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
70 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HMCP -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
4.9"x5"x7.5"
-
Weight:
4.15 lbs
Standards
Product Description - HMCP070J2 - Eaton Molded Case Circuit Breakers
HMCP070J2, Cutler Hammer / Eaton / Westinghouse, Series C, type HMCP, F Frame, 3P, 3PH, 70A, 600V, 65kA@480V, feed-thru, complete with non-interchangeable trip with I - Instantaneous Protection Only, standard line & load side lug terminals, MCP, motor circuit protector, magnetic range 115-170A, magnetic only, molded case circuit breakers.
