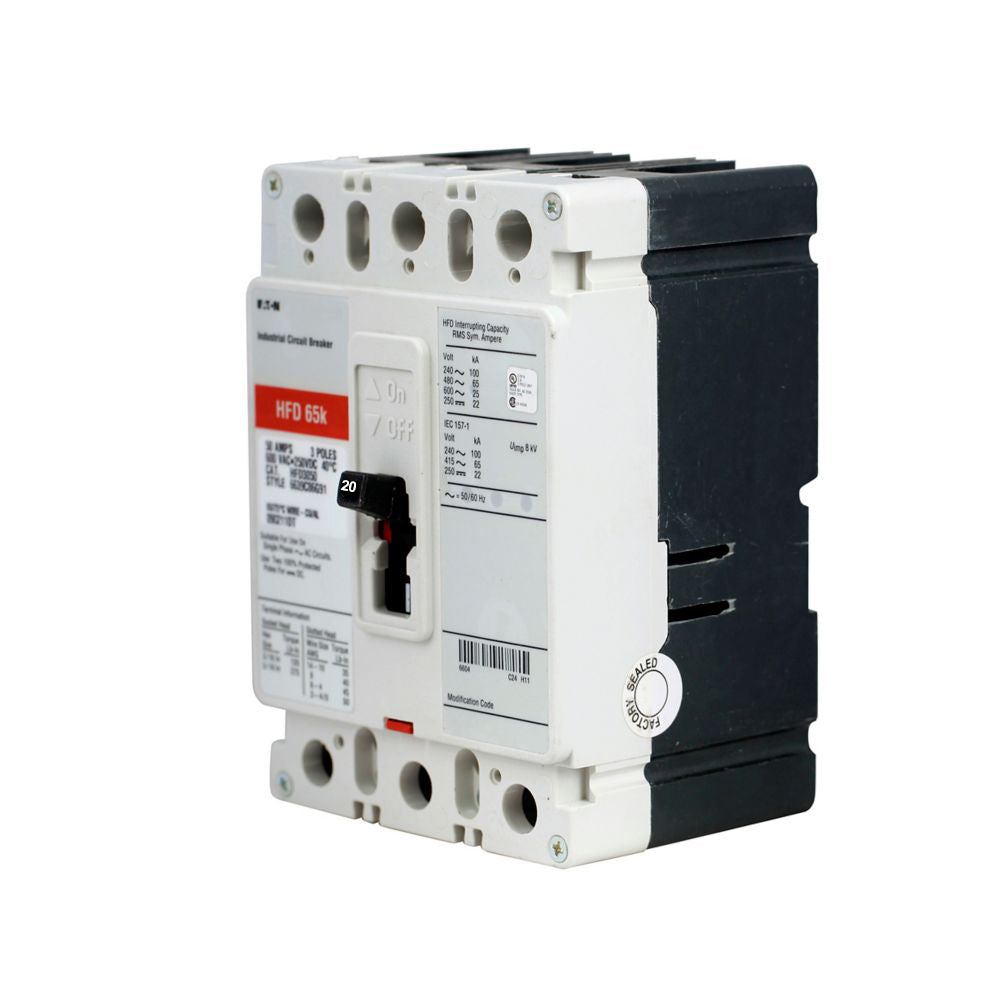

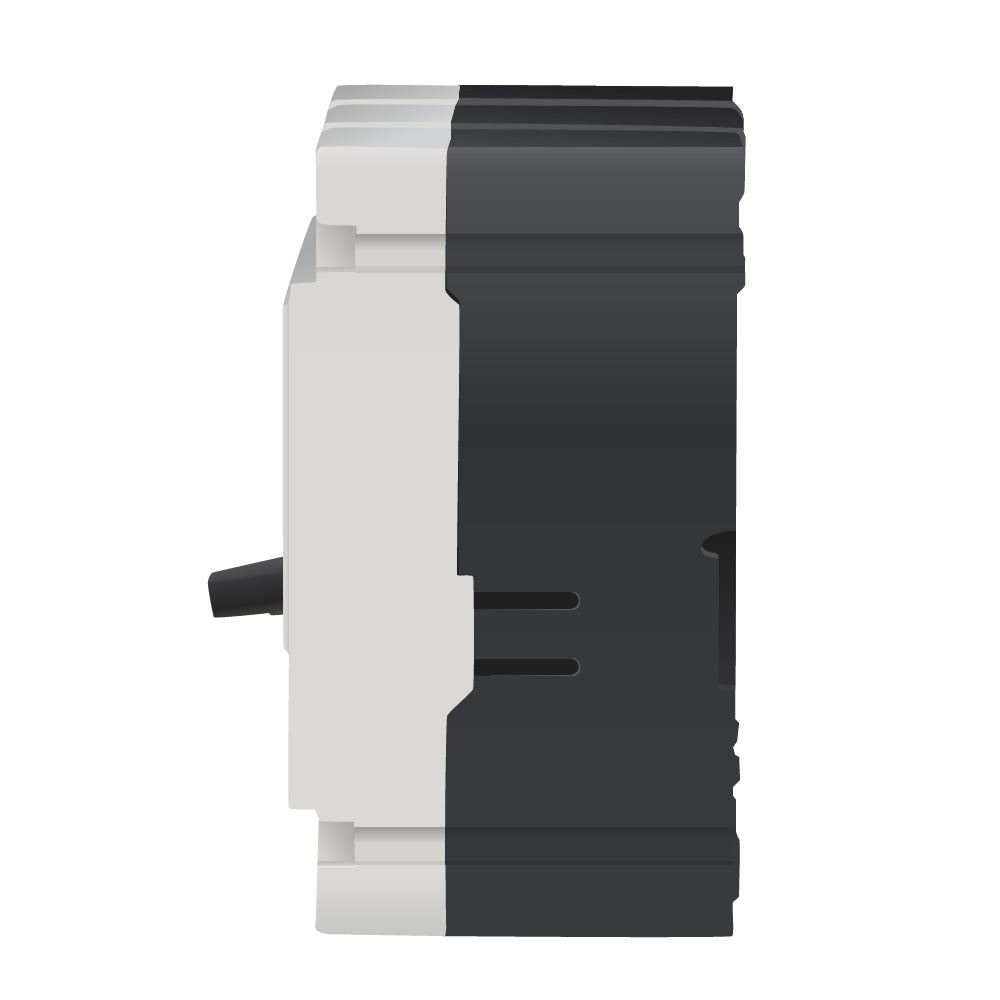

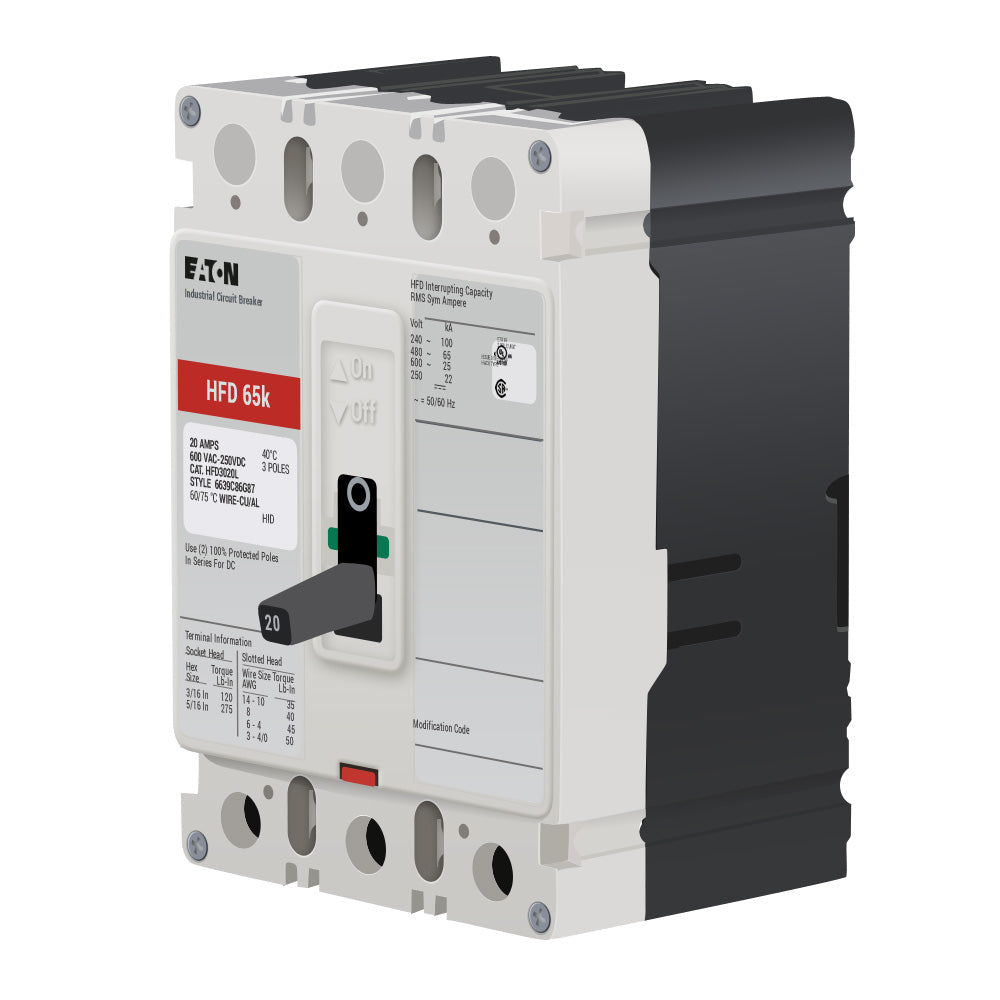

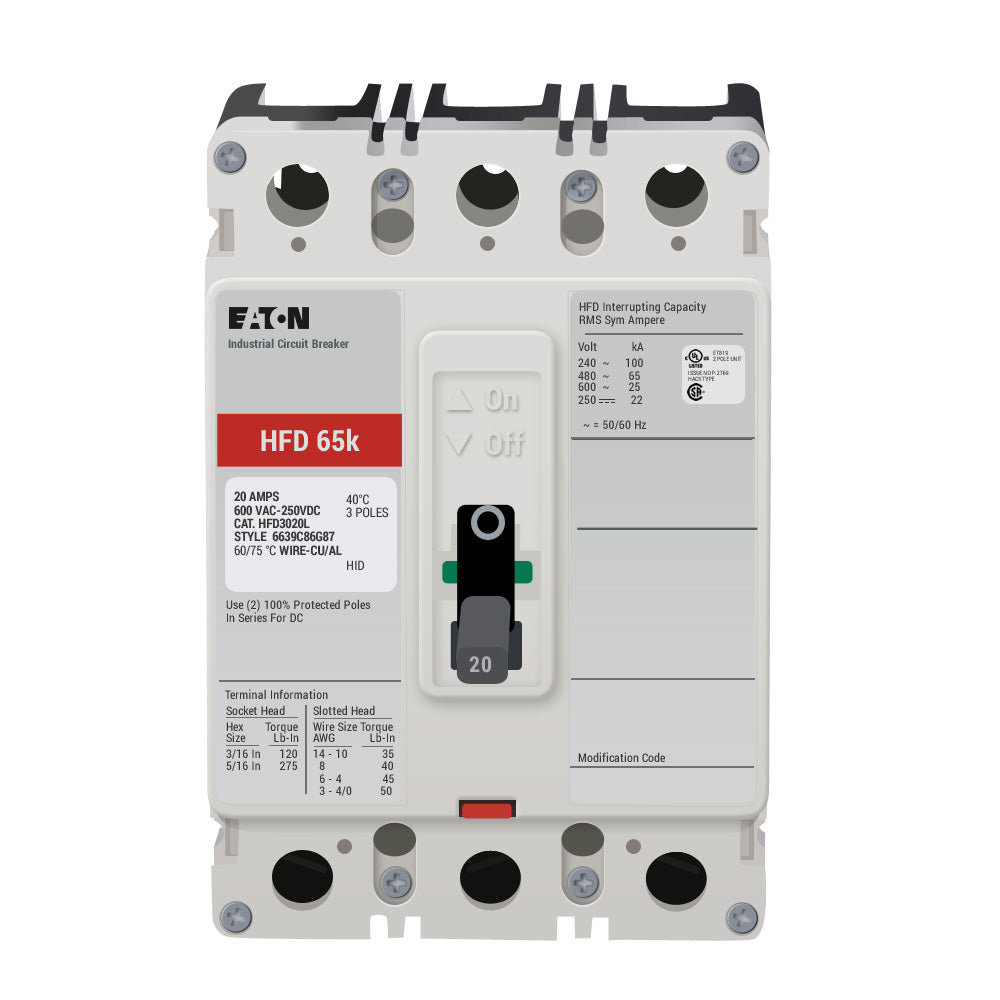

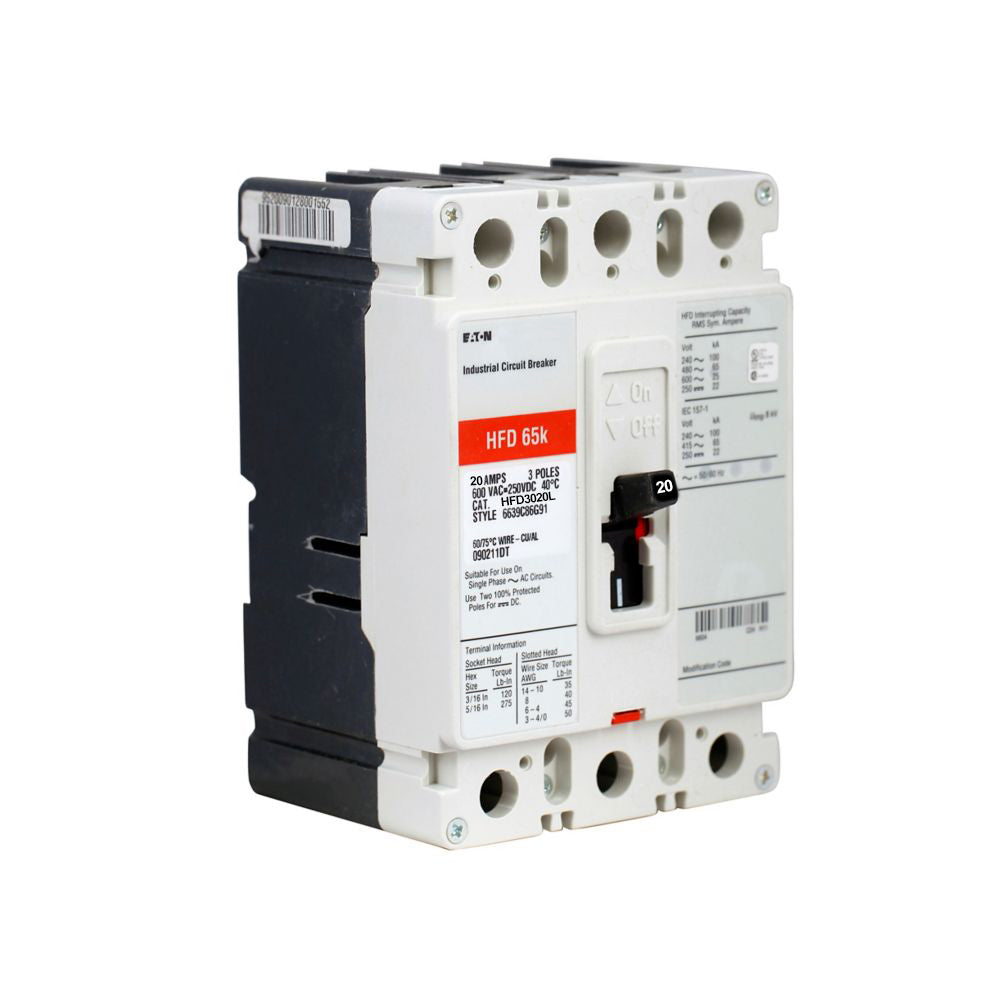

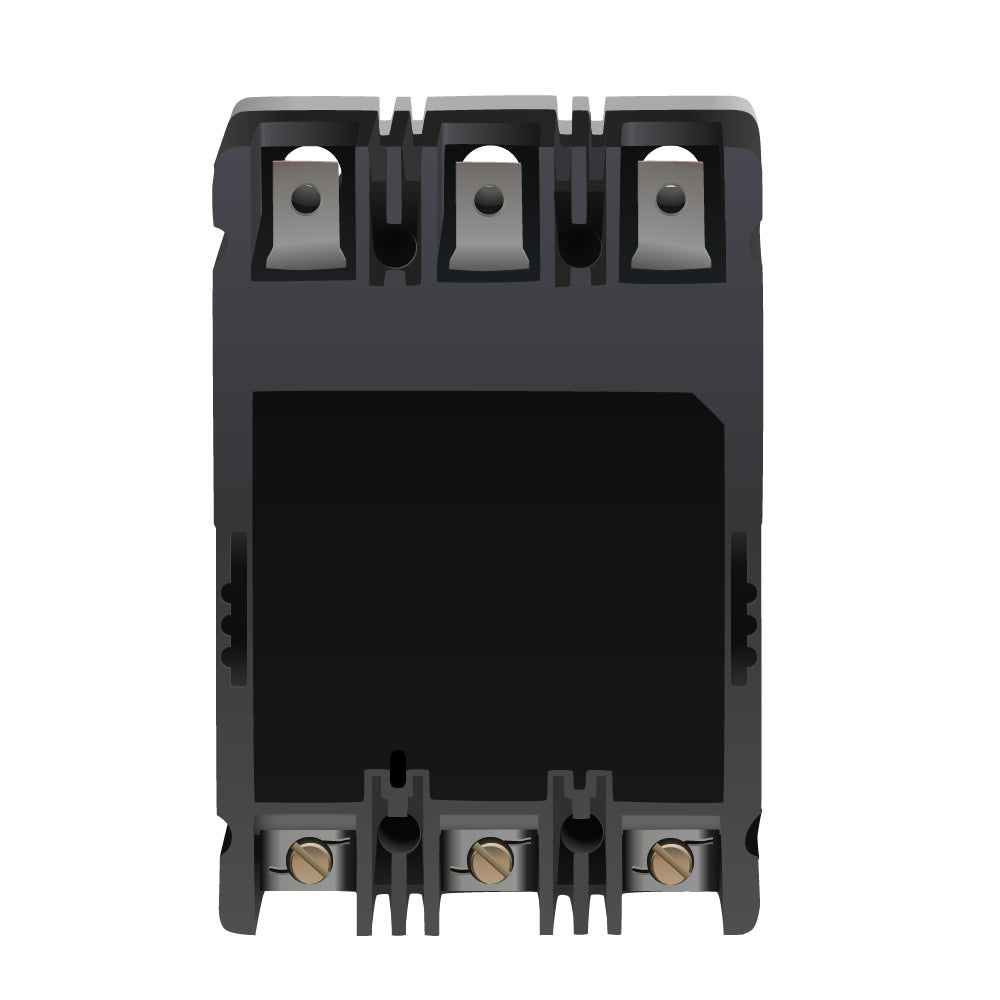

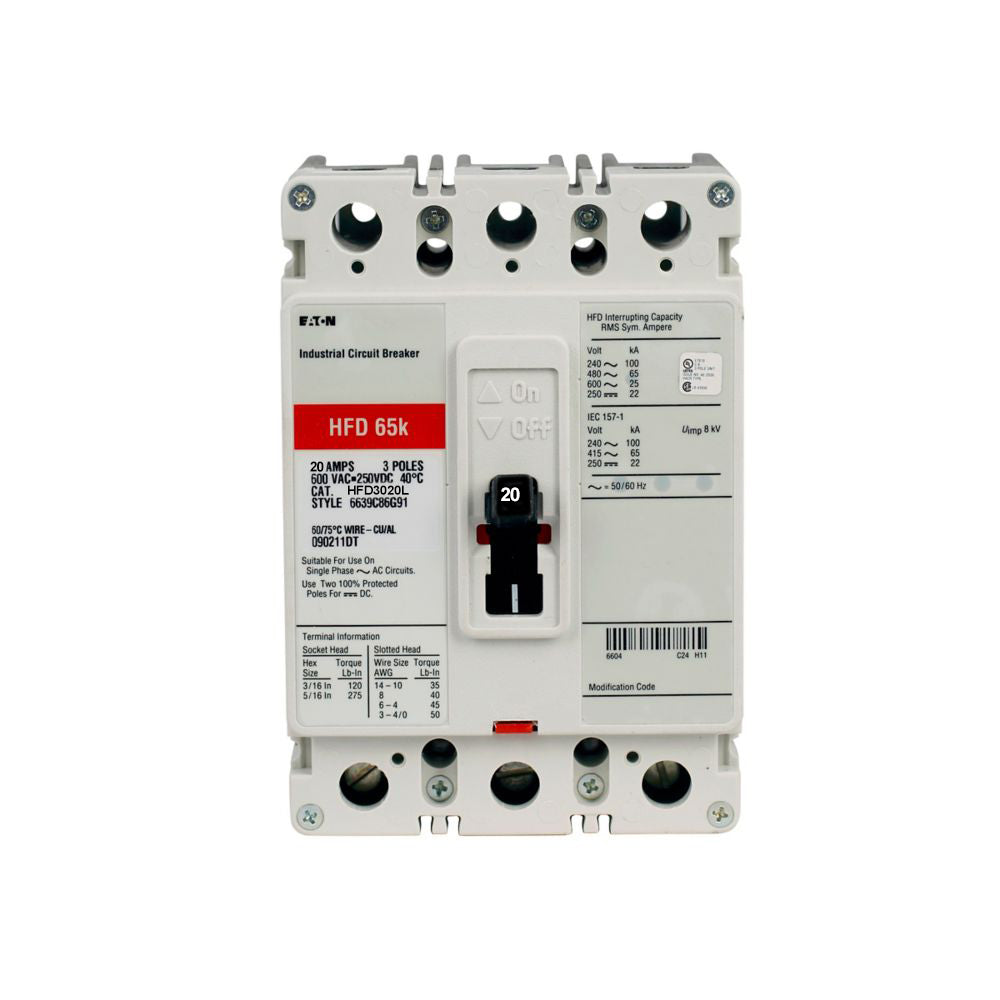

HFD3020L - Eaton - Molded Case Circuit Breaker

Feed Thru - 20 Amp - 3 Pole - 600 Volt

Eaton Cutler-Hammer SKU: HFD3020L
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker
HFD3020L - Eaton - Molded Case Circuit Breaker

Images are for reference only

HFD3020L - Eaton - Molded Case Circuit Breaker

Feed Thru - 20 Amp - 3 Pole - 600 Volt

Eaton Cutler-Hammer SKU: HFD3020L
Save $1,678.32
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HFD3020L - Eaton Molded Case Circuit Breaker

  • Part Number:

    HFD3020L

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series C

  • Pole:

    3

  • Amp

    20

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HFD

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    65kA@480V

  • Frame Type:

    F Frame

Dimensions

  • Dimensions (HxWxD):

    6.0" x 4.13" x 3.38"

  • Weight:

    4.5 lbs

Standards

CSA Approved logo

Product Description - HFD3020L - Eaton Molded Case Circuit Breaker

Cutler Hammer / Eaton / Westinghouse, Series C, type HFD, 3P, 3PH, 20A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Data Sheet
