Overview
Product Specifications - CN35DN2AB - Eaton Magnetic Contactor
-
Part Number:
CN35DN2AB -
Manufacturer:
-
Family:
CN35 -
Pole:
2 -
Amp
30 -
Volt:
600 -
Coil Voltage Min:
110 -
Coil Voltage Max:
120 -
Phase:
1
-
Category:
-
Type:
CN35
Dimensions
-
Dimensions (HxWxD):
3.88" x 2" x 3.49"
-
Weight:
1.4 lbs
Standards

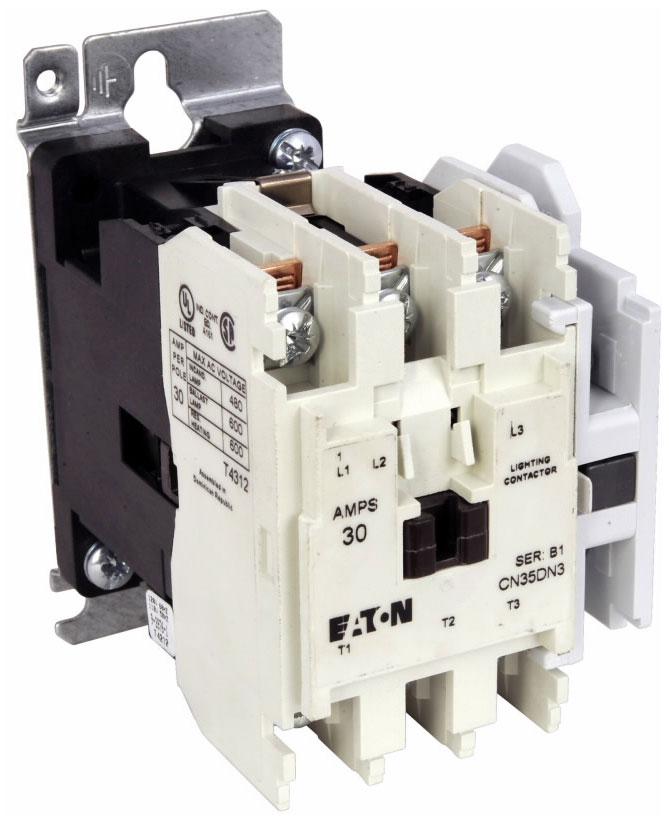

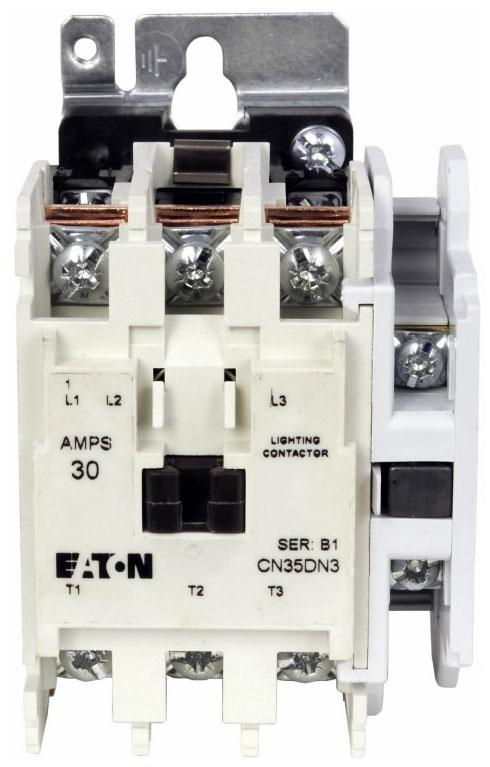

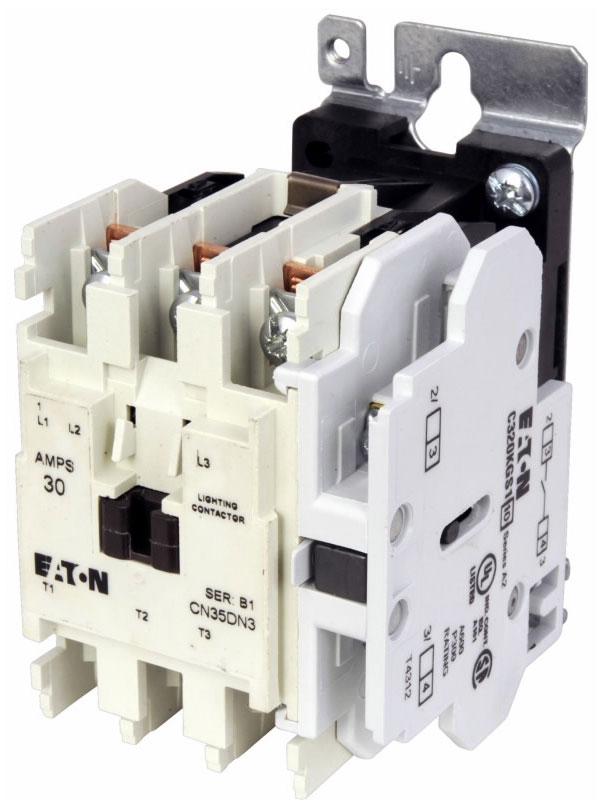

Product Description - CN35DN2AB - Eaton Magnetic Contactor
Cutler Hammer, CN35, type CN35, 2P, 1PH, 30A, 480V or 600V, 30A @ 480V for tungsten lamp applications or 30A @ 600V for ballast or mercury vapor type applications, complete with 110V 50Hz or 120V 60Hz, AC coil, open type, N/O auxiliary contact, electrically held, lighting contactors, NEMA size 1, suitable for use with CN35 Electrically Held motor control systems.
