Overview
Product Specifications - DH364UGK - Eaton Disconnect
-
Part Number:
DH364UGK -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
11.26 x 27.66 x 16 -
Weight:
40 lb
Standards

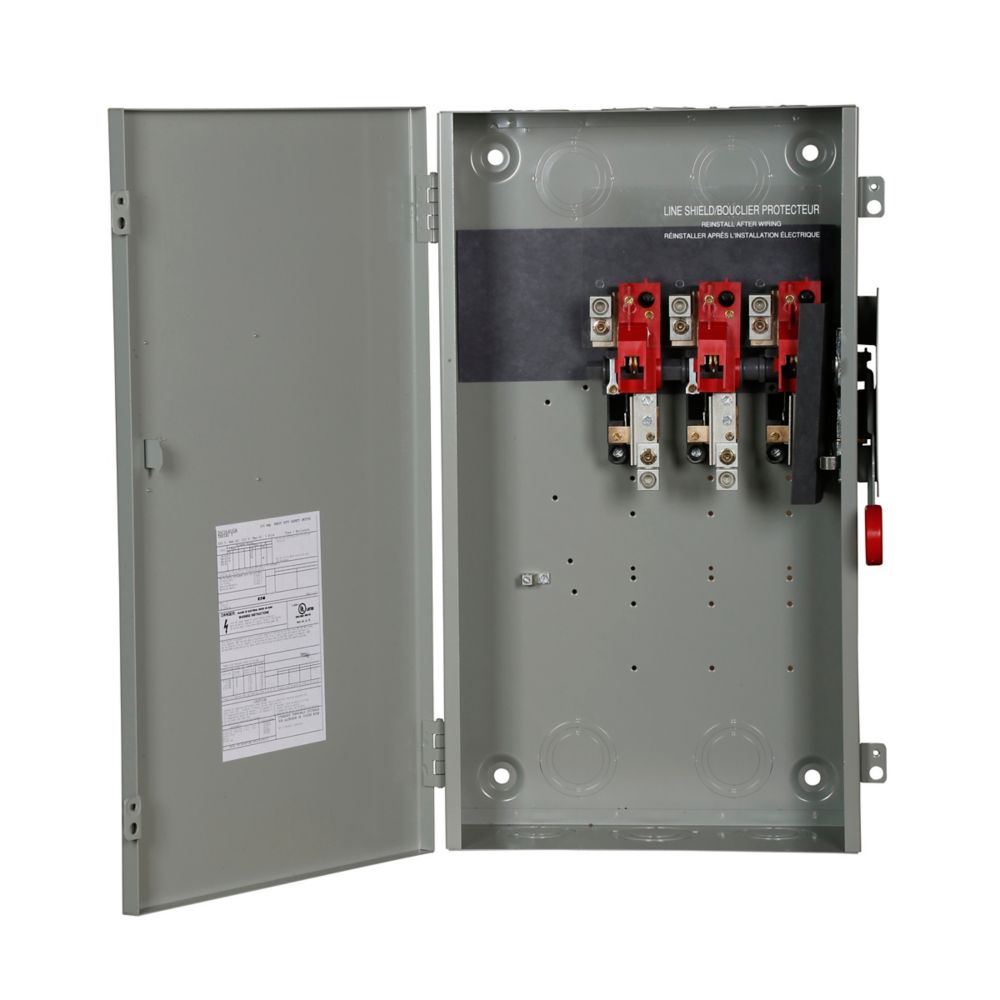

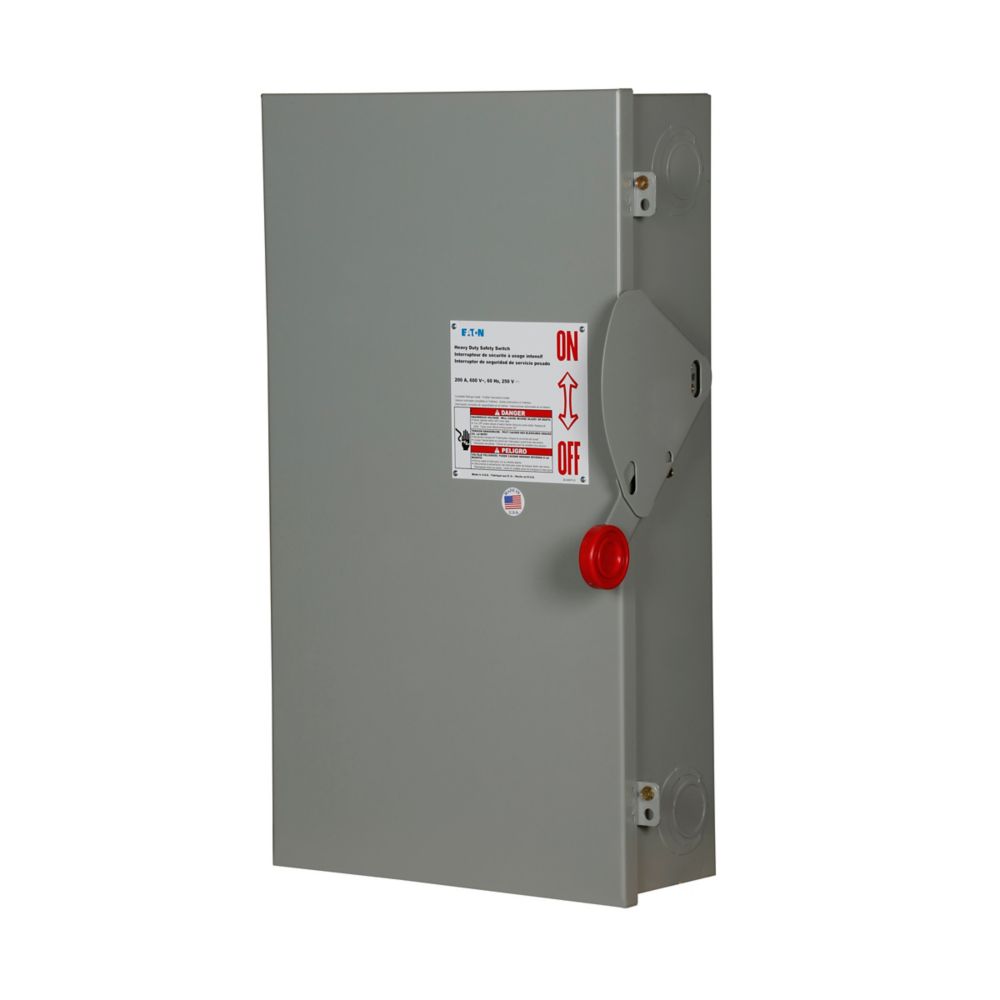

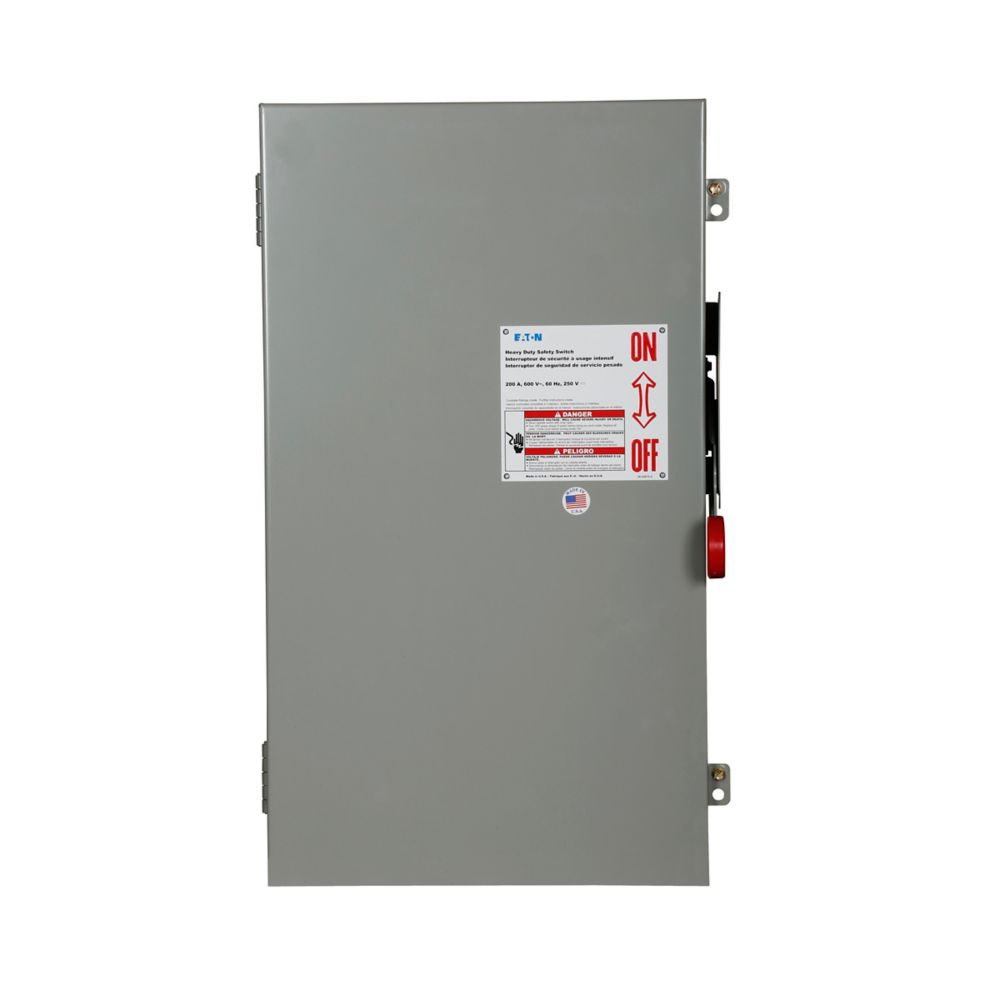

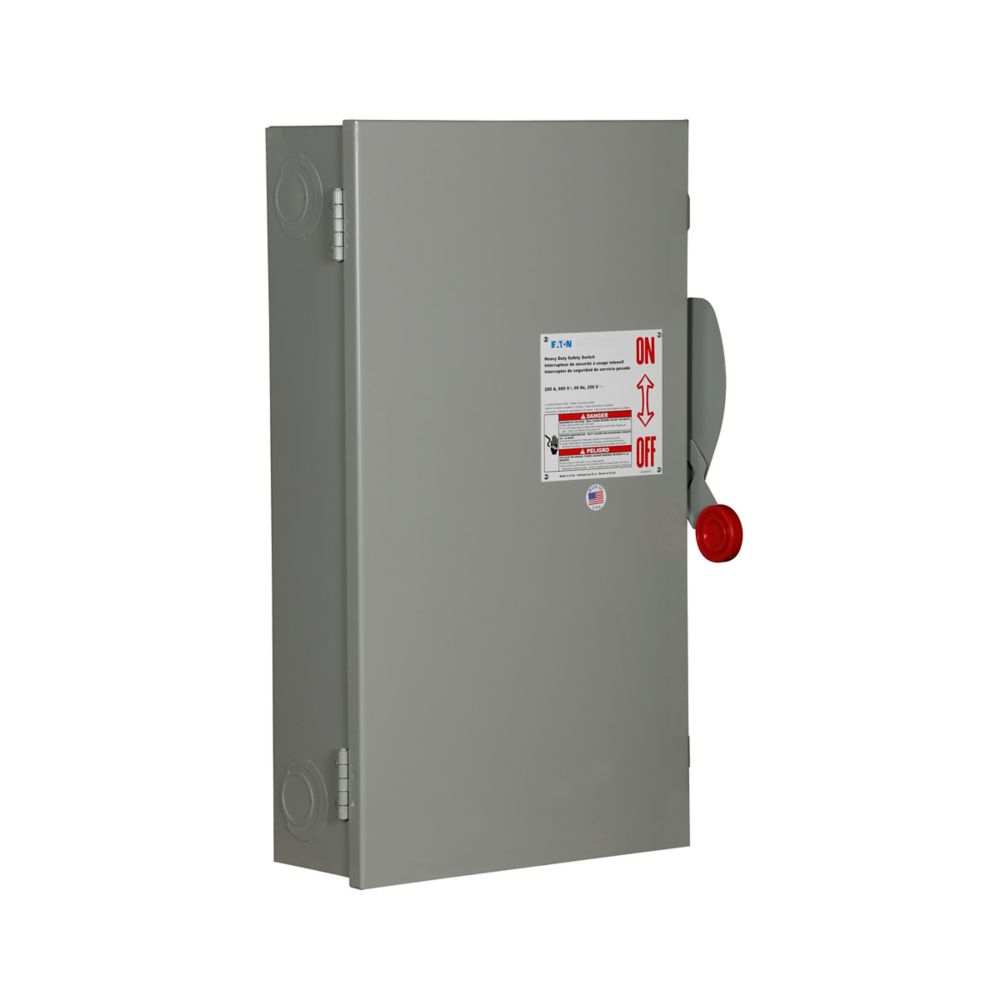

Product Description - DH364UGK - Eaton Disconnect
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 200A, NEMA 1, Painted steel, Non-Fusible, Three-pole, Three-wire, 15 at 240 Vac TD 1 Ph, 50 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph
