Overview

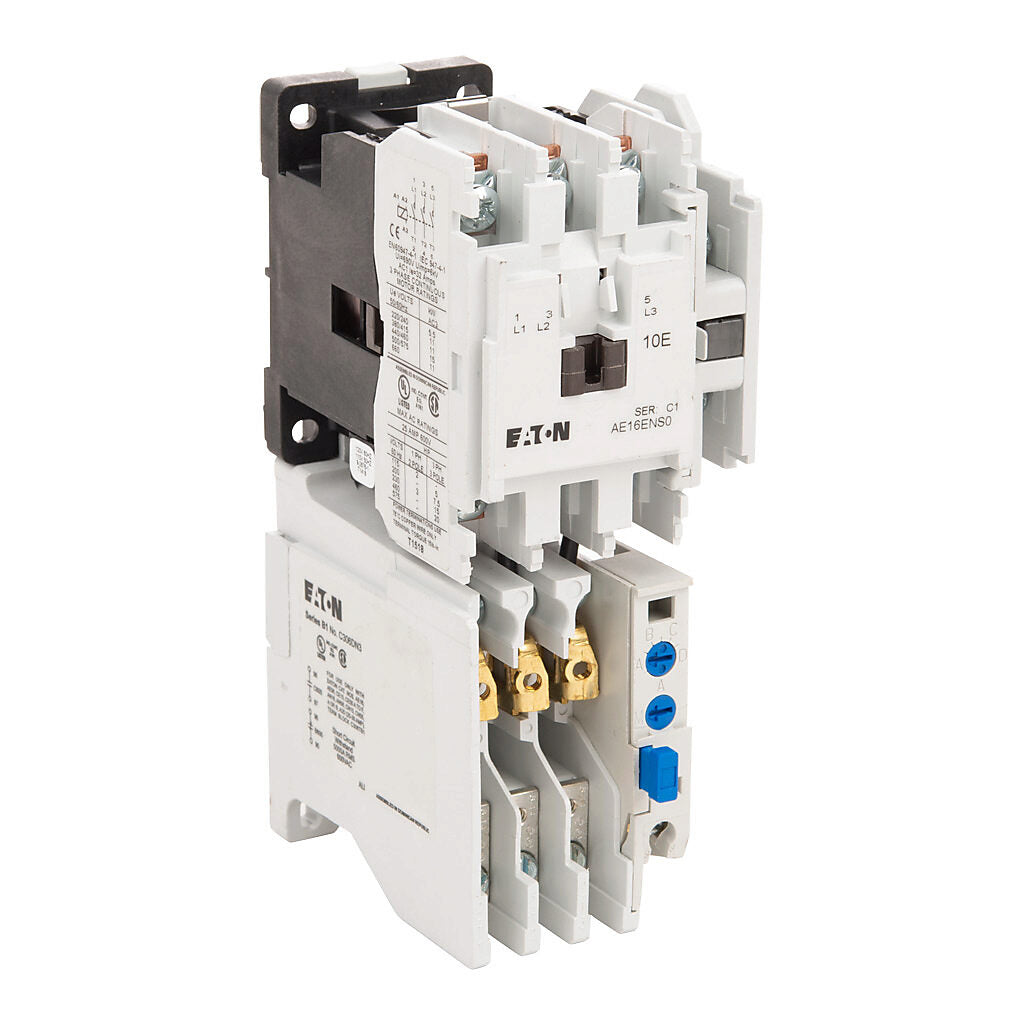

Product Specifications - AE16ENS0AC - Eaton Electric Motor Starter
-
Part Number:
AE16ENS0AC -
Manufacturer:
-
Family:
Freedom Series -
Pole:
3 -
Amp
25 -
Volt:
600 -
Coil Voltage Min:
110 -
Coil Voltage Max:
120 -
Phase:
3
-
Category:
-
Type:
AE16
Dimensions
-
Weight:
1.6 lbs
Standards
Product Description - AE16ENS0AC - Eaton Electric Motor Starter
Cutler Hammer, Freedom Series, type AE16, 3P, 1 or 3PH, 25A, 600V, 3hp @ 380 50Hz, max UL hp: 0.25hp @ 115V 1PH, 0.5hp @ 230V 1PH, 1.5hp @ 208V 3PH, 1.5hp @ 240V 3PH, 3hp @ 480V 3PH, 5hp @ 600V 3PH; max kW rating: 1.1hp @ 220V 3PH, 2.2hp @ 380V 3PH, 2.2hp @ 415/440V 3PH, 4hp @ 500/550V 3PH, 1.5hp @ 660V 3PH, max UL AC-3 ampere rating AC 7A, IEC 947 AC-1 thermal current 20A, AC coil, N/O side mounted auxiliary contact, interchangeable heater overload relay, non-reversing, open type starters, IEC size A.
