Overview

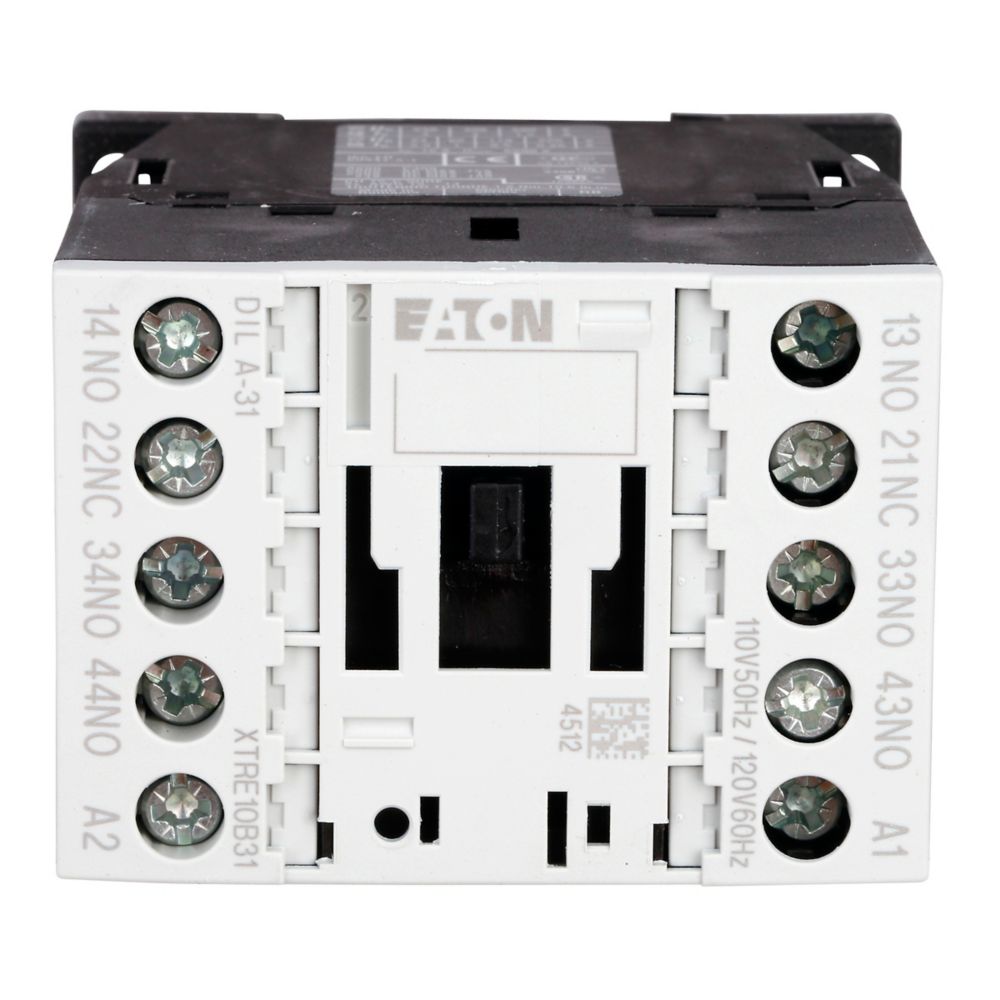

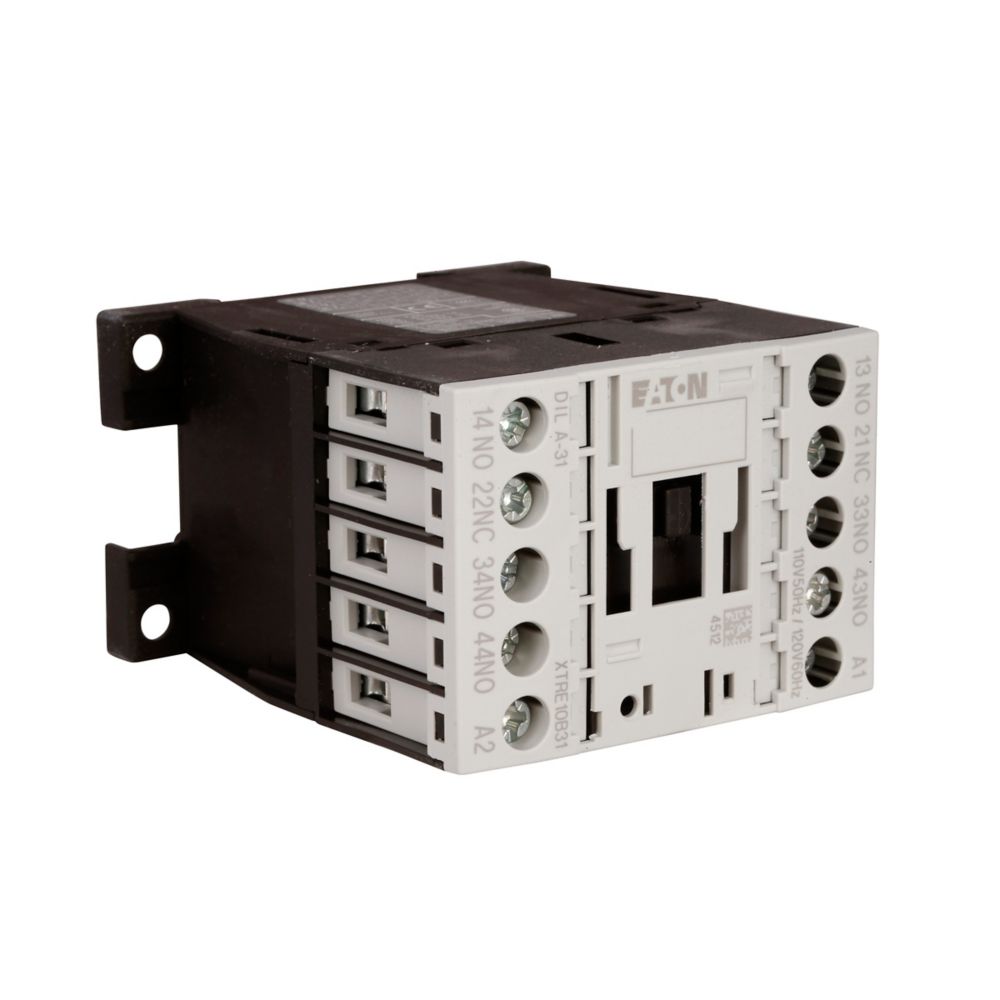

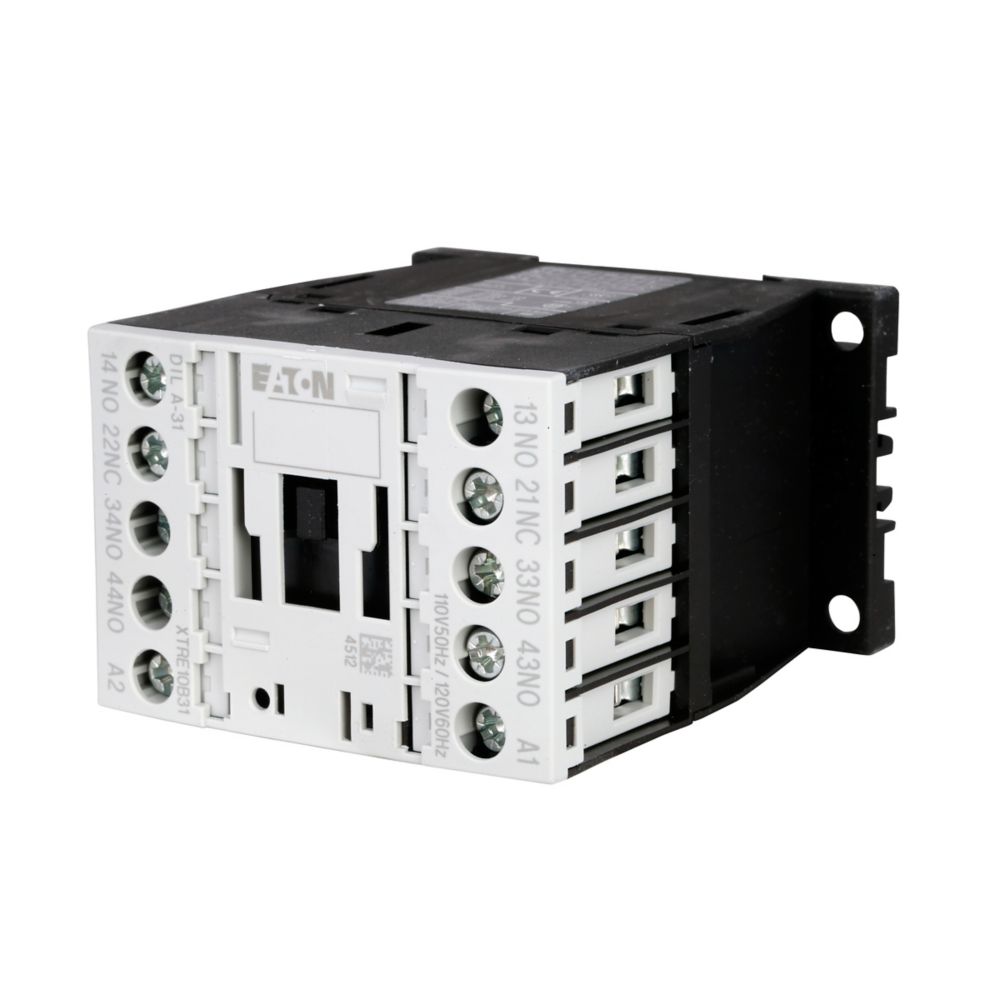

Product Specifications - XTRE10B31A - Eaton Cutler-Hammer Control Relay
-
Part Number:
XTRE10B31A -
Manufacturer:
-
Category:
-
Type:
Control relay
-
Frame Size:
45mm- standard -
Coil:
110-120 Vac, 50/60 Hz -
Coil Voltage:
110-120 Vac, 50/60 Hz -
Terminals:
Screw terminals
Dimensions
-
Dimensions (HxWxD):
3 in x 2 in x 3 in -
Weight:
0.7 lb
Standards
Product Description - XTRE10B31A - Eaton Cutler-Hammer Control Relay
XT IEC Control Relay, Screw terminals, 45 mm - standard Frame size, 3NO-1NC contact configuration, 110V 50 Hz, 120V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 4A at 380/400/415V rated operational voltage
