CH290 - Eaton - 90 Amp Circuit Breaker
Plug-In - 90 Amp - 2 Pole - 240 Volt
Eaton Cutler-Hammer
SKU: CH290
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

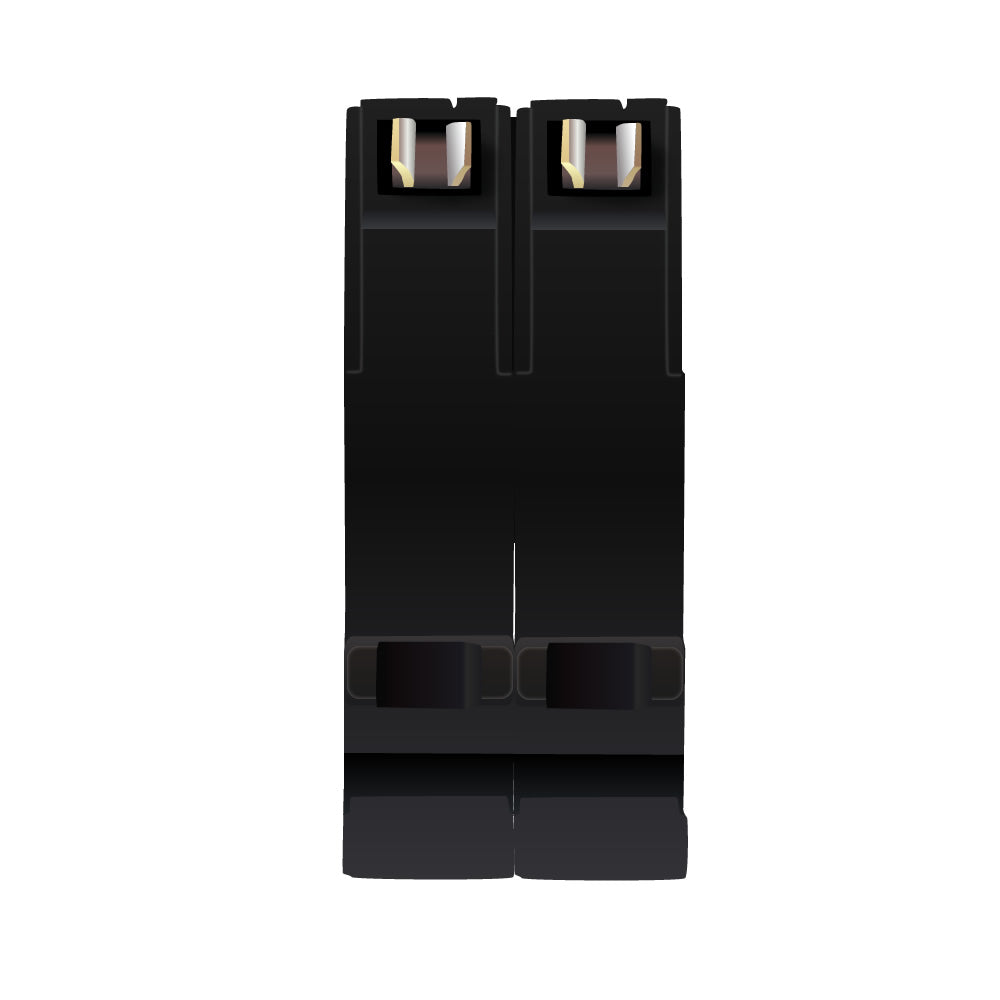

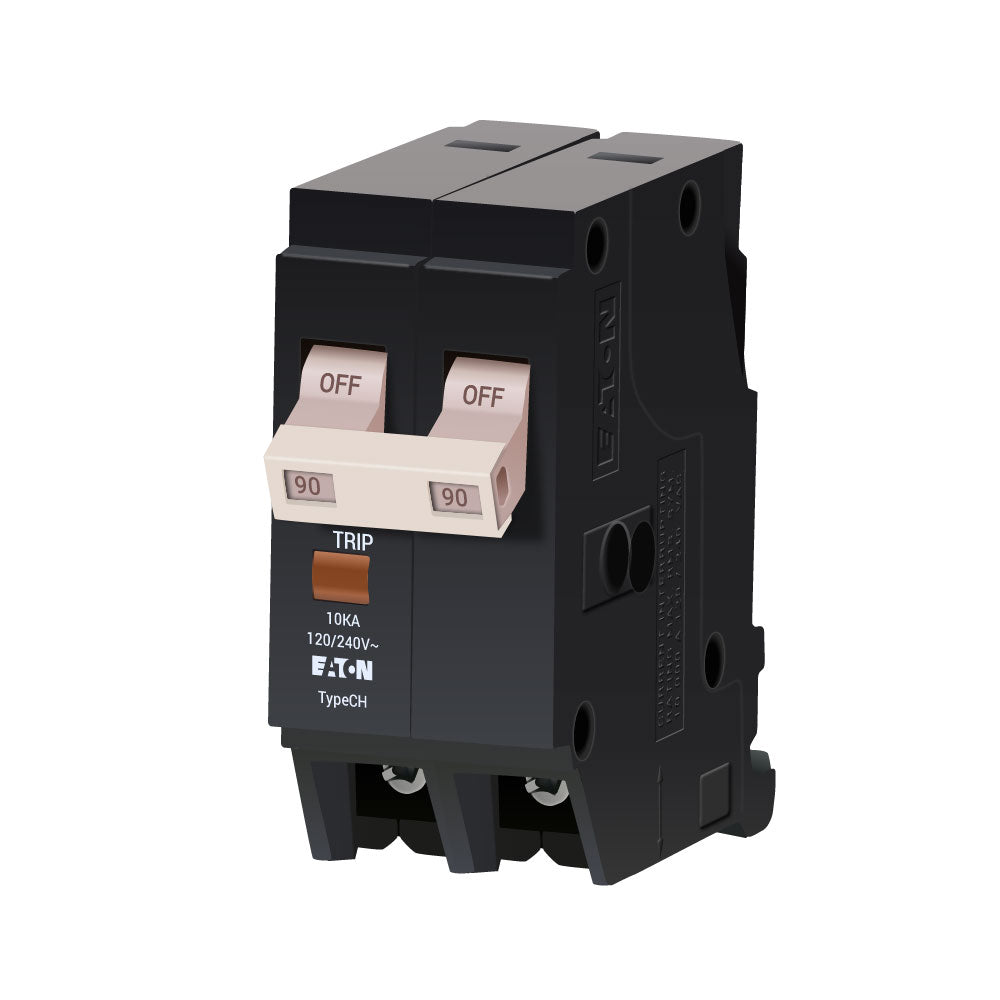

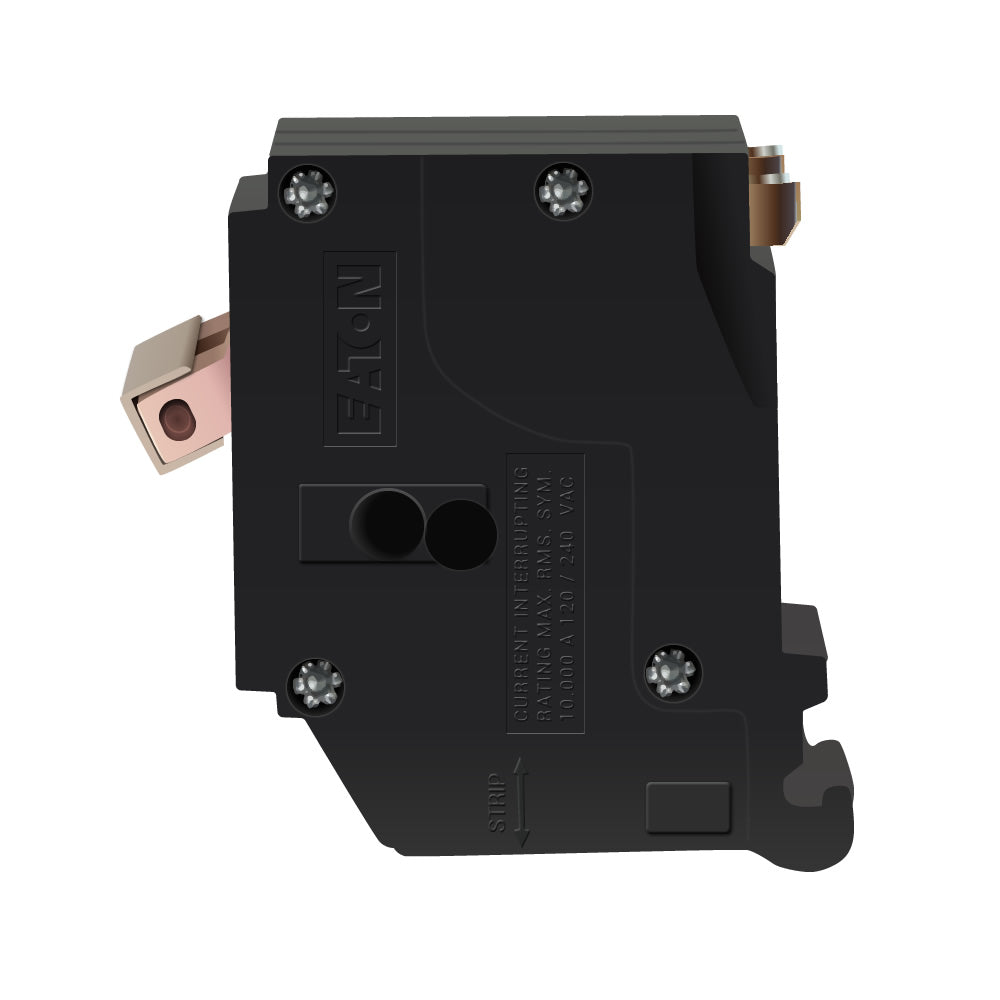

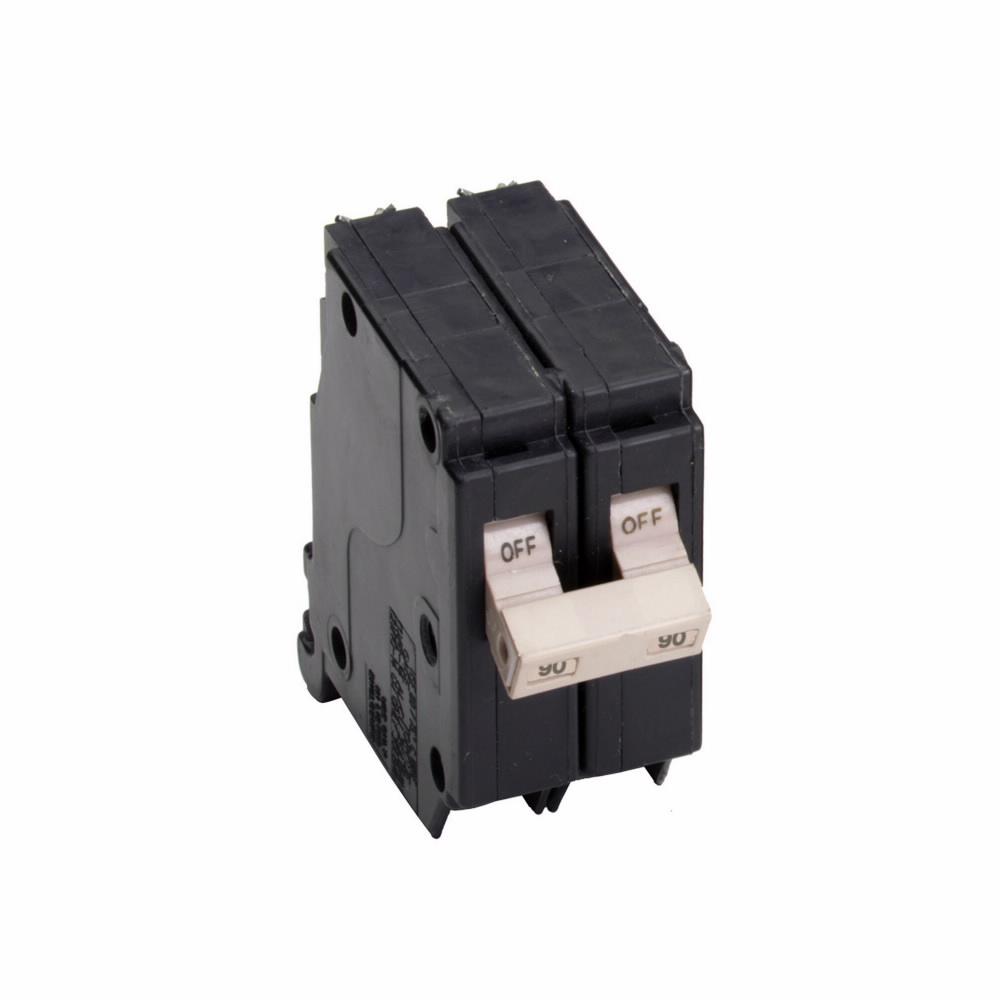

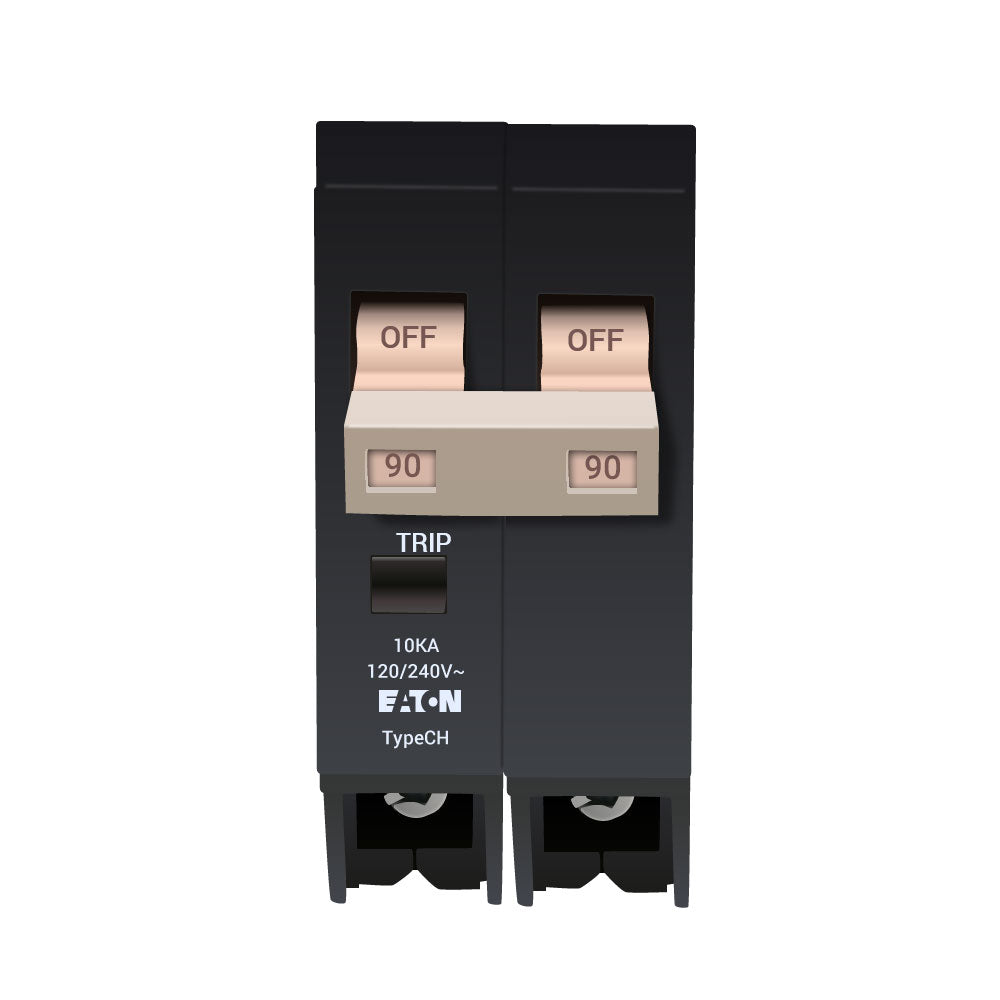

CH290 - Eaton Cutler-Hammer Plug-In Circuit Breaker
Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 90 amps and voltage rating of 120/240 VAC it is a common trip breaker that has AIC rating of 10000 amps and accommodates copper/aluminum wire of size 10 to 1/0 AWG circuit breaker is Ul 489 listed and Csa certified.
Specifications:
- Product Name: Eaton Type CH 3/4-inch Standard Circuit Breaker
- Product Length: 3.25 IN
- Product Height: 3.375 IN
- Product Width: 1.5 IN
- Product Weight: .57 LB
- Certifications: UL 489
- Catalog Notes: Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces
- Interrupt Rating: 10 kAIC
- Type: Type CH 3/4-inch Standard Circuit Breaker
- Wire Size: #10-1/0 AWG Cu/Al
- Used With: Type CH Loadcenters
- Main Circuit Breaker: CH
- Voltage Rating: 120/240V
- Amperage Rating: 90A
- Trip Type: Common
- Number Of Poles: Two-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3.375" x 1.5" x 3.25"
