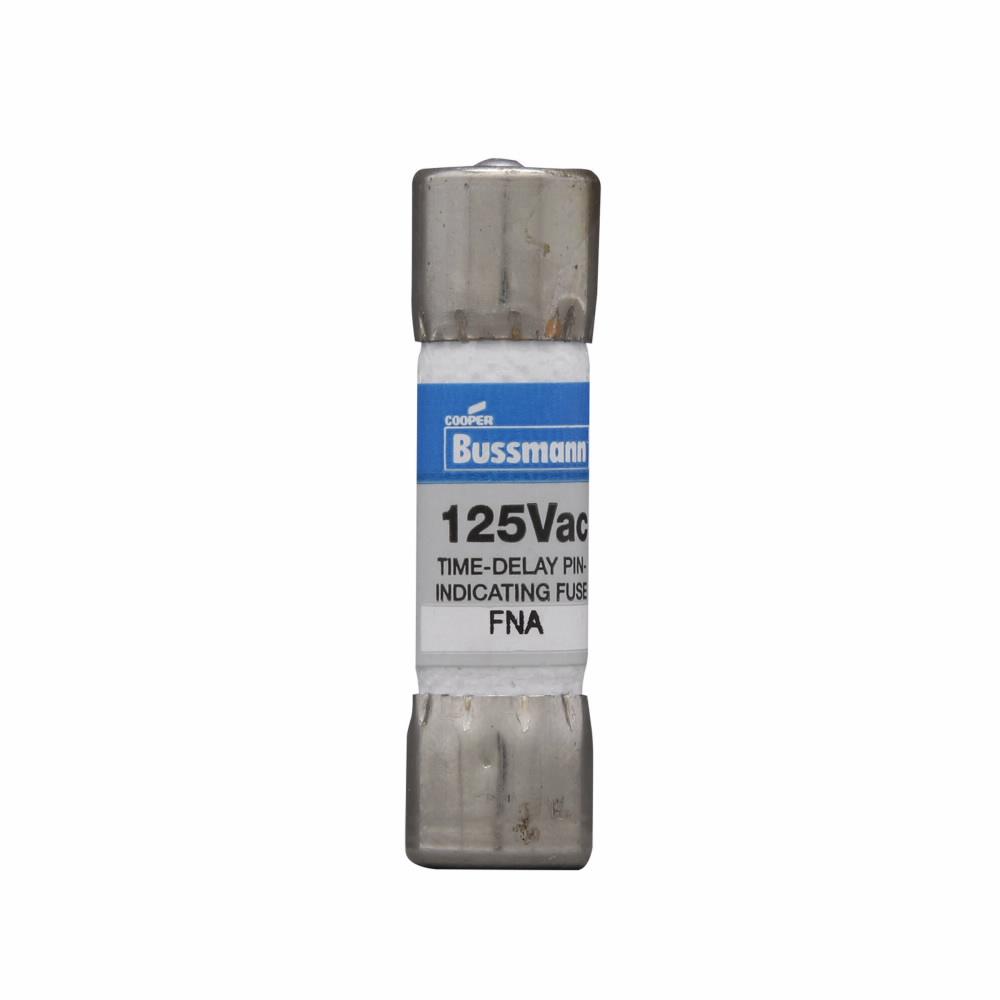

FNA-6-1/4 - Eaton Cutler-Hammer Midget Fuse
Cooper / Bussmann FNA series 6-1/4 ampere UL Pin Indicating dual element time delay characteristics midget fuse with maximum voltage rating of 125V and high interrupting rating of 10 kiloampere at 125Vac. FNA series fuses silver-plated pin for positive electrical signal activation and provide excellent protection for all types of circuits .
Specifications:
- Product Name: Eaton Bussmann series FNA fuse
- UPC: 51712713610
- Product Length/Depth: 1.5 IN
- Product Height: .41 IN
- Product Width: .41 IN
- Product Weight: .2 LB
- Compliances: CE Marked, RoHS Compliant
- Fuse Indicator: Non Indicating
- Interrupt Rating: 10 kAIC at 125 Vac
- Type: Time delay
- Number Of Elements: Dual
- Connection: Ferrule end X ferrule end
- Material Type: Silver-plated pin
- Voltage Rating: 125V
- Application: Inductive load circuits, electronic circuits
- Amperage Rating: 6-1/4A
- Diameter: 10.3 MM
- Packaging Type: Standard
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 0.41" x 0.41" x 1.5"
