BD2020 - Eaton - 20 Amp Tandem Circuit Breaker
Plug-In - 20/20 Amp - 1 Pole - 120 Volt
Eaton Cutler-Hammer
SKU: BD2020
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

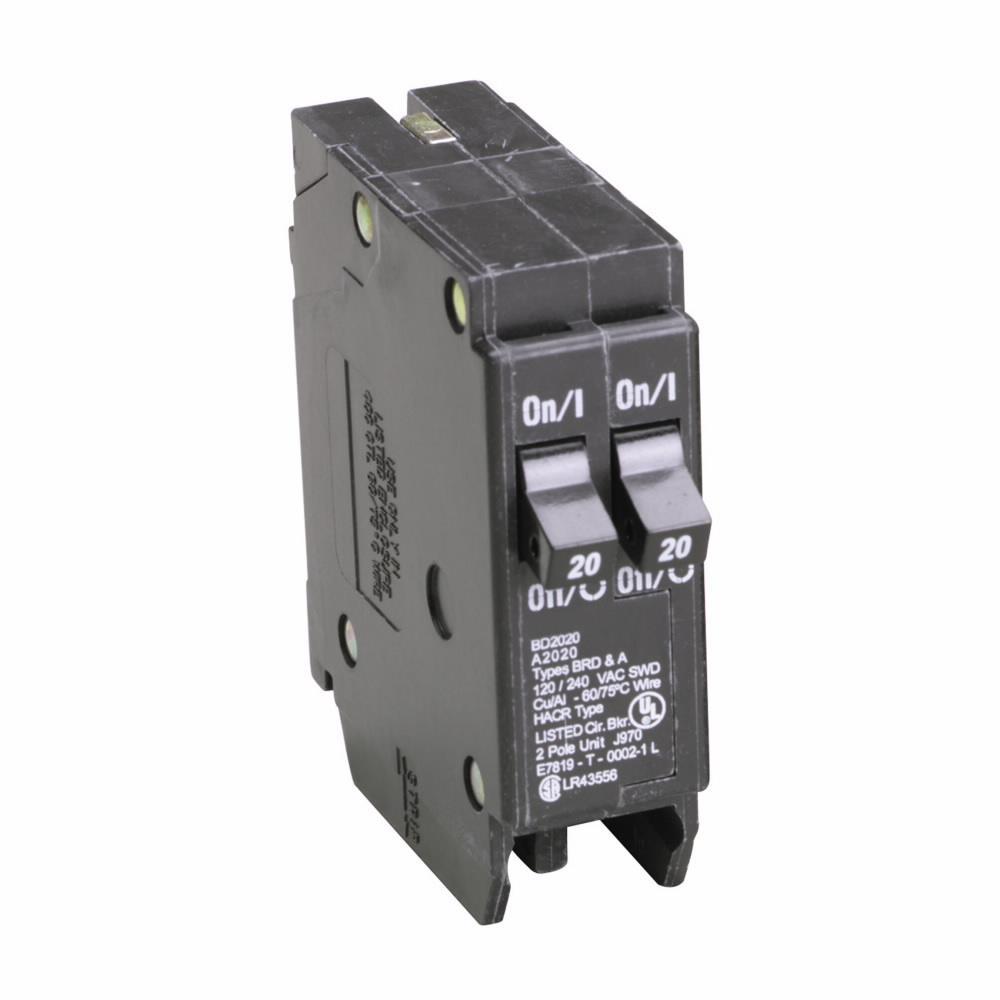

BD2020 - Eaton Cutler-Hammer Plug-On Circuit Breaker
Eaton / Cutler-Hammer Duplex Plug-On Circuit Breaker Its Compact And Easy to Install two pole duplex circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 20 Amps on the outside pole and an inside pole it has a voltage rating of 120 Vac and AIC rating of 10 kilo-Amps it accommodates copper/aluminum wire of size 14 - 4 AWG at 60 or 75 deg C circuit breaker is Ul 489 listed and Csa certified.
Specifications:
- Product Name: Eaton Type BD 1-inch CTL plug-on breaker
- UPC: 786676369251
- Product Length/Depth: 3.2 IN
- Product Height: 3 IN
- Product Width: 1.6 IN
- Product Weight: .4 LB
- Compliances: Federal Specifications Classification W-C375
- Certifications: UL 489
- Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated
- Special Features: Includes Rejection Tab feature
- Interrupt Rating: 10 kAIC
- Type: BD Duplex
- Wire Size: #14-4 AWG Cu/Al
- Used With: Type BR Loadcenters
- Main Circuit Breaker: BD
- Mounting Method: Plug-on
- Voltage Rating: 120V
- Amperage Rating: (2) 20A
- Number Of Poles: Single-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3" x 1.6" x 3.2"
