AP20467 - Crouse-Hinds - Plug

Crouse-Hinds SKU: AP20467
AP20467 - Crouse-Hinds 200 Amp 4 Pole 600 Volt Crouse-Hinds Arktite AP Plug
AP20467 - Crouse-Hinds - Plug
AP20467 - Crouse-Hinds - Plug

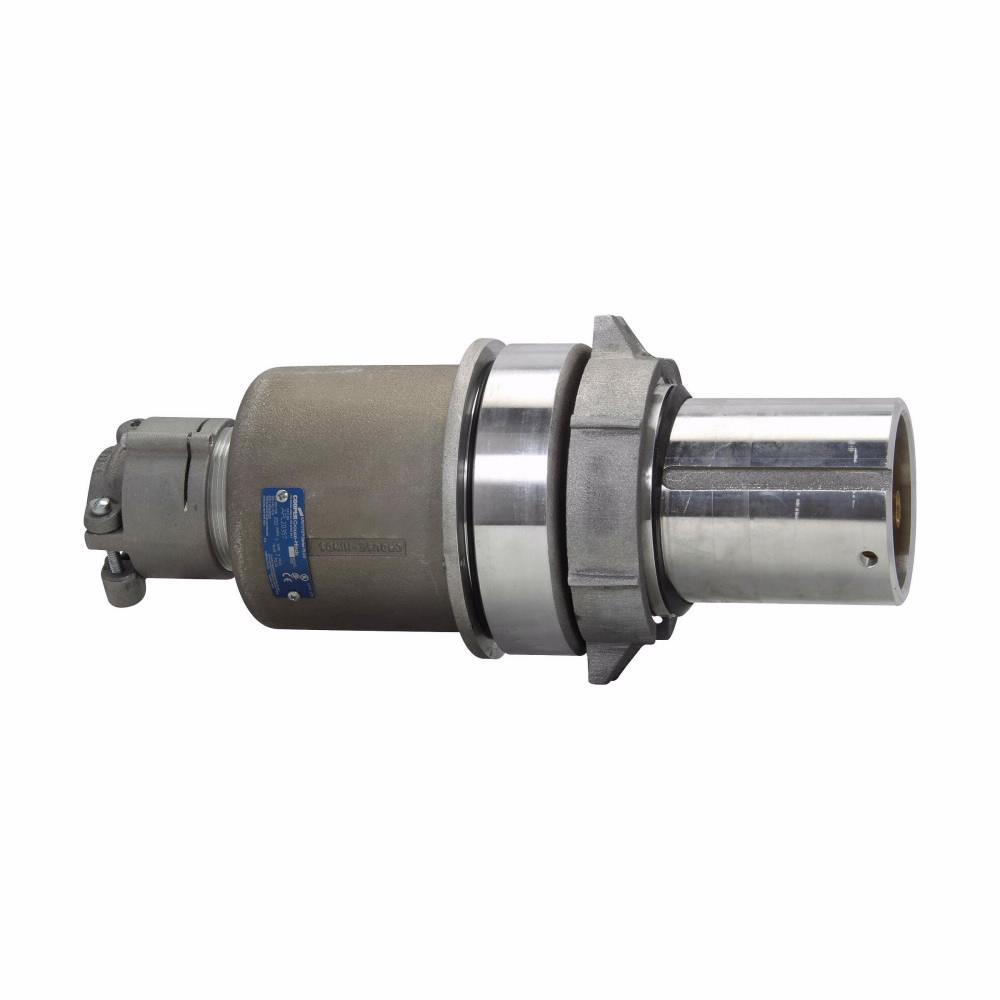

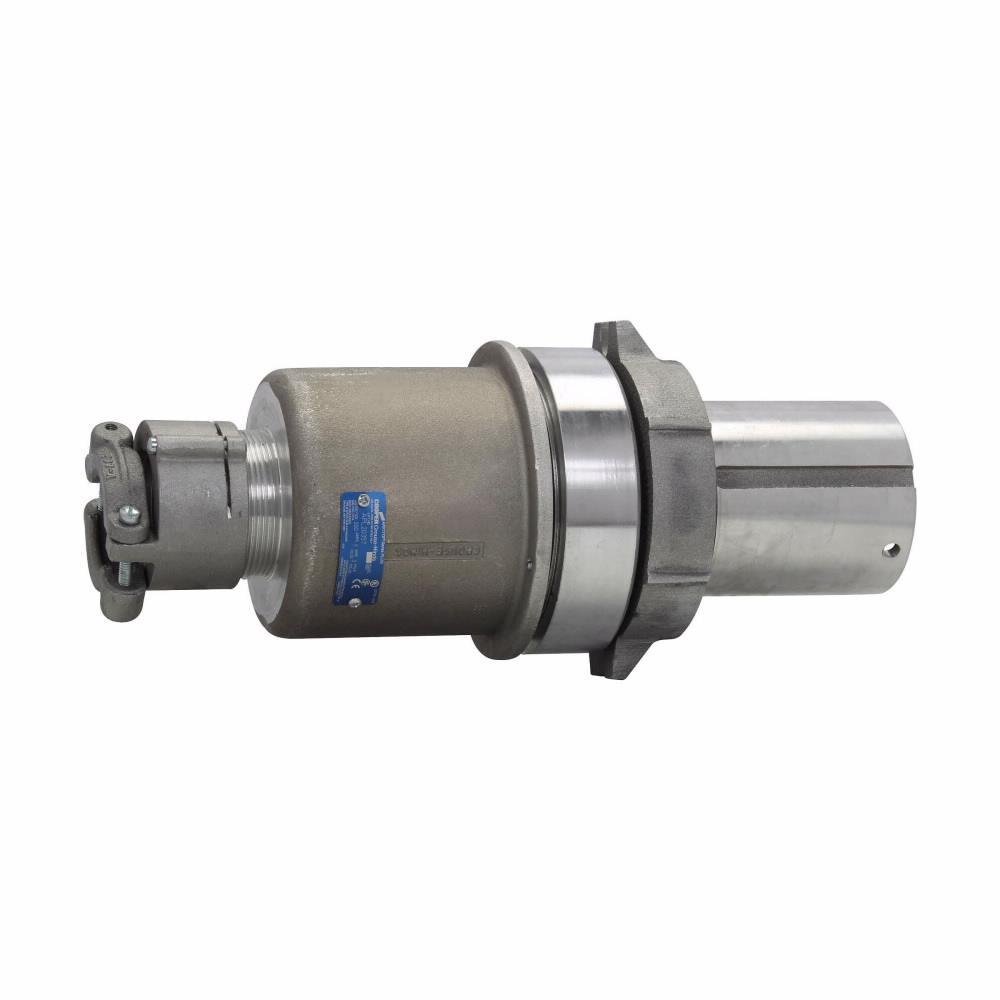

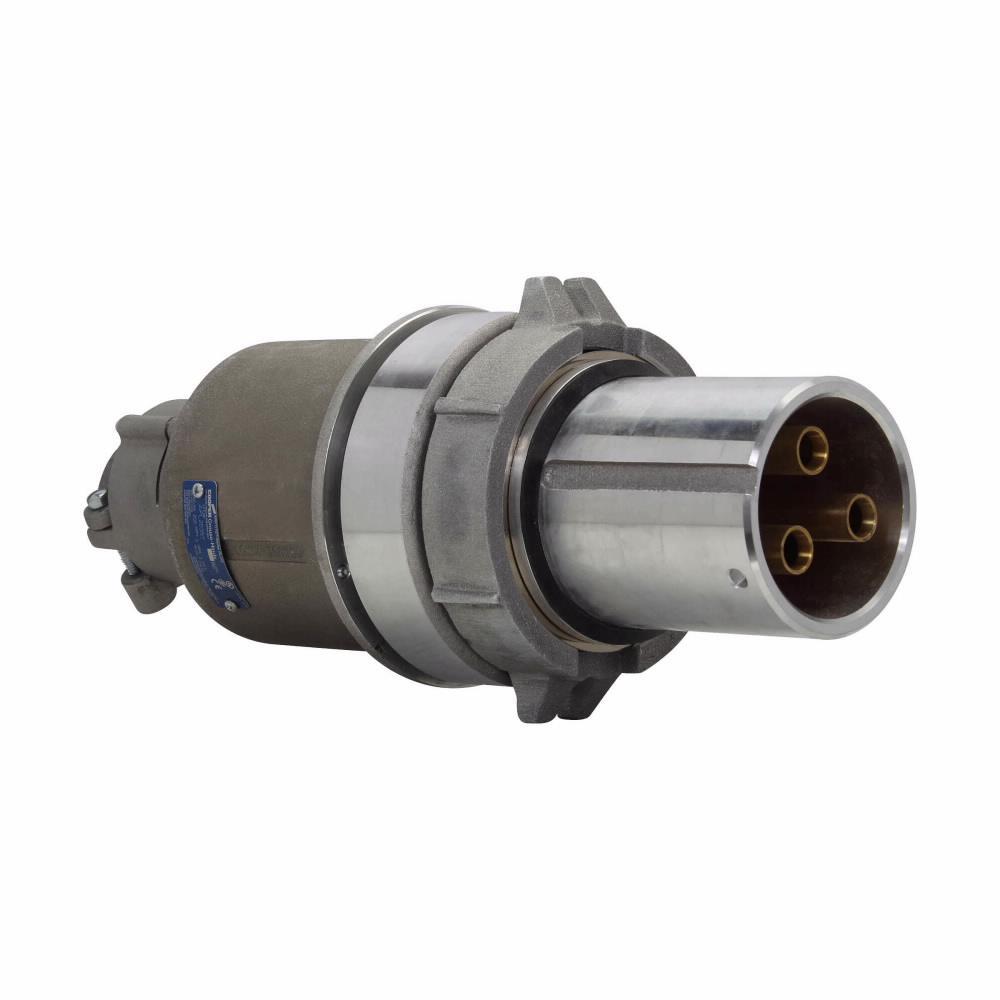

Images are for reference only

AP20467 - Crouse-Hinds - Plug

Crouse-Hinds SKU: AP20467
Regular price $1,389.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

AP20467 - Crouse-Hinds Crouse-Hinds Arktite AP Plug

Circuit breaking: plugs through 100 ampere rating may be disconnected under load; 150-400 ampere units are for service disconnect use only. Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate, and provides for positive polarization. Extra wide electrical spacing allows for maximum safety. Insulator materials are the result of intensive testing. Selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance.

A variety of installations is possible due to the availability of several types of back boxes.Designed to withstand rough usage and the effects of adverse environments. Reversible interiors, 30, 60 and 100 ampere (except 30 and 60 ampere, 5-pole) Arktite plug and receptacle interiors are interchangeable using a screwdriver. This makes it possible to feed a normally de-energized receptacle from an energized plug with usual Arktite safety; no energized contacts are exposed.

Specifications:

  • Product Name: Eaton's Crouse-Hinds series Arktite AP Plug
  • Product Length: 14.75 IN
  • Product Height: 6.75 IN
  • Product Width: 6.75 IN
  • Product Weight: 12.25 LB
  • Grounding Style: 2
  • Termination Style: Mechanical lug
  • Wire Well Size: 0.687"
  • Configuration: Three-wire, four-pole
  • Device Type: Plug
  • Material: Copper-free aluminum
  • Standards Type: NEC/CEC
  • Amperage Rating: 200A
  • Cable Diameter: 1.375-1.875"
  • Trade Size: 2"
  • Nema Rating: 3R
  • Frequency Rating: 50-400 Hz
  • Area Classification: Ordinary/Non-Hazardous Locations
  • Voltage Rating: 600 Vac, 250 Vdc
  • Authentic Crouse-Hinds Product
  • Dimensions (H x W x L): 6.75" x 6.75" x 14.75"
