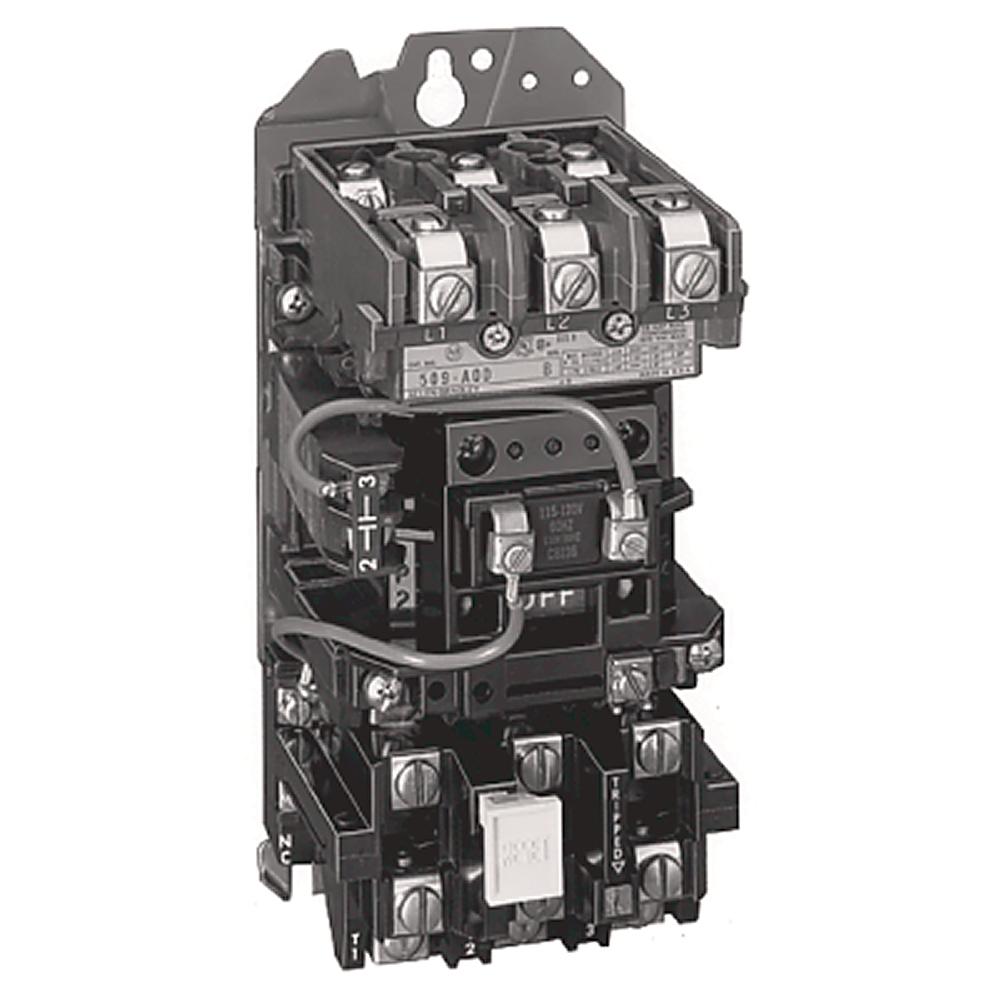

509-COD - Allen-Bradley 45 Amp 3 Pole 120V Volt Starter

Starter, Full Voltage, NEMA Size 2, 120 Volt AC Coil, Eutectic Alloy, Overload Relay, requires Heaters, Not Supplied, Open
A compact design that is ideal when space is at a premium. Allen-Bradley Bulletin 509 NEMA enclosed non-combination non-reversing starters offer provide motor control and overload protection. And they require a separate disconnection means for the branch circuit protection. Catalog item 509-COD from Rockwell Automation is a NEMA enclosed non-reversing starter.Allen-Bradley is a trademark of Rockwell Automation, Inc.

• Manufacturer: Allen-Bradley

Specifications

• Number of indicator lights: 0
• Voltage type for actuating: AC
• With transformer: No
• Suitable for emergency stop: Yes
• External reset possible: Yes
• With short-circuit release: Yes
• With fuse: No
• Rated control supply voltage at AC 50 Hz: 110 V
• Rated control supply voltage at AC 60 Hz: 120 V
• Release class: CLASS 30
• Type of motor starter: Direct online starter (DOL)
• Service limit current rating: 52 A
• Continuous current: 45 A
• Circuit closing inrush current peak including offset, max: 483 A
• Heat dissipation: 5.9 W (4...5 poles)
• Coil operating limits: 85...110% (4...5 poles)
• Operating volt amperes burden: Sealed: 38VA, 60 Hz coils (4...5 poles)
• Hp rating, max: 7-1/2 Hp @ 230V load voltage, 1-phase (non-plugging and non-jogging duty)
• Transformer primary switching kVA rating: 8.9 kVA @ 575V load
• voltage, 3-phase (inrush current = 20...40 times continuous current)
• Capacitor switching kVAR: 31 kVAR @ 575V, 3-phase (If maximum available current (at capacitor terminals) is greater than 3000 A, contact your local Rockwell Automation sales office, Allen"‘Bradley distributor, or NEMA ICS-2 standard)
• Temperature compensated overload protection: Yes
• Coordination class according to IEC 60947-4-3: Class 2
• Type of electrical connection of main circuit: Screw connection
• Type of electrical connection for auxiliary- and control current
• circuit: Screw connection
• Rail mounting possible: Yes
• Number of auxiliary contacts, max: 8
• Mechanical life operations: 1.0E7
• Average operating time, pick-up: 27 ms
• Average operating time, drop-out: 13 ms
• Required torque on power terminal wire clamps and pressure
• connectors or lugs: 45 lb.inch
• Auxiliary contact material: Silver
• Type of power terminal: Pressure terminals
• Wire size: For power terminals: 14...4 AWG
• Enclosure: Open type
• Power contact material: Silver Alloy
• Requirements for sizing of wire: All wire rated 167 °F (75 °C) or higher must be sized per the local electrical code for 167 °F (75 °C) wire
• NEMA size: Size 2
• Operating temperature: 65 °C
• Operating position: Vertical
• Altitude: 10000 feet before derating
• Overload relay: Eutectic alloy overload relay
• Corrosion-resistance: All metal parts are treated for corrosion-resistance
