509-AOD - Allen-Bradley - 18 Amp 120V Volt Starter

18 Amp

Allen-Bradley SKU: 509-AOD

Images are for reference only

509-AOD - Allen-Bradley - 18 Amp 120V Volt Starter

18 Amp

Allen-Bradley SKU: 509-AOD
Regular price $388.94
  • In stock and ready to ship
  • Inventory on the way
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

509-AOD - Allen-Bradley 18 Amp 120V Volt Starter

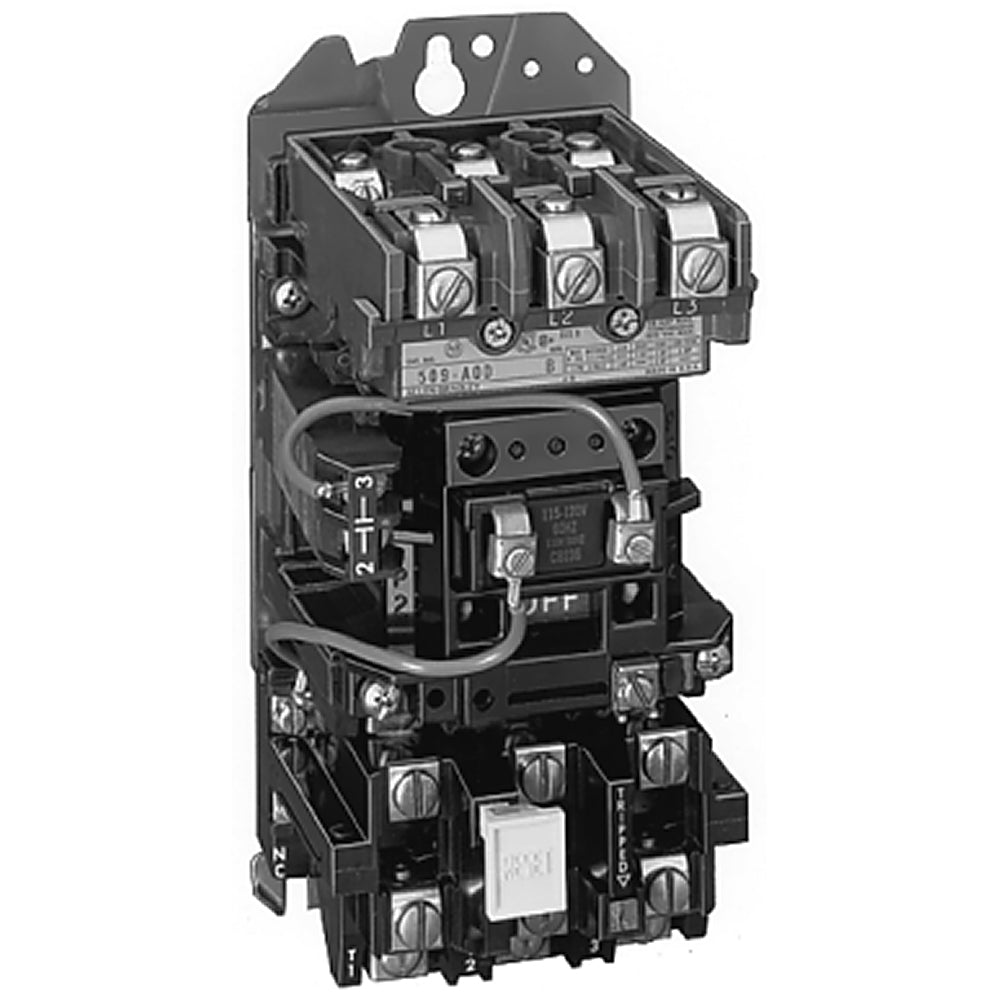

Starter, Full Voltage, NEMA Size 0, Open, 120 Volt AC Coil, Eutectic Alloy Overload Relay
A compact design that is ideal when space is at a premium. Allen-Bradley Bulletin 509 NEMA enclosed non-combination non-reversing starters offer provide motor control and overload protection. And they require a separate disconnection means for the branch circuit protection. Catalog item 509-AOD from Rockwell Automation is a NEMA enclosed non-reversing starter.Allen-Bradley is a trademark of Rockwell Automation, Inc.

  • Manufacturer: Allen-Bradley


  • Number of indicator lights: 0
  • Voltage type for actuating: AC
  • With transformer: No
  • Suitable for emergency stop: Yes
  • External reset possible: Yes
  • With short-circuit release: Yes
  • With fuse: No
  • Rated control supply voltage at AC 50 Hz: 110 V
  • Rated control supply voltage at AC 60 Hz: 120 V
  • Release class: CLASS 30
  • Type of motor starter: Direct online starter (DOL)
  • Service limit current rating: 21 A
  • Continuous current: 18 A
  • Circuit closing inrush current peak including offset, max: 140 A
  • Heat dissipation: 5.9 W
  • Coil operating limits: 85...110%
  • Operating volt amperes burden: Sealed: 29VA, 60 Hz coils
  • Hp rating, max: 5 Hp @ 575V load voltage, 3-phase (non-plugging and non-jogging duty)
  • Transformer primary switching kVA rating: 5.2 kVA @ 575V load voltage, 3-phase (inrush current ≤20 times continuous current)
  • Temperature compensated overload protection: Yes
  • Coordination class according to IEC 60947-4-3: Class 2
  • Type of electrical connection of main circuit: Screw connection
  • Type of electrical connection for auxiliary- and control current
  • circuit: Screw connection
  • Rail mounting possible: Yes
  • Number of auxiliary contacts, max: 8
  • Mechanical life operations: 1.0E7
  • Average operating time, pick-up: 21 ms
  • Average operating time, drop-out: 16 ms
  • Required torque on power terminal wire clamps and pressure
  • connectors or lugs: 20 lb.inch
  • Auxiliary contact material: Silver
  • Type of power terminal: Saddle or wire clamps
  • Wire size: For power terminals: 14...10 AWG
  • Enclosure: Open type
  • Power contact material: Silver Alloy
  • Requirements for sizing of wire: All wire rated 167 °F (75 °C) or higher must be sized per the local electrical code for 167 °F (75 °C) wire
  • NEMA size: Size 0
  • Operating temperature: 65 °C
  • Operating position: Vertical
  • Altitude: 10000 feet before derating
  • Overload relay: Eutectic alloy overload relay
  • Corrosion-resistance: All metal parts are treated for corrosion-resistance
