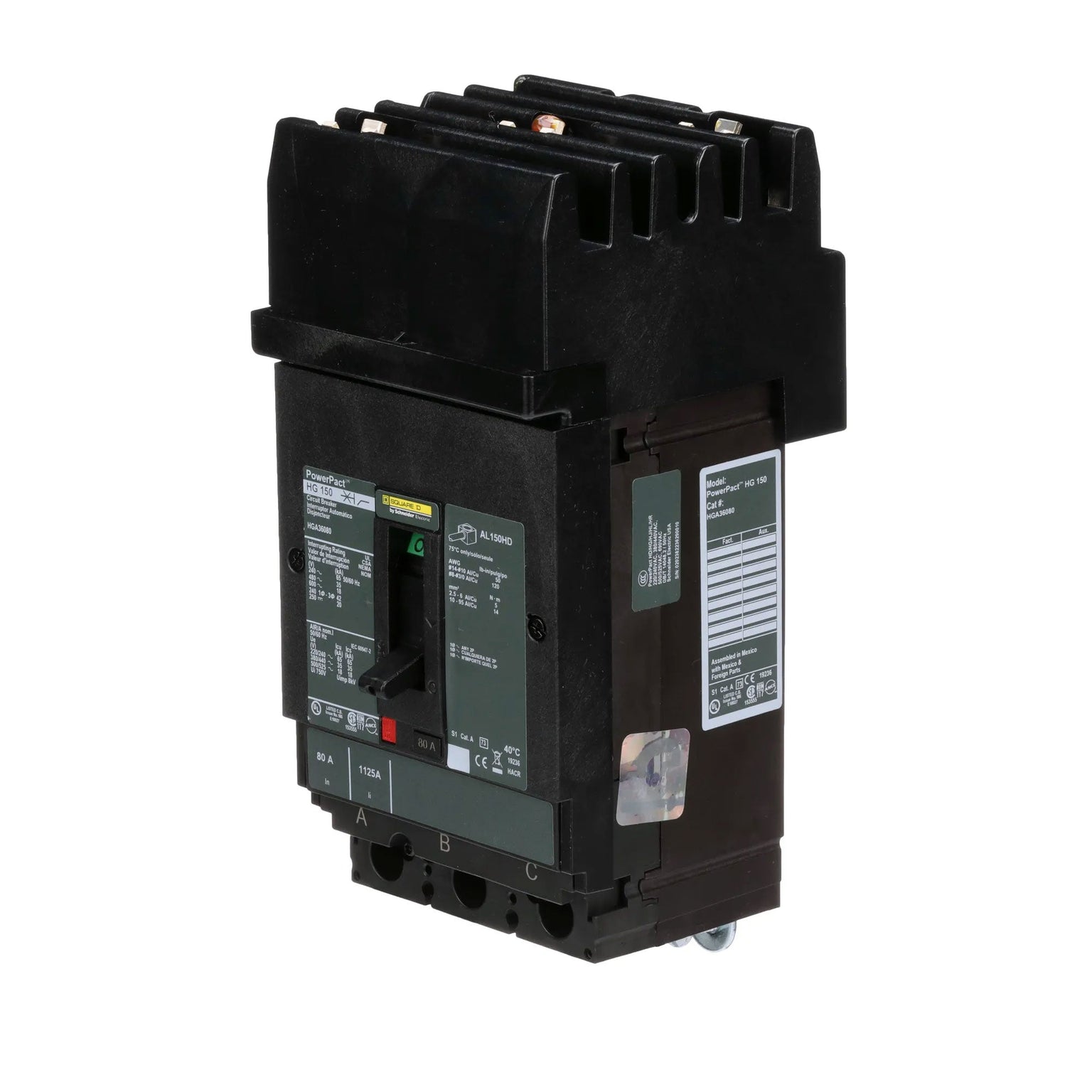

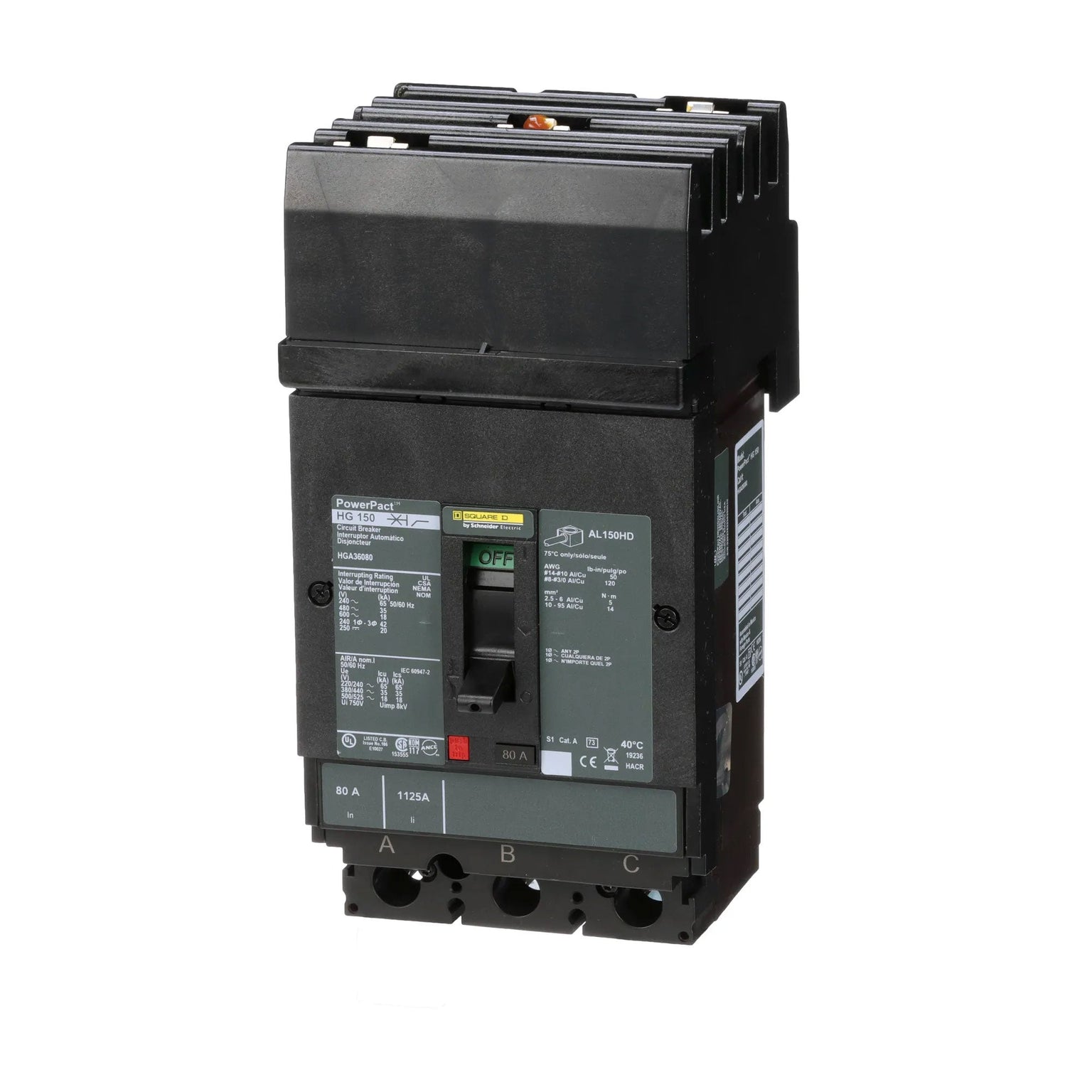

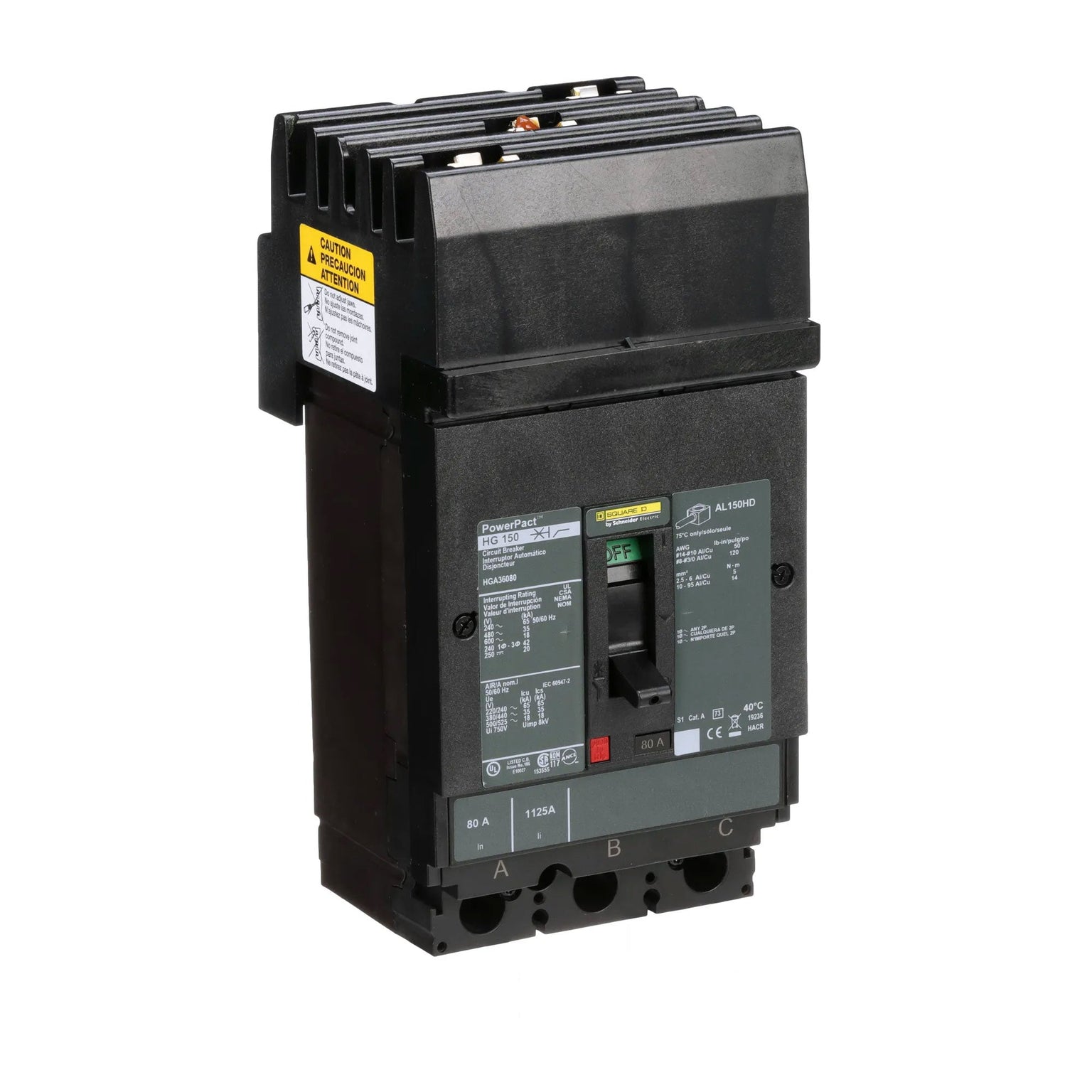

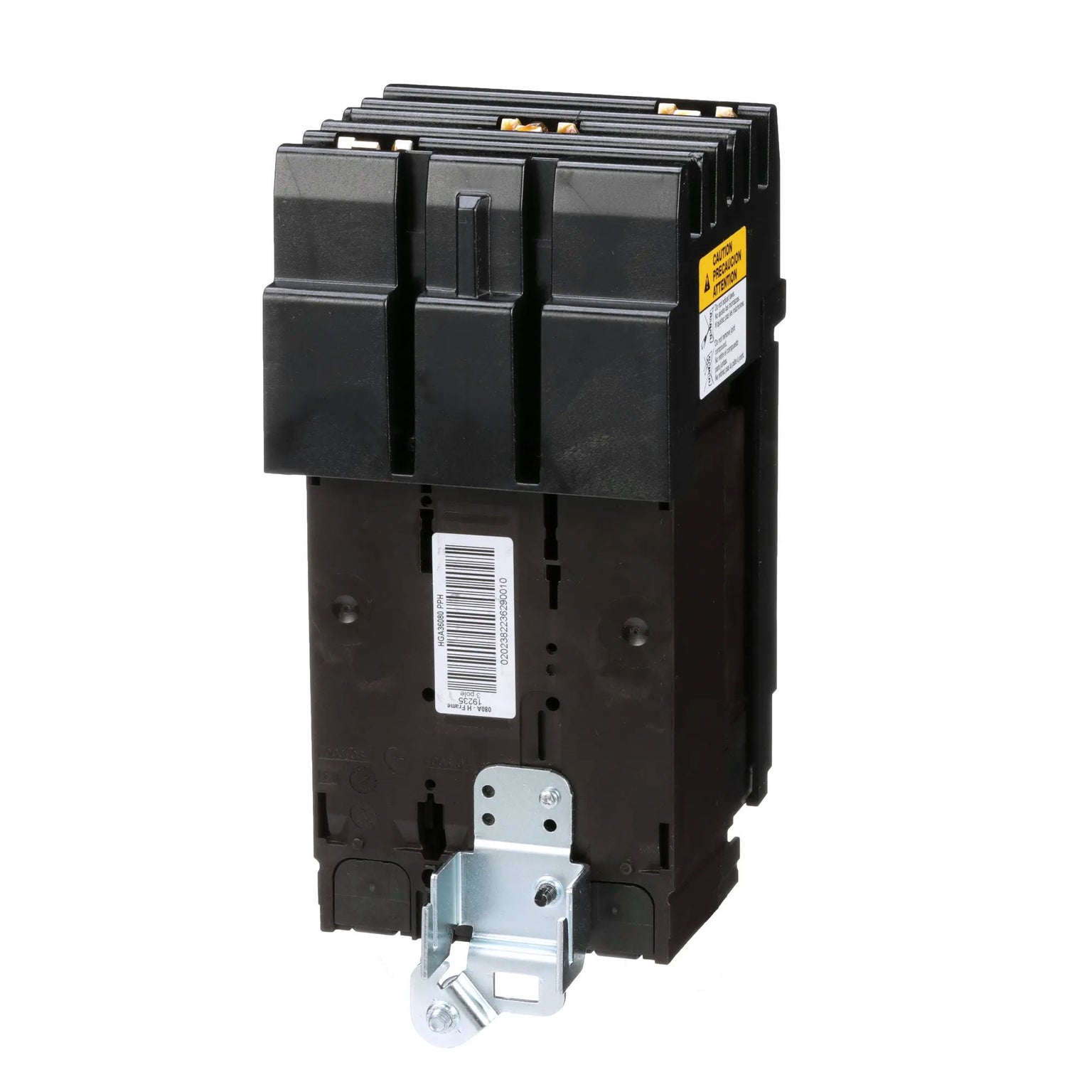

HGA36080 - Square D 80 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Square D, Powerpact, type HGA, 3PH, 3P, ABC phase connection, 80A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers

• Manufacturer: Schneider Electric
• Type: HGA
• Family: Powerpact
• UL Listed and CSA Certified

Interrupting Rating

• AIC Rating: 18kA@600V
• AIC Rating: 20kA@500V
• AIC Rating: 35kA@480V
• AIC Rating: 20kA@250V
• AIC Rating: 65kA@240V

Specifications

• H Frame
• 3 Pole
• 80 Amp
• 600 Volt
• 3 Phase
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous

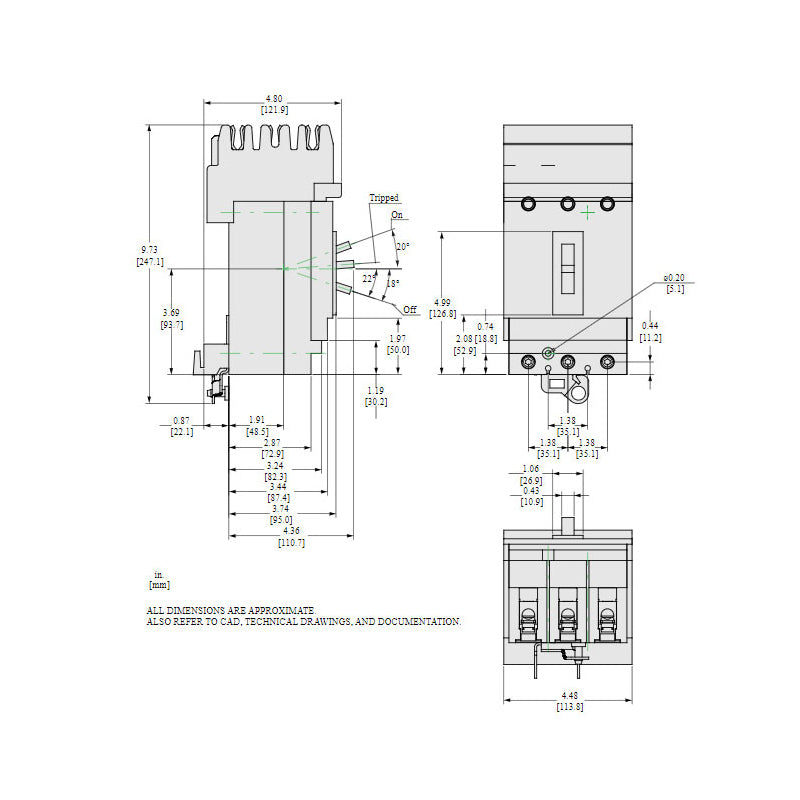

• Dimensions (H x W x L): 9.73" x 4.48" x 4.8"
