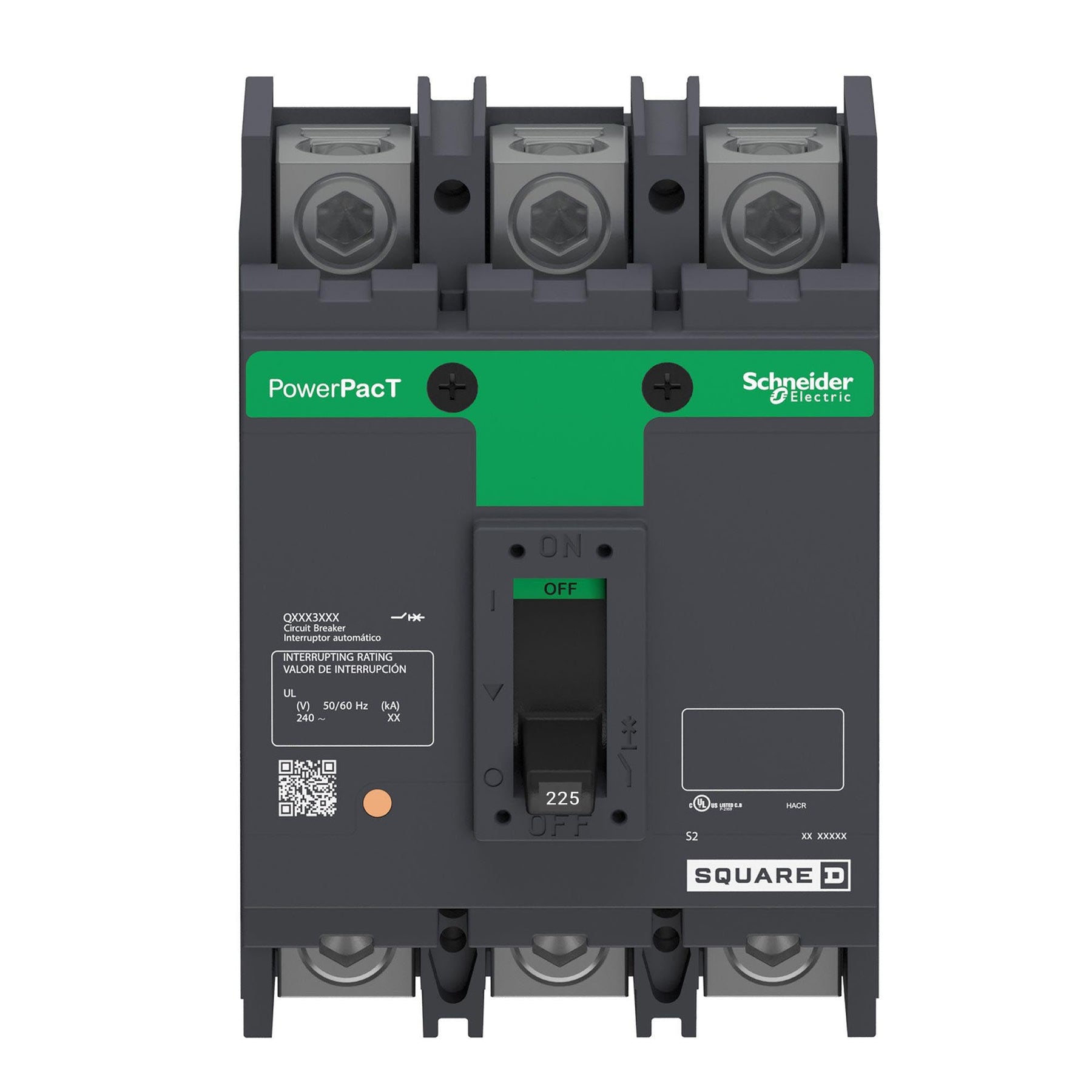

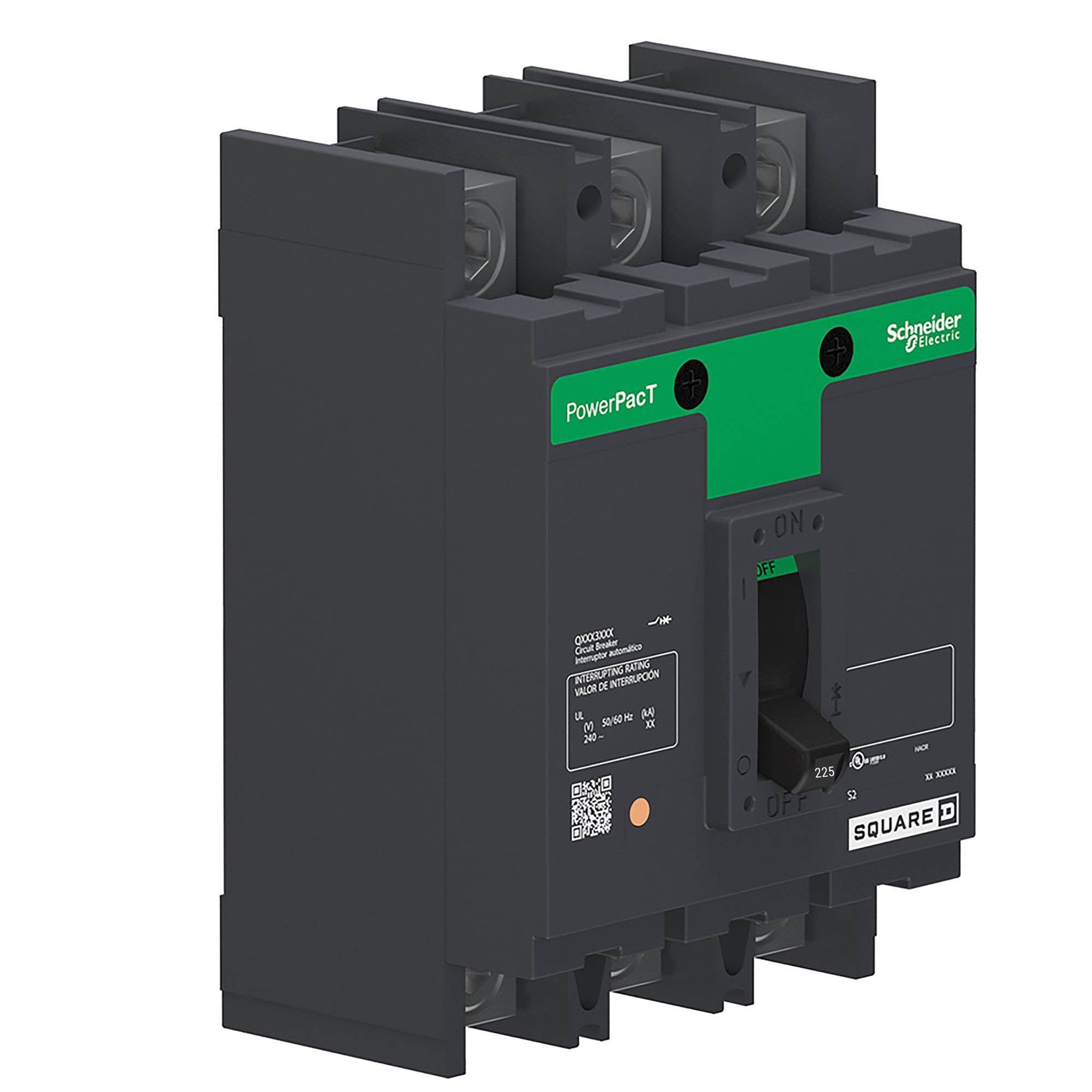

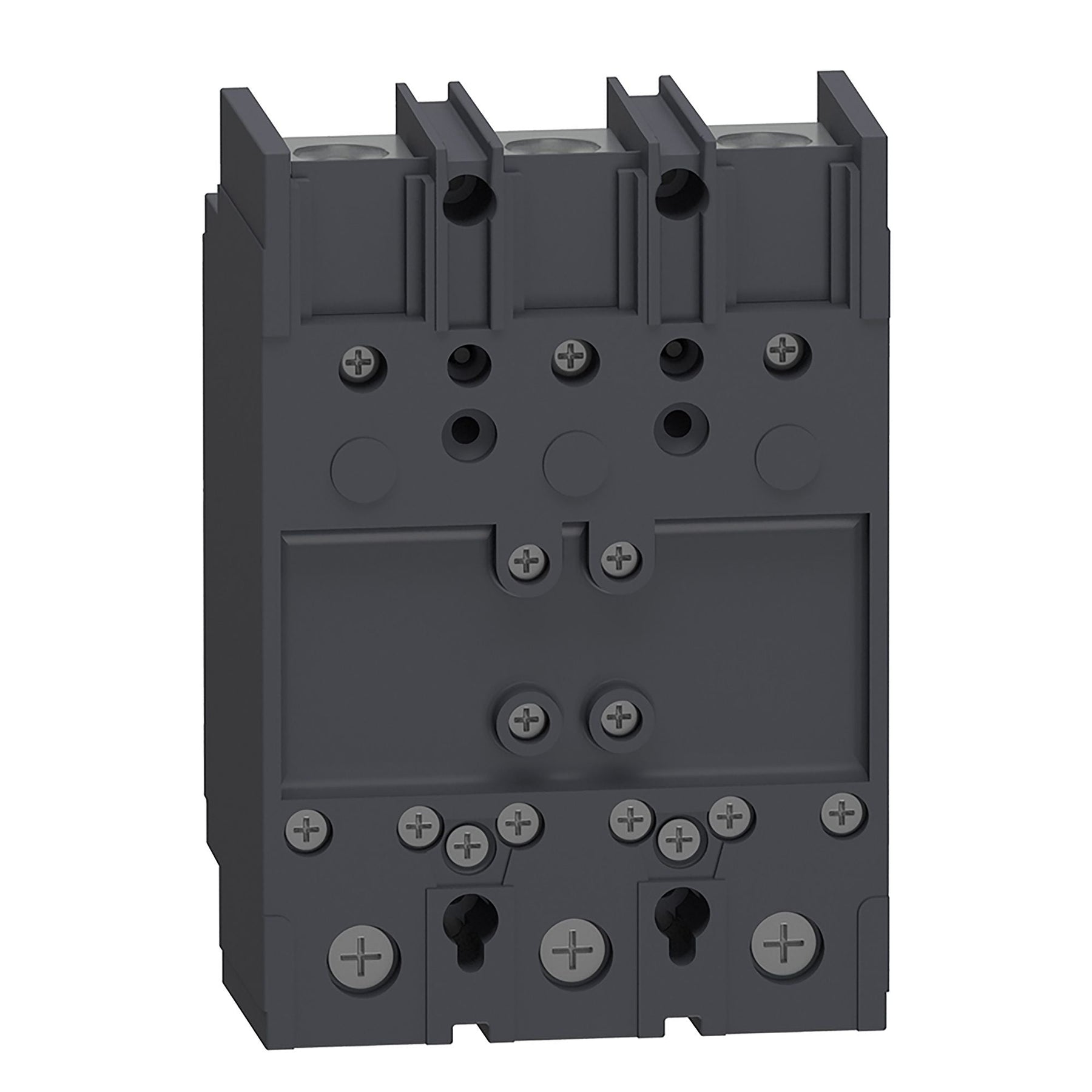

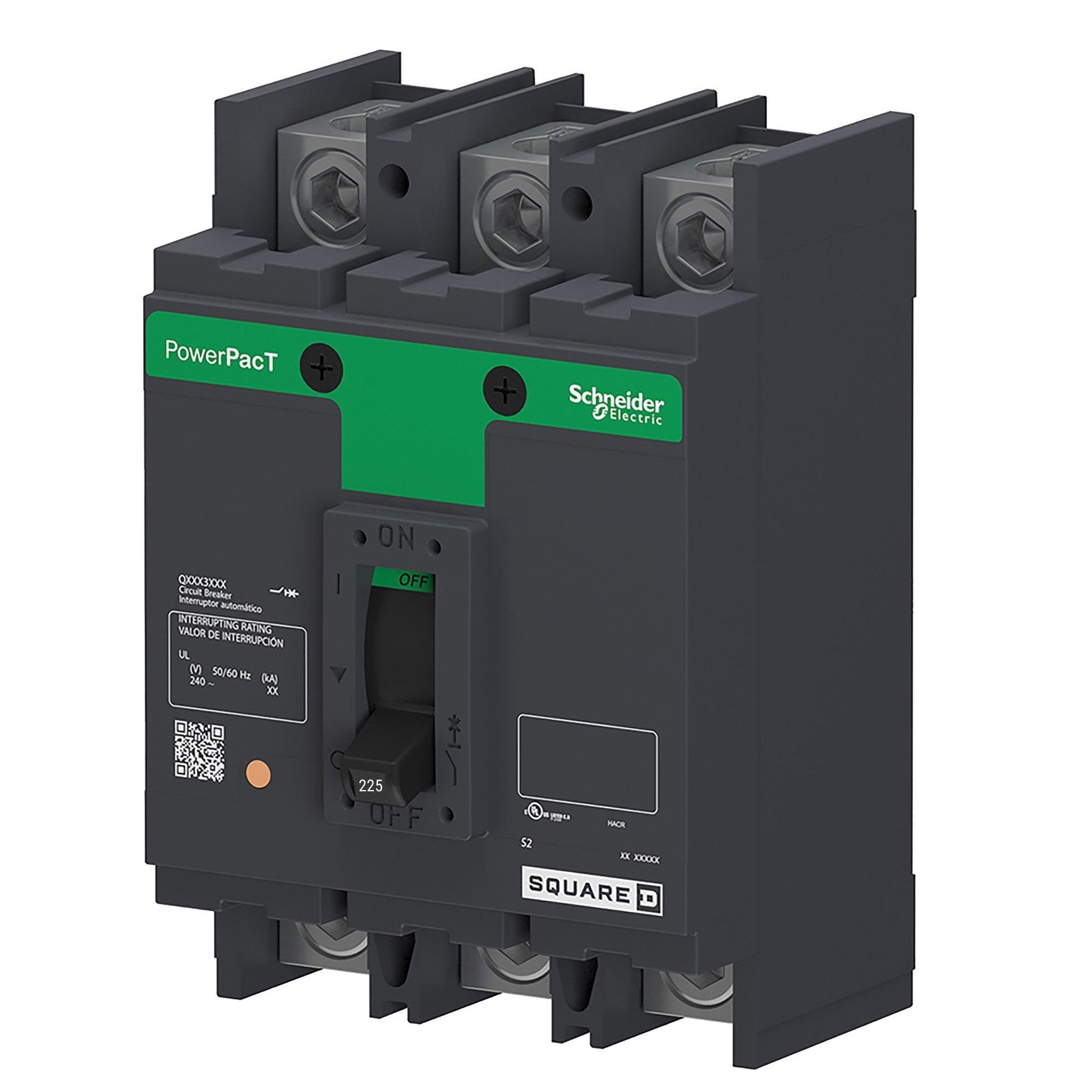

QBL32225 - Square D - Molded Case Circuit Breaker

Feed_thru - 225 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QBL32225
QBL32225 - Square D 225 Amp 3 Pole 240 Volt Thermal Magnetic Molded Case Circuit Breaker
QBL32225 - Square D - Molded Case Circuit Breaker
QBL32225 - Square D - Molded Case Circuit Breaker
QBL32225 - Square D - Molded Case Circuit Breaker

Images are for reference only

QBL32225 - Square D - Molded Case Circuit Breaker

Feed_thru - 225 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QBL32225
Regular price $1,248.00 Sale price $537.99 Save $710.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - QBL32225 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    Feed-Thru
  • Type:

    QBL
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47" x 4.5" x 3.93"
  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    225 Amp
  • Mounting Mode:

    Unit mount lug
  • Breaking Capacity Code:

    B
  • Electrical Connection:

    Lugs load/Lugs line
  • Magnetic Hold Current:

    1200 Amp
  • Continuous Current Rating:

    80%
  • Control Type:

    Operating handle

Product Description - QBL32225 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type QBL, 3P, 3PH, 225A, 240V, 10kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
